Home / Hydraulic valves / Directional control valves / Manifold directional control valves

Manifold directional control valves Parts

Danfoss

02-402774

DG4V-3-6C-M-KUP1-G7-60, DG4V36CMKUP1G760

Danfoss

02-402764

DG4V-3-6C-M-U1-H7-60-EN6 05, DG4V36CMU1H760EN605

Danfoss

02-402753

DG4V-3-6C-M-KUP7-D2-G7-6 0, DG4V36CMKUP7D2G760

Danfoss

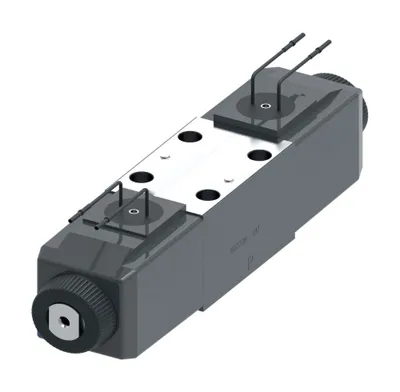

02-402750

DG4V-3-6C-M-KU-H7-60-EN5 41, DG4V36CMKUH760EN541

Danfoss

02-402749

DG4V-3-2C-M-KU-H7-60-EN5 41, DG4V32CMKUH760EN541

Danfoss

02-402748

DG4V-3-2C-M-U4-G7-60-EN4 99, DG4V32CMU4G760EN499

Danfoss

02-402722

DG4V-3-6C-H-M-KU-G7-60, DG4V36CHMKUG760

Danfoss

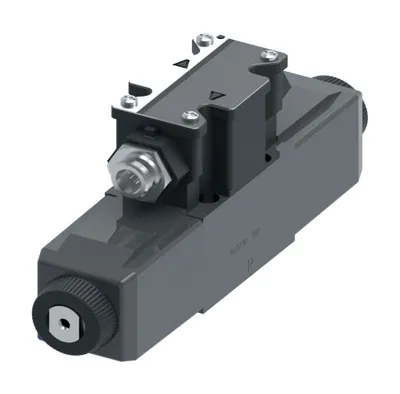

02-402714

DG4V-3-2N-M-FPM4WL-H7-60 -EN623, DG4V32NMFPM4WLH760EN623

Danfoss

02-402712

DG4V-3-2C-M-KU-G7-60-EN4 57-P13, DG4V32CMKUG760EN457P13

Danfoss

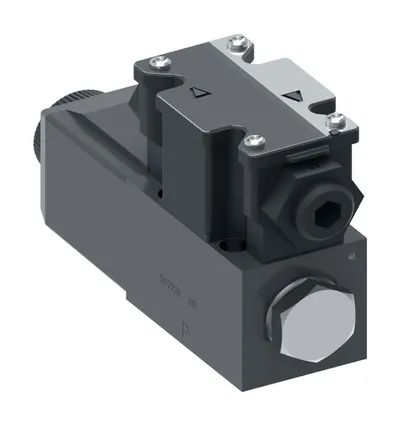

02-402704

DG4V-3-6B-M-FW-BL6-60, DG4V36BMFWBL660

Danfoss

02-402646

DG4V-3-2C-M-KU-G7-60-EN4 57-A18, DG4V32CMKUG760EN457A18

Danfoss

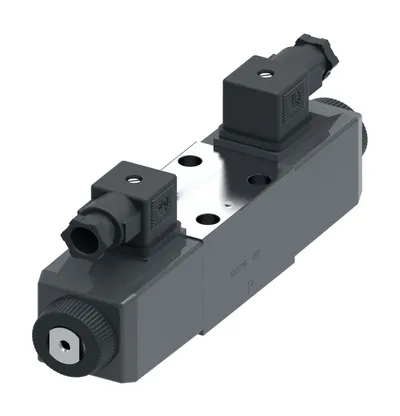

02-402645

DG4V-3-6C-M-U1-H7-60-EN5 0, DG4V36CMU1H760EN50

Danfoss

02-402642

DG4V-3-6C-M-U1-G7-60-EN5 0, DG4V36CMU1G760EN50

Danfoss

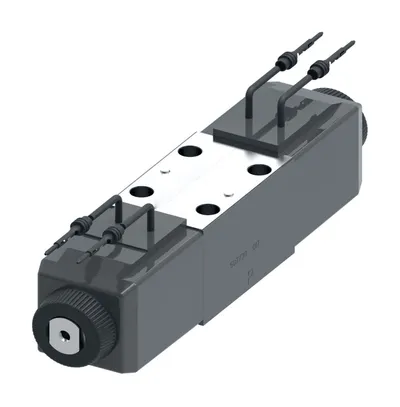

02-402641

DG4V-3-33C-M-KUP7-D2-G7-60, DG4V333CMKUP7D2G760

Danfoss

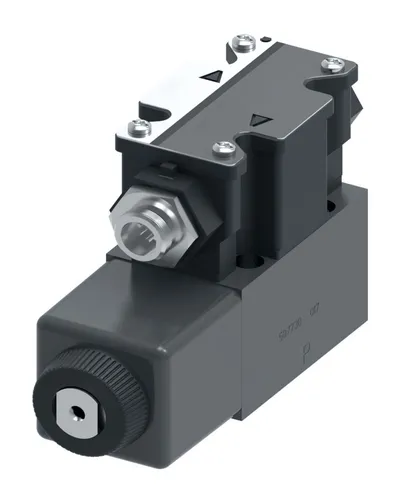

02-402640

DG4V-3-2A-M-FPM4WL-H7-60, DG4V32AMFPM4WLH760

Danfoss

02-402639

DG4V-3-2N-H-M-FW-H7-60, DG4V32NHMFWH760

Danfoss

02-402638

DG4V-3-33C-M-KUP7-D2-G7- 60-EN534, DG4V333CMKUP7D2G760EN534

Danfoss

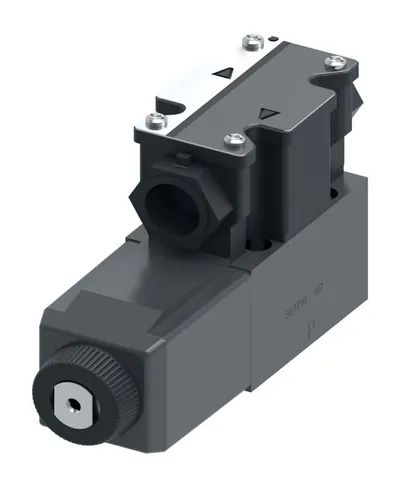

02-402637

DG4V-3-2A-M-FW-H7-60-EN6 14, DG4V32AMFWH760EN614

Danfoss

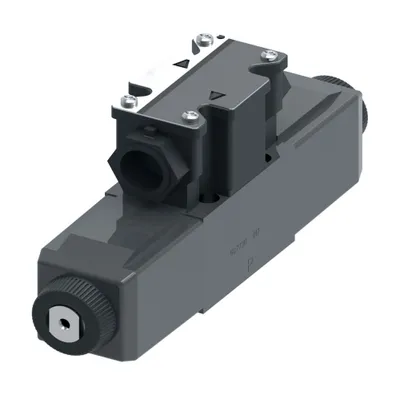

02-402636

DG4V-3-8C-VM-FW-H7-61-EN 614, DG4V38CVMFWH761EN614

Danfoss

02-402635

DG4V-3-2C-M-FW-H7-60-EN6 14, DG4V32CMFWH760EN614

Danfoss

02-402634

DG4V-3-6C-M-FW-H7-60-EN6 14, DG4V36CMFWH760EN614

Danfoss

02-402585

KDG4V-3S-2C08N-M-KU-G7-6 0-EN725, KDG4V3S2C08NMKUG760EN725

Danfoss

02-402546

DG4V-3M-2A-M-KUP5-G7-65- EN699, DG4V3M2AMKUP5G765

Danfoss

02-402544

KDG4V-3-2C19S-M-KUP6-G7- 60-EN726, KDG4V32C19SMKUP6G760EN726

Compare Manifold directional control valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Electrical Connection	Model Code 1	Product length in	Product length mm	Spool Type
02-402774	Top exit flying lead	DG4V36CMKUP1G760	8.660	219.964	Spool 6
02-402764	ISO4400 with fitted plugs	DG4V36CMU1H760EN605	8.660	219.964	Spool 6
02-402753	Packard connector pins (male)	DG4V36CMKUP7D2G760	8.660	219.964	Spool 6
02-402750	Top exit flying lead	DG4V36CMKUH760EN541	8.660	219.964	Spool 6
02-402749	Top exit flying lead	DG4V32CMKUH760EN541	8.660	219.964	Spool 2
02-402748	Surge suppression	DG4V32CMU4G760EN499	8.660	219.964	Spool 2
02-402722	Top exit flying lead	DG4V36CHMKUG760	8.660	219.964	Spool 6
02-402714	4-Pin Brad Harrison connector	DG4V32NMFPM4WLH760EN623	8.660	219.964	Spool 2
02-402712	Top exit flying lead	DG4V32CMKUG760EN457P13	8.660	219.964	Spool 2
02-402704	Flying lead 1/2" NPT housing	DG4V36BMFWBL660	5.750	146.050	Spool 6
02-402646	Top exit flying lead	DG4V32CMKUG760EN457A18	8.660	219.964	Spool 2
02-402645	ISO4400 with fitted plugs	DG4V36CMU1H760EN50	8.660	219.964	Spool 6
02-402642	ISO4400 with fitted plugs	DG4V36CMU1G760EN50	8.660	219.964	Spool 6
02-402641	Packard connector pins (male)	DG4V333CMKUP7D2G760	8.660	219.964	Spool 33
02-402640	4-pin connector	DG4V32AMFPM4WLH760	6.140	155.956	Spool 2
02-402639	Flying lead 1/2" NPT housing	DG4V32NHMFWH760	6.140	155.956	Spool 2
02-402638	Packard connector pins (male)	DG4V333CMKUP7D2G760EN534	8.660	219.964	Spool 33
02-402637	Flying lead 1/2" NPT housing	DG4V32AMFWH760EN614	6.140	155.956	Spool 2
02-402636	Flying lead 1/2" NPT housing	DG4V38CVMFWH761EN614	8.660	219.964	Spool 8
02-402635	Flying lead 1/2" NPT housing	DG4V32CMFWH760EN614	8.660	219.964	Spool 2
02-402634	Flying lead 1/2" NPT housing	DG4V36CMFWH760EN614	8.660	219.964	Spool 6
02-402585	Top exit flying lead	KDG4V3S2C08NMKUG760EN725	9.370	237.998	ISO4401-10/NFPA D10/CETOP 10/NG32
02-402546	Moulded Deutsch connector	DG4V3M2AMKUP5G765	5.830	148.082	Spool 2
02-402544	Flying lead Deutsch connector	KDG4V32C19SMKUP6G760EN726	9.370	237.998	ISO4401-10/NFPA D10/CETOP 10/NG32

Common to all listed parts

Stage	Single stage
Tank port rating PSI	3000
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
