What is the Danfoss 02-400248?

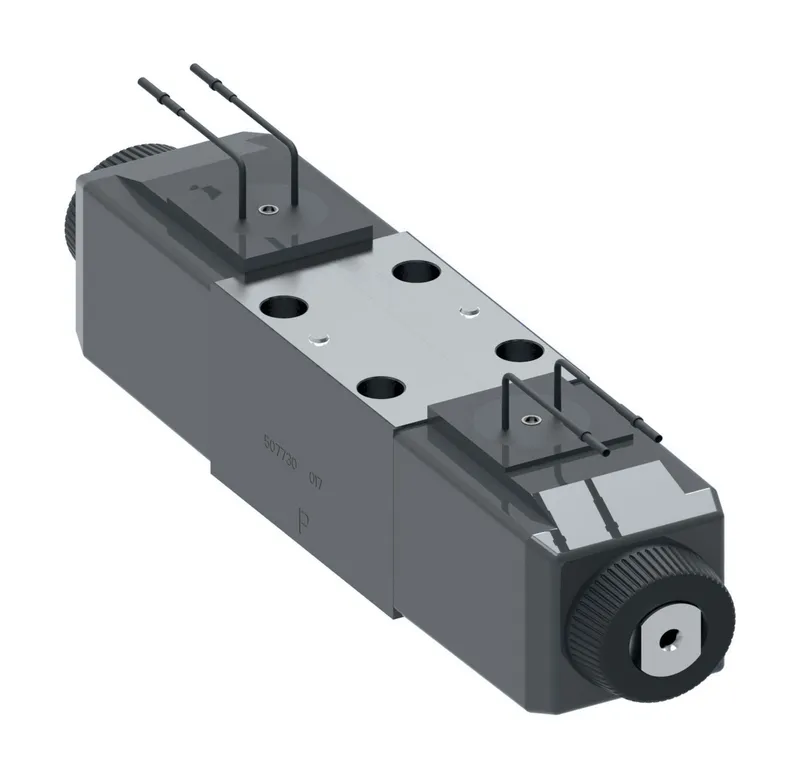

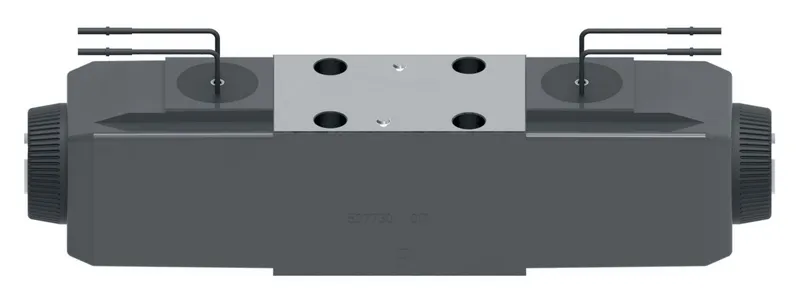

Danfoss KDG4V-3S-2C19N-VM-KU-GP7-60-EN648, KDG4V3S2C19NVMKUGP760EN648, manufacturer part number 02-400248. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A Port flow LPM19.00
A Port flow USGPM5.00
Actuation TypeSolenoid controlled
B Port flow LPM19.00
B Port flow USGPM5.00
BrandVickers by Danfoss
Build orientationSolenoid 'A' at port 'A' end of valve and solenoid 'B' at port 'B' end of valve
Build typeSpring centered
Coil voltage12 Volt DC
Command inputNone
Communication protocolNone
Design Series60 Series
Electrical ConnectionTop exit flying lead
Feedback sensorNo
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-03/NFPA D03/CETOP 3/NG06
Manual overridePlain
Maximum pressure BAR350
Maximum pressure PSI5000
MeteringMeter in / meter out
Model Code 1KDG4V3S2C19NVMKUGP760EN648
On board electronicsNo
PerformanceStandard
Product height in3.580
Product height mm90.932
Product length in8.640
Product length mm219.456
Product width in1.810
Product width mm45.974
ProFX compatibleNo
Reducer moduleNo
Reverse flow checkNo
Seal typeViton
Special featuresMobile solenoid with 6.0" leads and Deutsch male pins
Spool TypeISO4401-10/NFPA D10/CETOP 10/NG32
StageSingle stage
Symmetric flowYes
Tank port rating BAR100
Tank port rating PSI1450
Valve Mount TypeSubplate
Valve typeProportional directional
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4
