Surge suppressors Parts

Siemens

3RT2926-1JL00

Surge suppressor, varistor with LED, 127-240 V AC, 50/60 Hz

Siemens

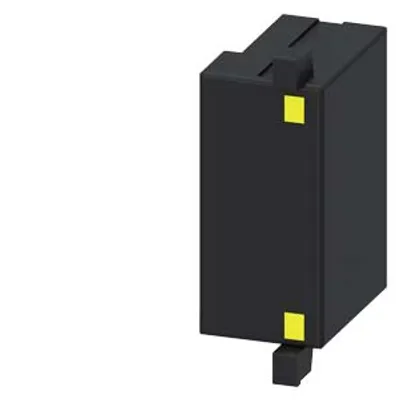

3RT2926-1JK00

Surge suppressor, varistor with LED, 48-127 V AC, 50/60 Hz

Siemens

3RT2916-1JL00

Surge suppressor, varistor with LED, 127-240 V AC, 50/60 Hz

Siemens

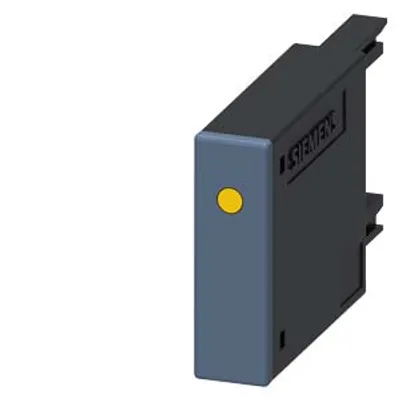

3RT2916-1JK00

Surge suppressor, varistor with LED, 48-127 V AC, 50/60 Hz

Siemens

3RT2916-1JJ00

Surge suppressor, varistor with LED, 24-48 V AC, 50/60 Hz

Siemens

3RT2916-1BC00

Surge suppressor, varistor, 48-127 V AC, 50/60 Hz

Siemens

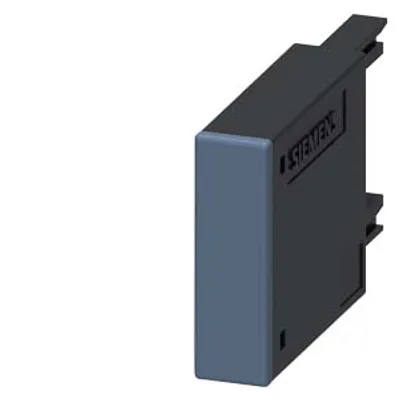

3RT2916-1CF00

Surge suppressor, RC element, 400-600 V AC, 50/60 Hz

Siemens

3RT2916-1CE00

Surge suppressor, RC element, 240-400 V AC, 50/60 Hz

Siemens

3RT2916-1CD00

Surge suppressor, RC element, 127-240 V AC, 50/60 Hz

Siemens

3RT2926-1CB00

Surge suppressor, RC element, 24-48 V AC, 50/60 Hz

Siemens

3RT2926-1BF00

Surge suppressor, varistor, 400-600 V AC, 50/60 Hz

Siemens

3RT2926-1BE00

Surge suppressor, varistor, 240-400 V AC, 50/60 Hz

Siemens

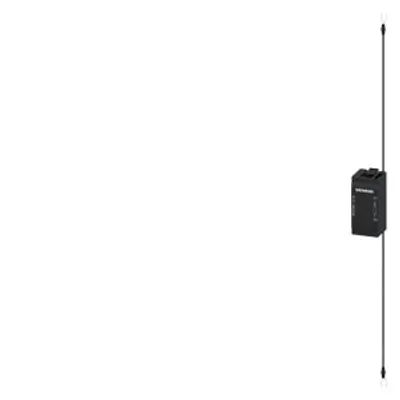

3RT2946-1CD00

Surge suppressor, RC element, 127-240 V AC, 50/60 Hz

Siemens

3RT2946-1CC00

Surge suppressor, RC element, 48-127 V AC, 50/60 Hz

Siemens

3RT2946-1CB00

Surge suppressor, RC element, 24-48 V AC, 50/60 Hz

Siemens

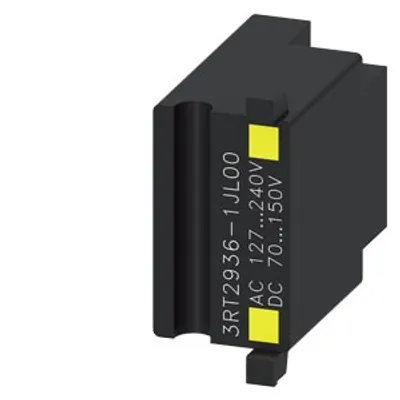

3RT2936-1JL00

Surge suppressor, varistor with LED, 127-240 V AC, 50/60 Hz

Siemens

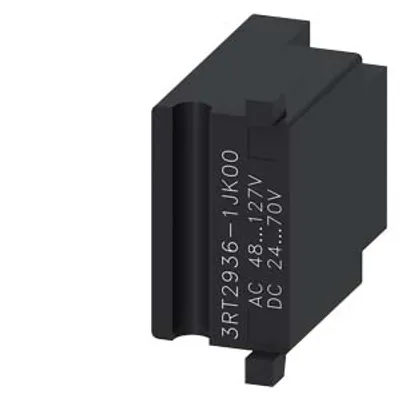

3RT2936-1JK00

Surge suppressor, varistor with LED, 48-127 V AC, 50/60 Hz

Siemens

3RT2936-1JJ00

Surge suppressor, varistor with LED, 24-48 V AC, 50/60 Hz

Siemens

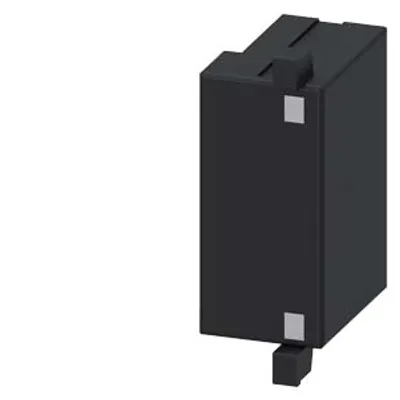

3RT2926-1BD00

Surge suppressor, varistor, 127-240 V AC, 50/60 Hz

Siemens

3RT2926-1BC00

Surge suppressor, varistor, 48-127 V AC, 50/60 Hz

Siemens

3RT2926-1BB00

Surge suppressor, varistor, 24-48 V AC, 50/60 Hz

Compare Surge suppressors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	size of contactor	Net Weight	control supply voltage at AC — at 50 Hz rated value	control supply voltage at AC — at 60 Hz rated value	height
3RT2926-1JL00	S0	0.005 kg	127 ... 240 V	127 ... 240 V	19 mm
3RT2926-1JK00	S0	0.005 kg	—	—	19 mm
3RT2916-1JL00	S00	7 g	127 ... 240 V	127 ... 240 V	46 mm
3RT2916-1JK00	S00	7 g	—	—	46 mm
3RT2916-1JJ00	S00	0.007 g	—	—	46 mm
3RT2916-1BC00	S00	0.006 kg	48 ... 127 V	48 ... 127 V	46 mm
3RT2916-1CF00	S00	0.007 kg	400 ... 600 V	400 ... 600 V	46 mm
3RT2916-1CE00	S00	5 g	240 ... 400 V	240 ... 400 V	46 mm
3RT2916-1CD00	S00	0.007 kg	127 ... 240 V	127 ... 240 V	46 mm
3RT2926-1CB00	S0	5 g	24 ... 48 V	24 ... 48 V	19 mm
3RT2926-1BF00	S0	0.007 kg	400 ... 600 V	400 ... 600 V	19 mm
3RT2926-1BE00	S0	0.005 kg	240 ... 400 V	240 ... 400 V	19 mm
3RT2946-1CD00	S3	0.05 kg	127 ... 240 V	127 ... 240 V	55 mm
3RT2946-1CC00	S3	0.05 kg	48 ... 127 V	48 ... 127 V	55 mm
3RT2946-1CB00	S3	0.05 kg	24 ... 48 V	24 ... 48 V	55 mm
3RT2936-1JL00	S2, S3	0.006 kg	127 ... 240 V	127 ... 240 V	30 mm
3RT2936-1JK00	S2, S3	0.006 kg	48 ... 127 V	48 ... 127 V	30 mm
3RT2936-1JJ00	S2, S3	0.006 kg	24 ... 48 V	24 ... 48 V	30 mm
3RT2926-1BD00	S0	4.4 g	127 ... 240 V	127 ... 240 V	19 mm
3RT2926-1BC00	S0	0.004 g	48 ... 127 V	48 ... 127 V	19 mm
3RT2926-1BB00	S0	4 g	24 ... 48 V	24 ... 48 V	19 mm

Common to all listed parts

certificate of suitability

CE / UL / CSA
