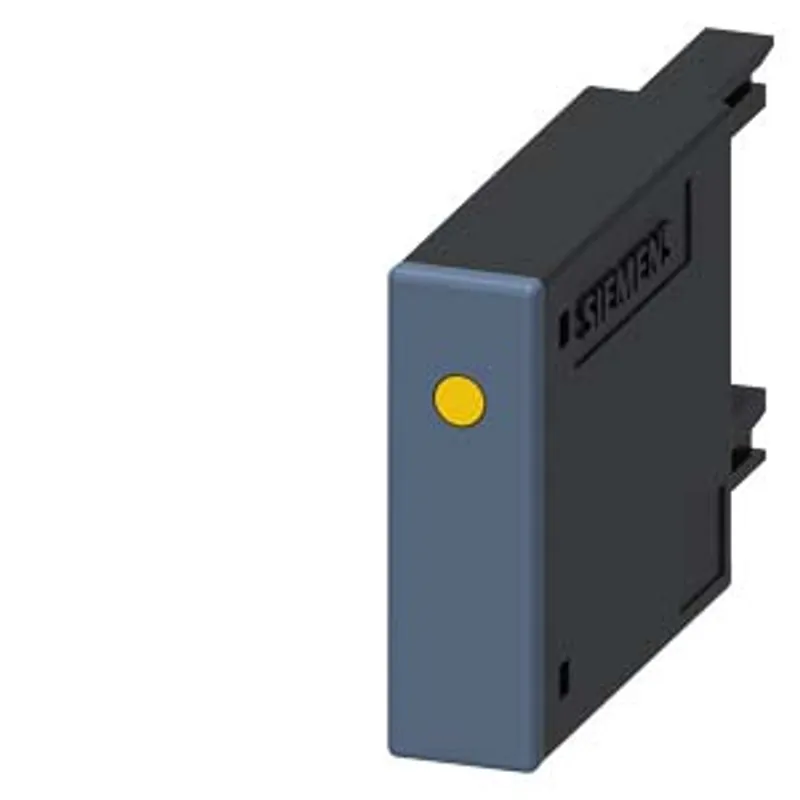

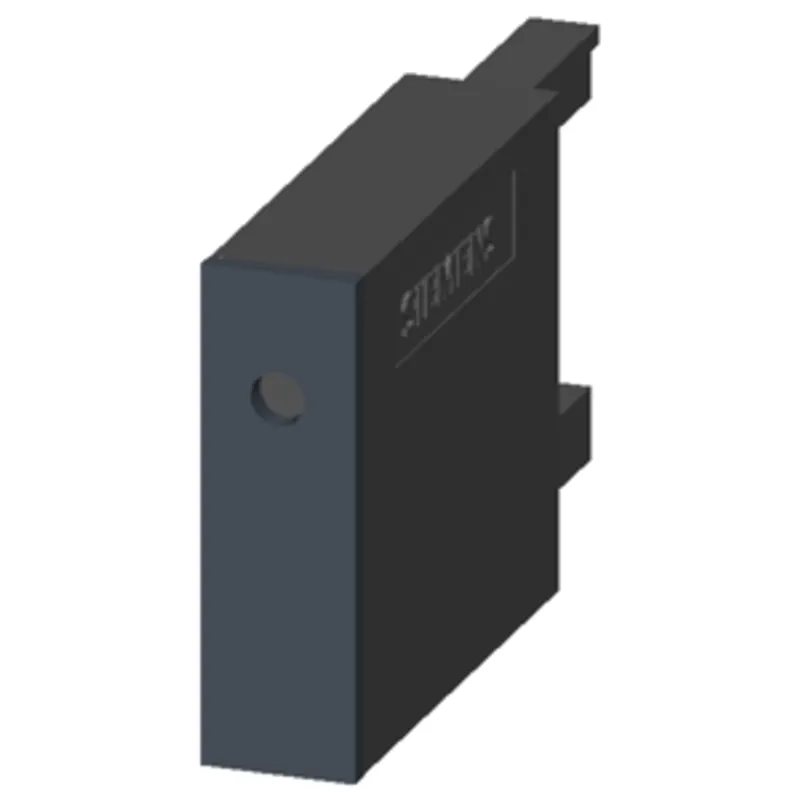

Siemens 3RT2916-1JL00

Surge suppressor, varistor with LED, 127-240 V AC, 50/60 Hz, 70-150 V DC

MPN: 3RT2916-1JL00
Category: Surge suppressors

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RT2916-1JL00?

surge suppressor, varistor with LED, 127-240 V AC, 50/60 Hz, 70-150 V DC, for contactors 3RT2.1 and auxiliary contactors 3RH2

Specifications

General

product brand name	SIRIUS
product category	Surge suppressor
product designation	Varistor with LED
product type designation	3RT29
suitability for use	for 3RT2.1 contactors and 3RH2 auxiliary contactors

General technical data

certificate of suitability	CE / UL / CSA
size of contactor	S00
Substance Prohibitance (day/month/year)	10/01/2009
Net Weight	7 g
type of voltage of the control supply voltage	AC/DC
control supply voltage at AC — at 50 Hz rated value	127 ... 240 V
control supply voltage at AC — at 60 Hz rated value	127 ... 240 V
control supply voltage frequency — 1 rated value	50 Hz
control supply voltage frequency — 2 rated value	60 Hz
control supply voltage at DC rated value	70 ... 150 V

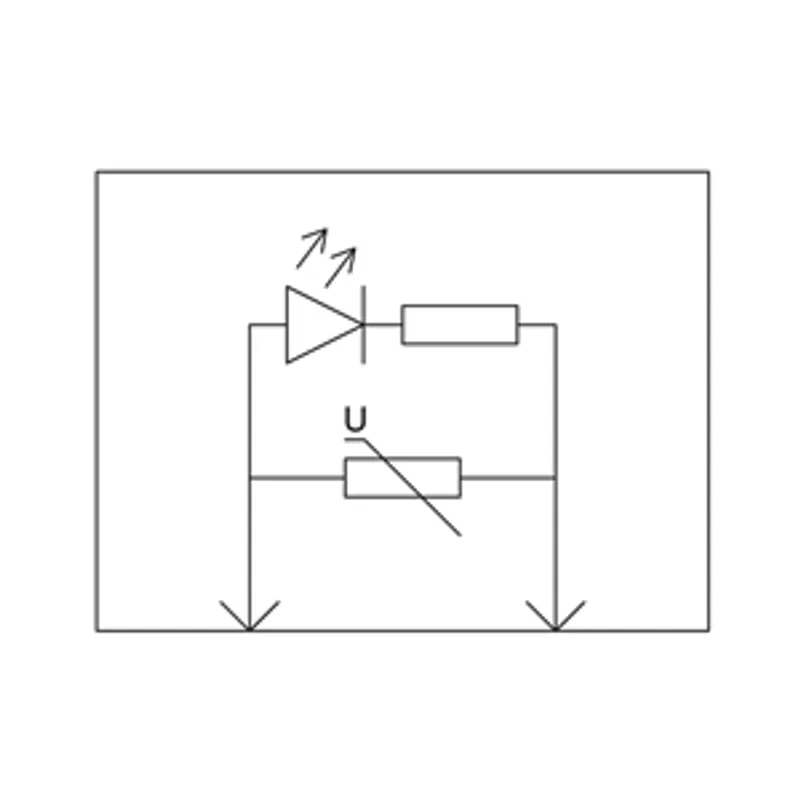

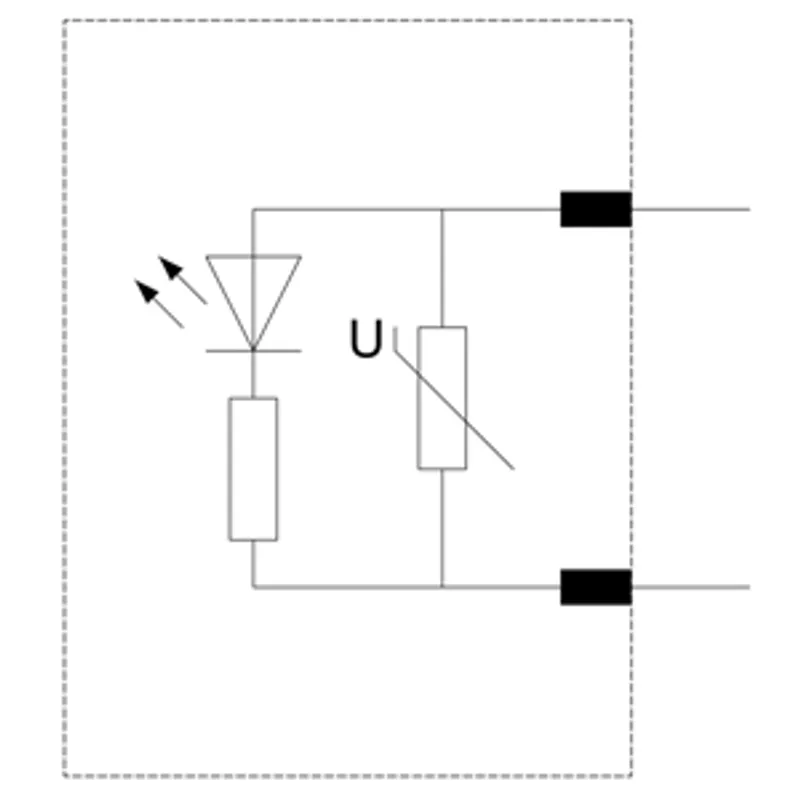

design of the surge suppressor	Varistor

Ambient conditions

ambient temperature — during operation	-25 ... +60 °C
ambient temperature — during storage	-40 ... +80 °C

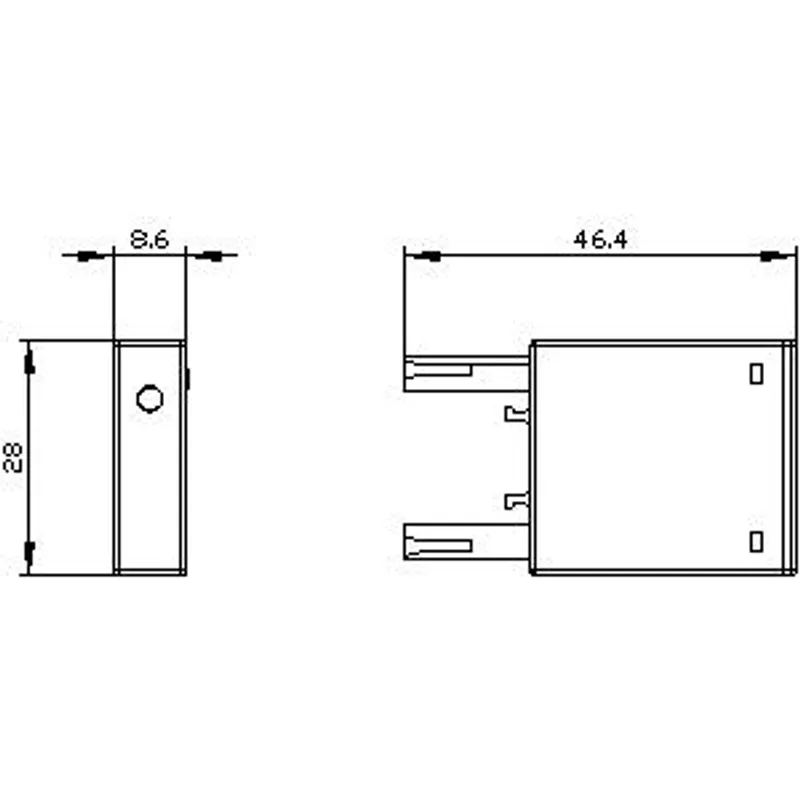

Installation/ mounting/ dimensions

mounting position	any
fastening method	clip-on
height	46 mm
width	28 mm
depth	9 mm

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing	0.0885 kg
global warming potential [CO2 eq] / during operation	6.96 kg
global warming potential [CO2 eq] / after end of life	-0.0061 kg
global warming potential [CO2 eq] / total	7.04 kg

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3RT2916-1JL00PDF
