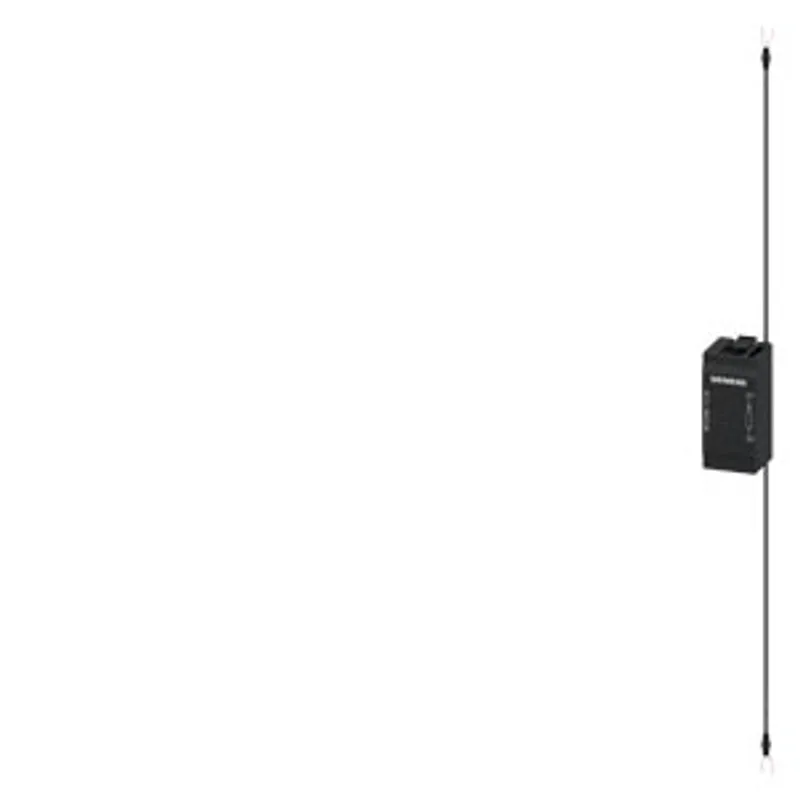

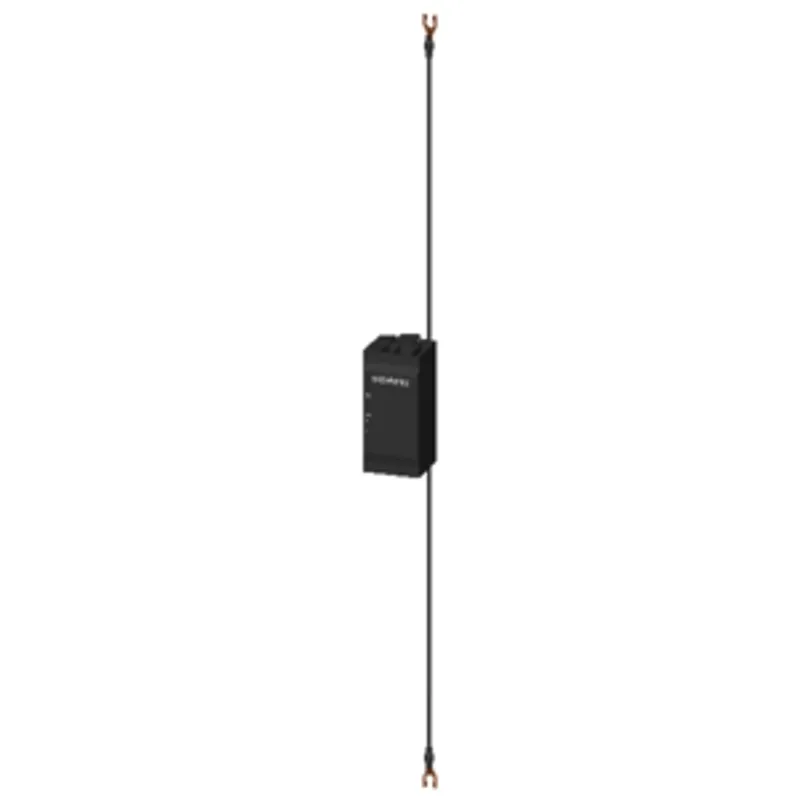

Siemens 3RT2946-1CB00
Surge suppressor, RC element, 24-48 V AC, 50/60 Hz, 24-70 V DC, for contactors 3RT2.4
- MPN
- 3RT2946-1CB00
- Category
- Surge suppressors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RT2946-1CB00?
surge suppressor, RC element, 24-48 V AC, 50/60 Hz, 24-70 V DC, for contactors 3RT2.4
Specifications
General
| product brand name | SIRIUS |
| product category | Surge suppressor |
| product designation | RC element |
| product type designation | 3RT29 |
| suitability for use | for 3RT2.4 contactors |
General technical data
| certificate of suitability | CE / UL / CSA |
| size of contactor | S3 |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 0.05 kg |
| type of voltage of the control supply voltage | AC/DC |
| control supply voltage at AC — at 50 Hz rated value | 24 ... 48 V |
| control supply voltage at AC — at 60 Hz rated value | 24 ... 48 V |
| control supply voltage frequency — 1 rated value | 50 Hz |
| control supply voltage frequency — 2 rated value | 60 Hz |
| control supply voltage at DC rated value | 24 ... 70 V |

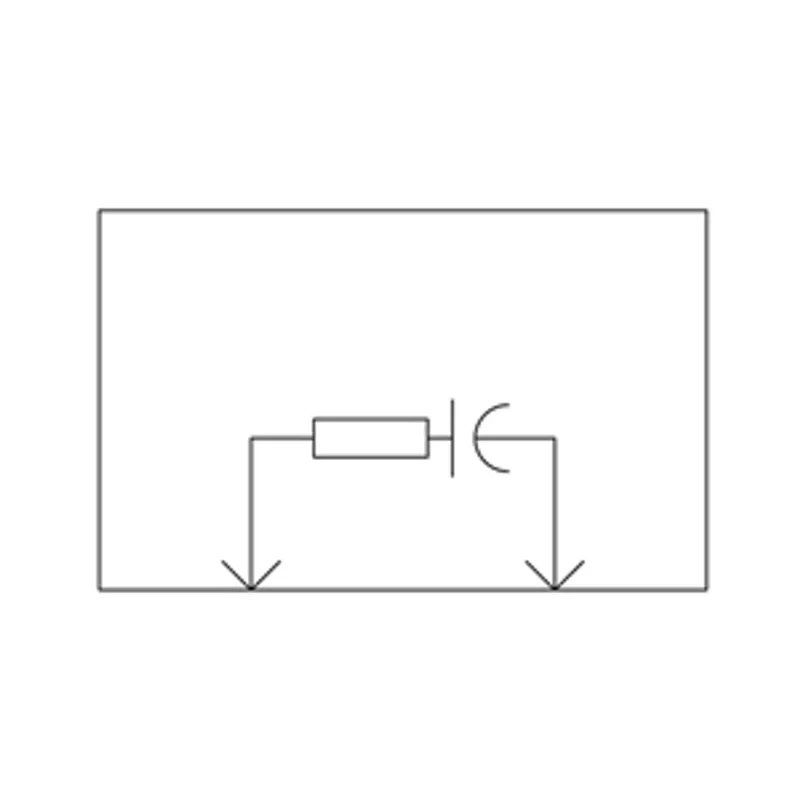

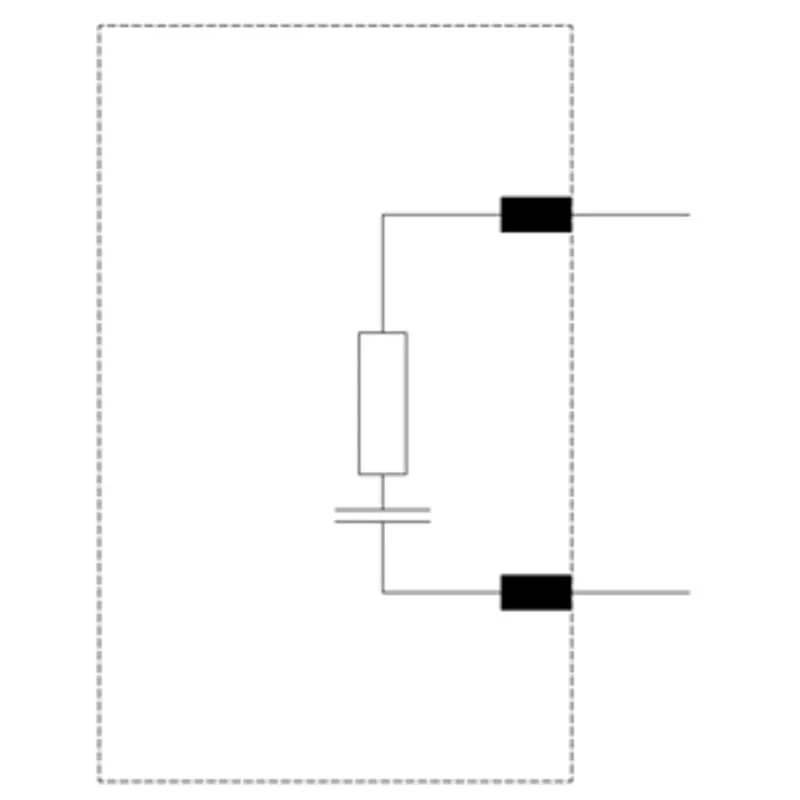

| design of the surge suppressor | RC element |
Ambient conditions
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +80 °C |
Installation/ mounting/ dimensions
| height | 55 mm |
| width | 25 mm |
| depth | 23 mm |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 0.0885 kg |
| global warming potential [CO2 eq] / during operation | 6.96 kg |
| global warming potential [CO2 eq] / after end of life | -0.0061 kg |
| global warming potential [CO2 eq] / total | 7.04 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RT2946-1CB00: frequently asked questions
When can 3RT2946-1CB00 be shipped?
3RT2946-1CB00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RT2946-1CB00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RT2946-1CB00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RT2946-1CB00, subject to availability and destination.
