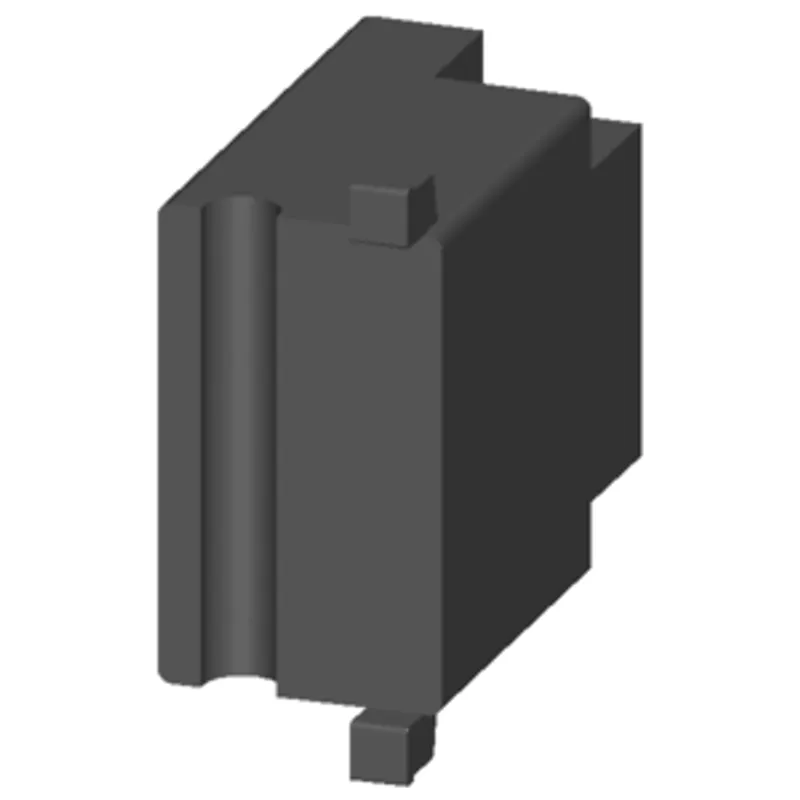

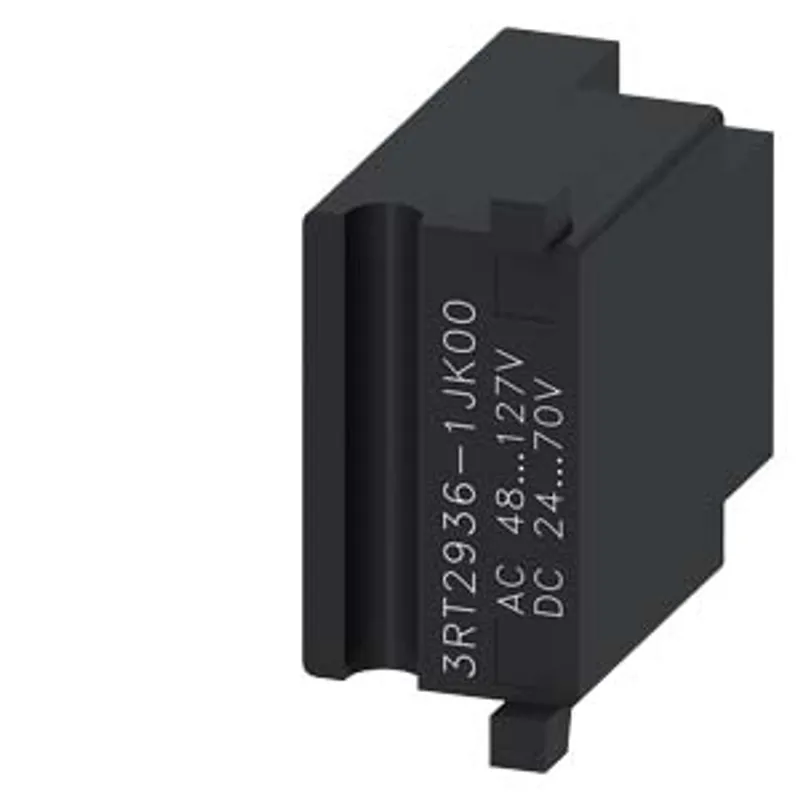

Siemens 3RT2936-1JK00
Surge suppressor, varistor with LED, 48-127 V AC, 50/60 Hz, 24-70 V DC, for contactors 3RT2.3 and 3RT2.4
- MPN
- 3RT2936-1JK00
- Category
- Surge suppressors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RT2936-1JK00?
surge suppressor, varistor with LED, 48-127 V AC, 50/60 Hz, 24-70 V DC, for contactors 3RT2.3 and 3RT2.4
Specifications
General
| product brand name | SIRIUS |
| product category | Surge suppressor |
| product designation | Varistor with LED |
| product type designation | 3RT29 |
| suitability for use | for 3RT2.3 and 3RT2.4 contactors |
General technical data
| certificate of suitability | CE / UL / CSA |
| size of contactor | S2, S3 |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| Net Weight | 0.006 kg |
| type of voltage of the control supply voltage | AC/DC |
| control supply voltage at AC — at 50 Hz rated value | 48 ... 127 V |
| control supply voltage at AC — at 60 Hz rated value | 48 ... 127 V |
| control supply voltage frequency — 1 rated value | 50 Hz |
| control supply voltage frequency — 2 rated value | 60 Hz |
| control supply voltage at DC rated value | 24 ... 70 V |

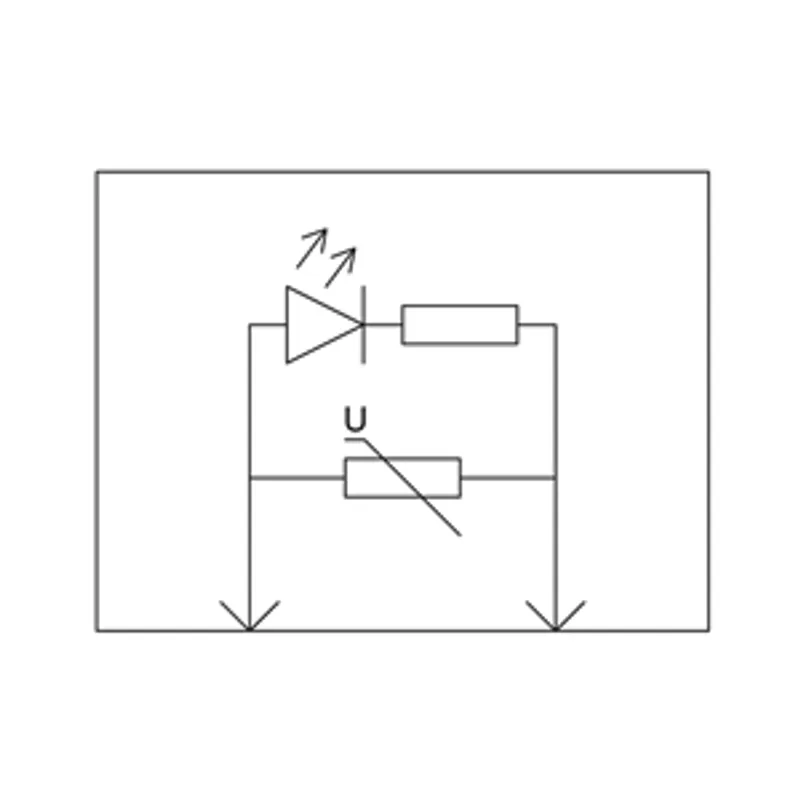

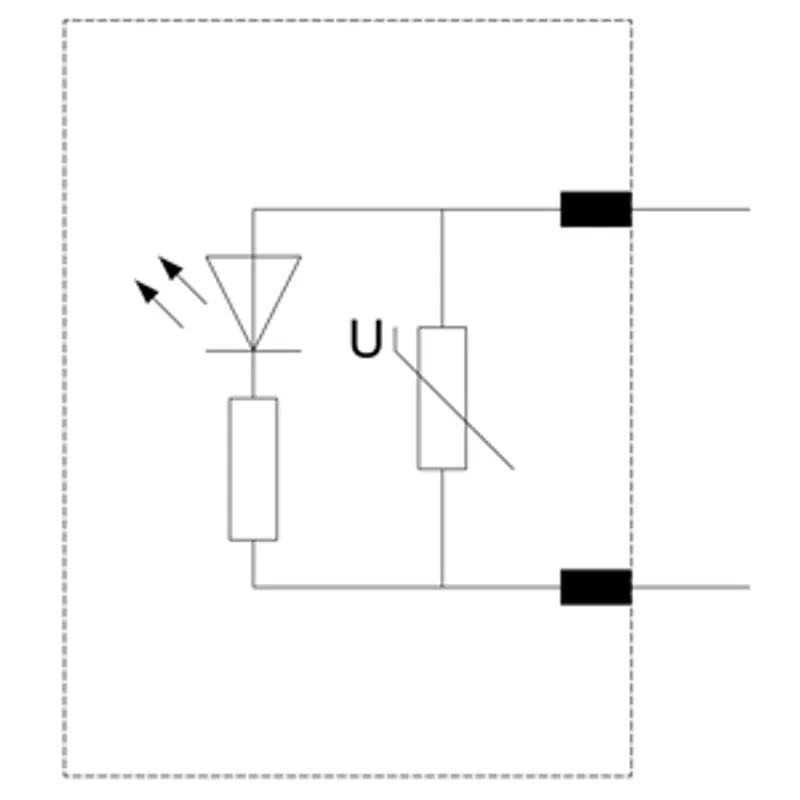

| design of the surge suppressor | Varistor with LED |
Ambient conditions
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +80 °C |

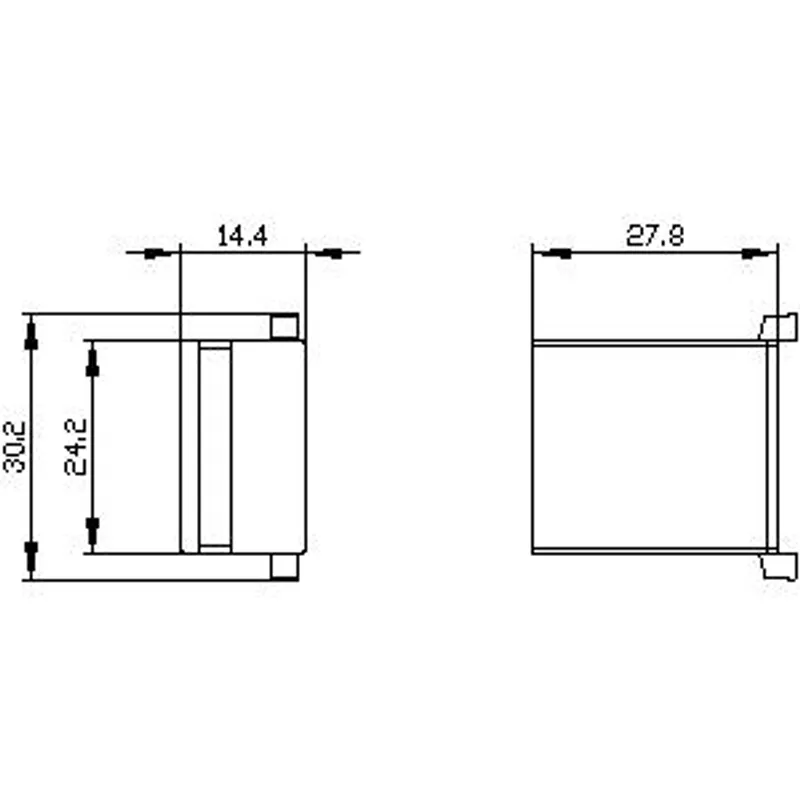

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | clip-on |
| height | 30 mm |
| width | 30 mm |
| depth | 15 mm |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 0.0885 kg |
| global warming potential [CO2 eq] / during operation | 6.96 kg |
| global warming potential [CO2 eq] / after end of life | -0.0061 kg |
| global warming potential [CO2 eq] / total | 7.04 kg |
