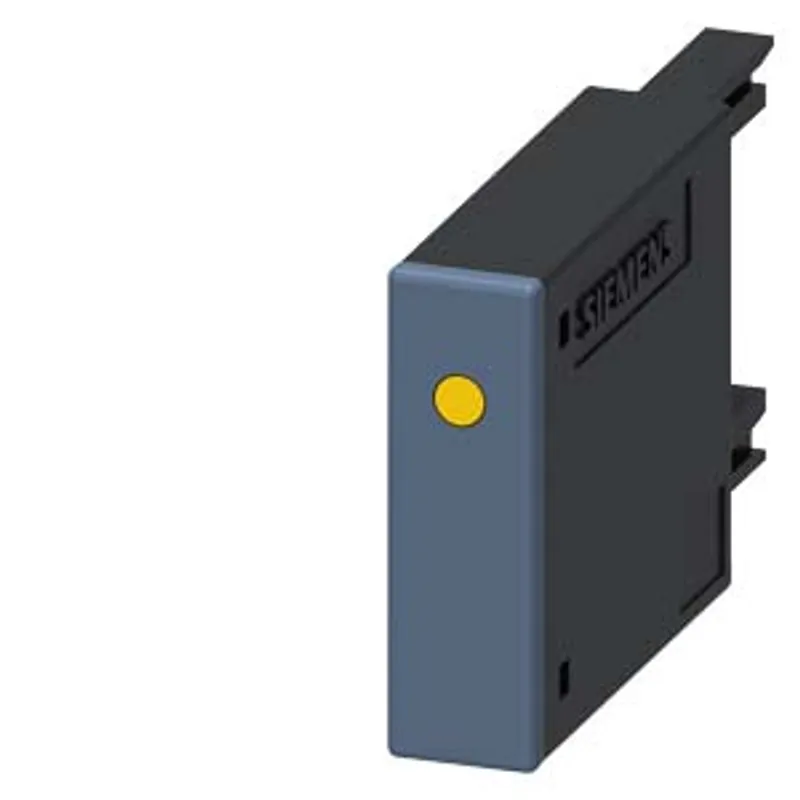

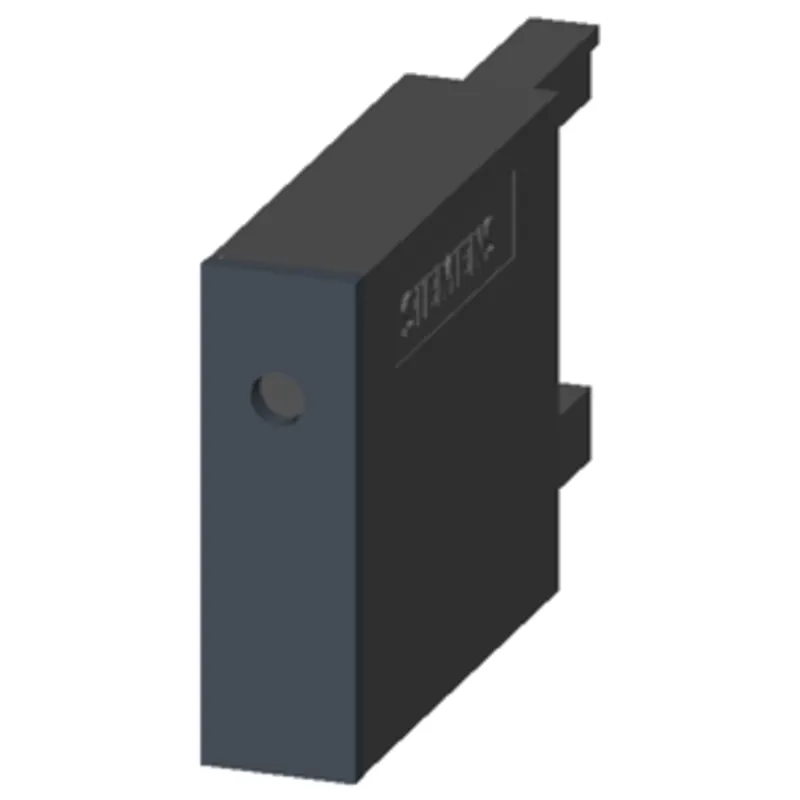

Siemens 3RT2916-1JK00
Surge suppressor, varistor with LED, 48-127 V AC, 50/60 Hz, 24-70 V DC
- MPN
- 3RT2916-1JK00
- Category
- Surge suppressors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RT2916-1JK00?
surge suppressor, varistor with LED, 48-127 V AC, 50/60 Hz, 24-70 V DC, for contactors 3RT2.1 and auxiliary contactors 3RH2
Specifications
General technical data
| certificate of suitability | CE / UL / CSA |
| size of contactor | S00 |
| Substance Prohibitance (day/month/year) | 10/01/2009 |
| Net Weight | 7 g |
| type of voltage of the control supply voltage | AC/DC |
| control supply voltage at AC – at 50 Hz rated value | 48 ... 127 V |
| control supply voltage at AC – at 60 Hz rated value | 48 ... 127 V |
| control supply voltage frequency – 1 rated value | 50 Hz |
| control supply voltage frequency – 2 rated value | 60 Hz |
| control supply voltage at DC rated value | 24 ... 70 V |
| design of the surge suppressor | Varistor |
Ambient conditions
| ambient temperature – during operation | -25 ... +60 °C |
| ambient temperature – during storage | -40 ... +80 °C |
Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | clip-on |

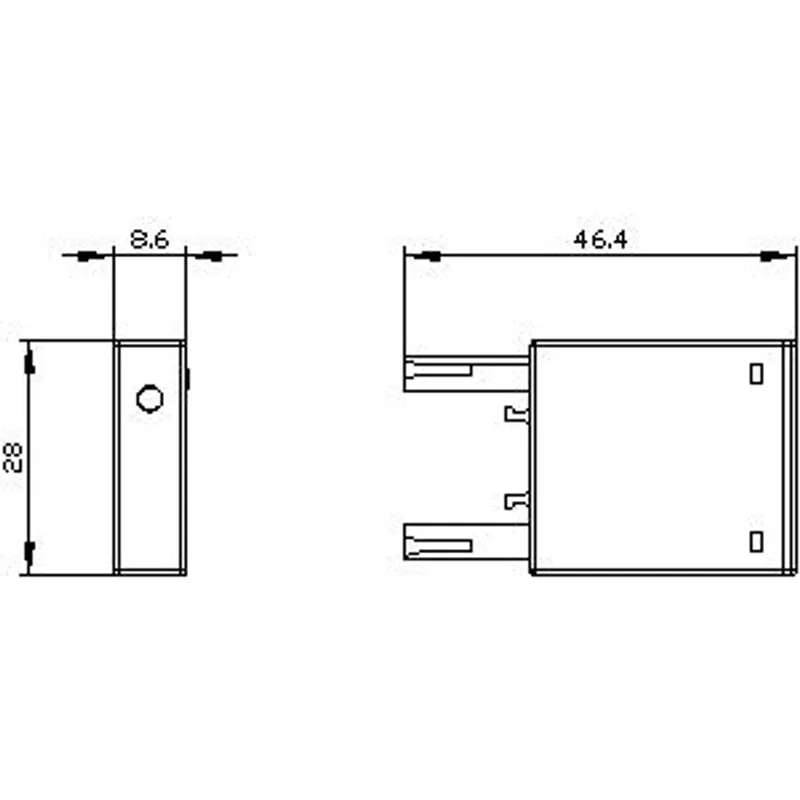

| height | 46 mm |
| width | 28 mm |
| depth | 9 mm |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RT2916-1JK00: frequently asked questions
When can 3RT2916-1JK00 be shipped?
3RT2916-1JK00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RT2916-1JK00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RT2916-1JK00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RT2916-1JK00, subject to availability and destination.
