ALPHA 160 Parts
Compare ALPHA 160
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | number of DIN mounting bars | number of rows | width | number of modular width units | Net Weight |
|---|---|---|---|---|---|

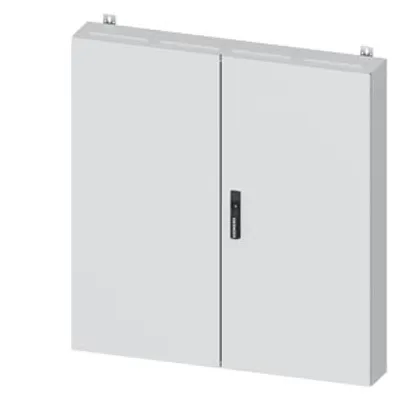

| 8GK1052-5KK41 | 28 | 28 | 1 050 mm | 336 | 44.5 kg |

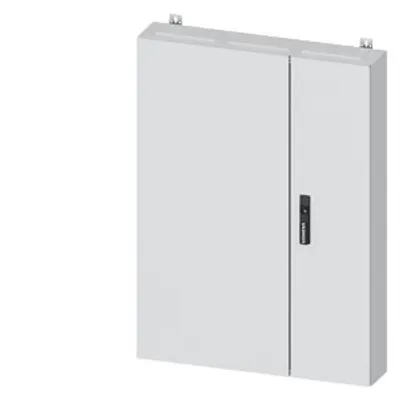

| 8GK1052-5KK31 | 21 | 21 | 800 mm | 252 | 34.5 kg |

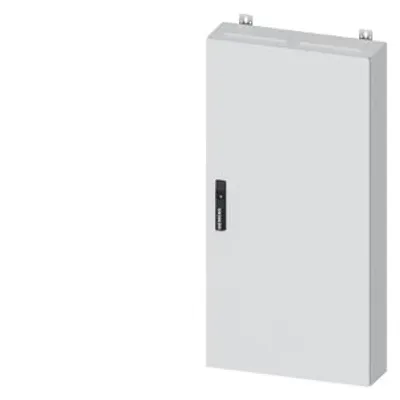

| 8GK1052-5KK21 | 14 | 14 | 550 mm | 168 | 25.5 kg |

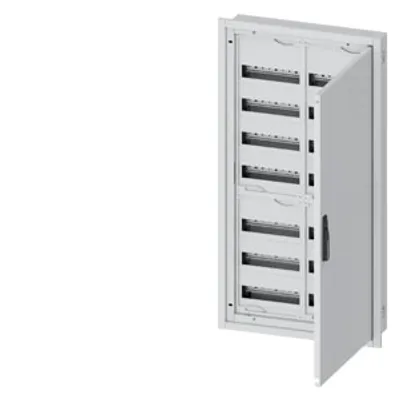

| 8GK1051-5KK20 | 14 | 14 | 597 mm | 168 | 27 kg |

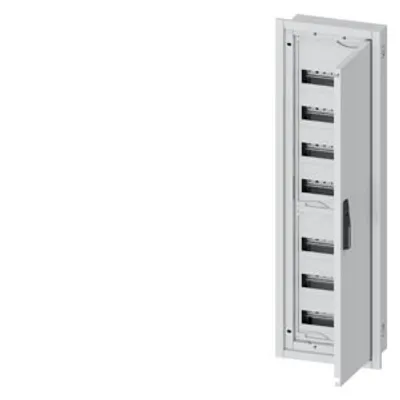

| 8GK1051-5KK10 | 7 | 7 | 347 mm | 84 | 12.69 kg |

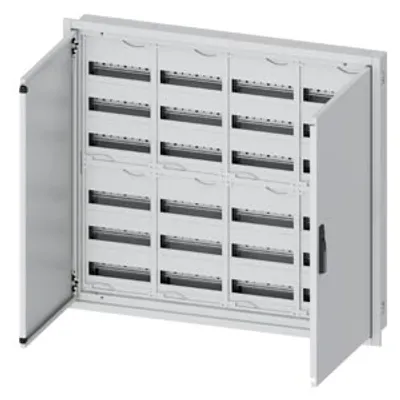

| 8GK1051-4KK40 | 24 | 6 | 1 097 mm | 72 | 38.37 kg |

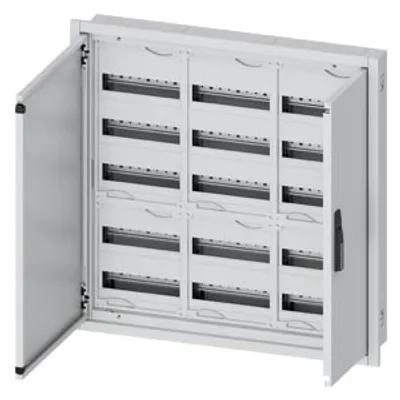

| 8GK1051-3KK30 | 15 | 15 | 847 mm | 180 | 24.62 kg |

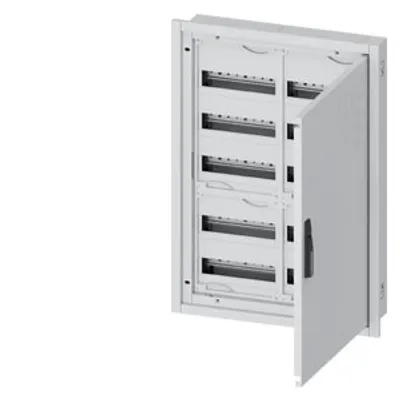

| 8GK1051-3KK20 | 10 | 10 | 597 mm | 120 | 19.87 kg |

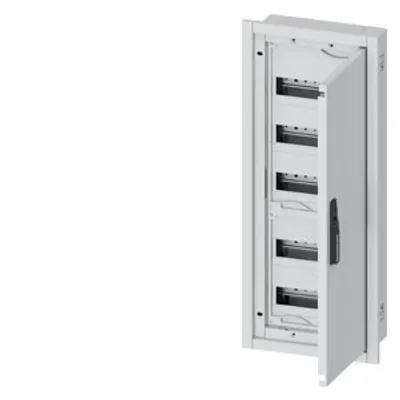

| 8GK1051-3KK10 | 5 | 5 | 347 mm | 60 | 12.9 kg |

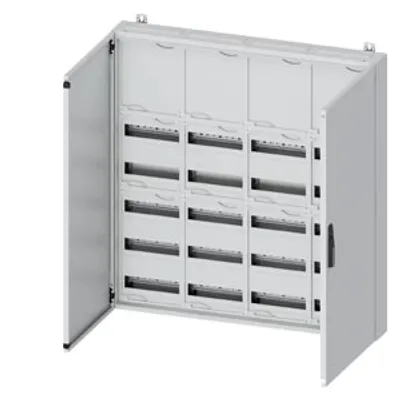

| 8GK1082-5KK41 | 20 | 28 | 1 050 mm | 336 | 43.5 kg |

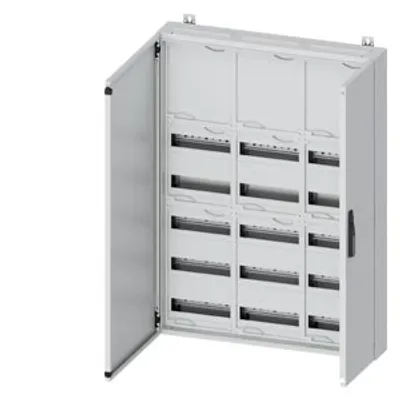

| 8GK1082-5KK31 | 15 | 21 | 800 mm | 252 | 34.5 kg |

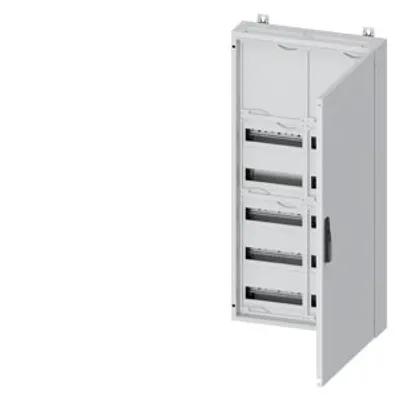

| 8GK1082-5KK21 | 10 | 14 | 550 mm | 168 | 24 kg |

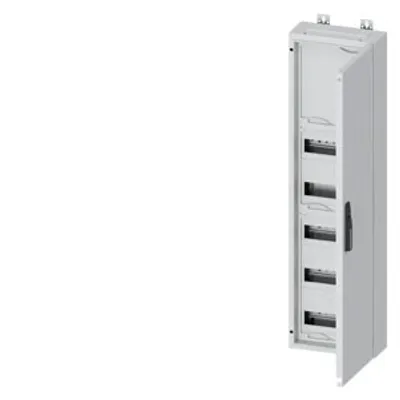

| 8GK1082-5KK11 | 5 | 7 | 300 mm | 84 | 14.4 kg |

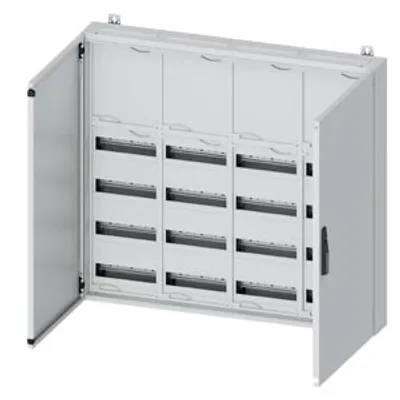

| 8GK1082-4KK41 | 16 | 6 | 1 050 mm | 72 | 38 kg |

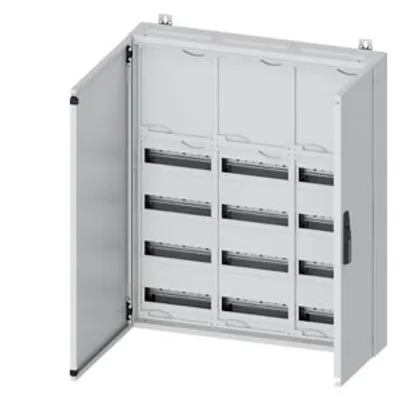

| 8GK1082-4KK31 | 12 | 6 | 800 mm | 72 | 30 kg |

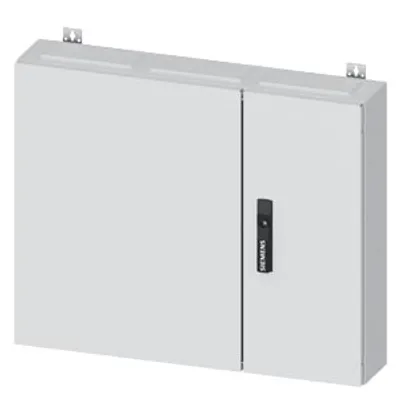

| 8GK1052-2KK31 | 12 | 12 | 800 mm | 144 | 18.6 kg |

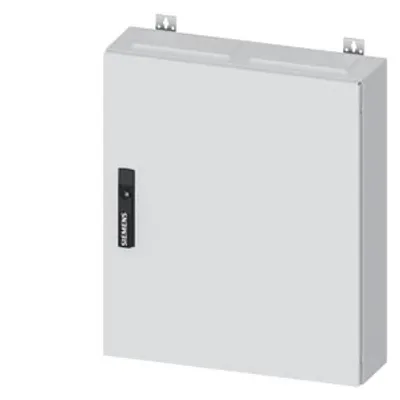

| 8GK1052-2KK21 | 8 | 8 | 550 mm | 96 | 13.78 kg |

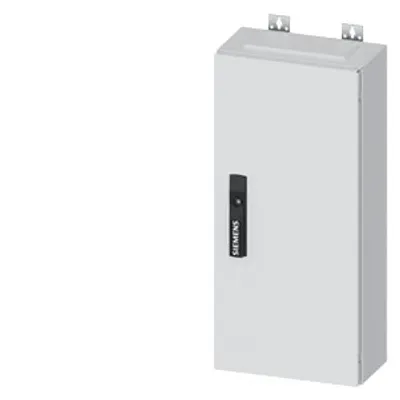

| 8GK1052-2KK11 | 4 | 4 | 300 mm | 48 | 8.635 kg |

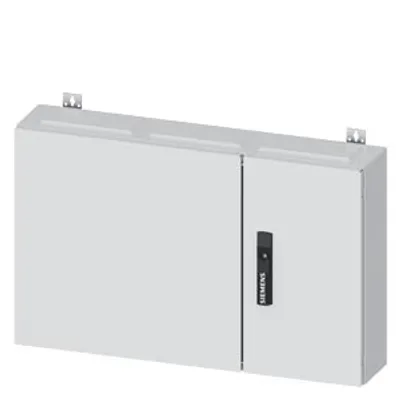

| 8GK1052-1KK31 | 9 | 9 | 800 mm | 108 | 15 kg |

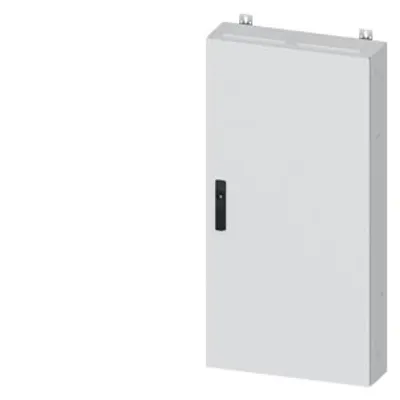

| 8GK1032-5KK21 | — | 14 | 550 mm | 168 | 18 000 g |

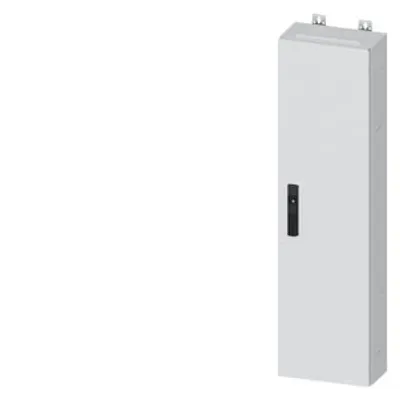

| 8GK1032-5KK11 | — | 7 | 300 mm | 84 | 10.78 kg |

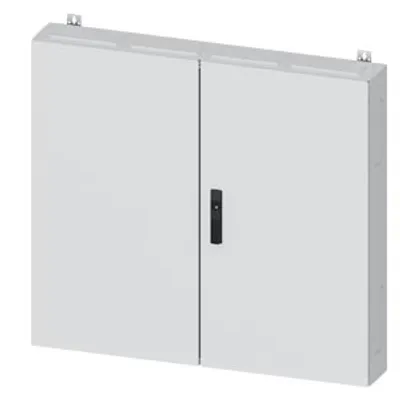

| 8GK1032-4KK41 | — | 24 | 1 050 mm | 288 | 28 kg |
Common to all listed parts
| product designation | Wall-mounted cabinet |
| surface processing | powder-coated |
| operating resource protection class | Safety class 2 |
| IK protection class | IK08 |
| suitability for use for outside use | No |
| RAL color number | 9 016 |
| product component — cable entry | Yes |
| product component — mounting plate | No |
