Siemens

Siemens 8GK1052-2KK21

ALPHA 160, wall-mounted cabinet, Surface mounting, with distribution board panel, IP44, Protection class 2

MPN: 8GK1052-2KK21
Category: ALPHA 160

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 8GK1052-2KK21?

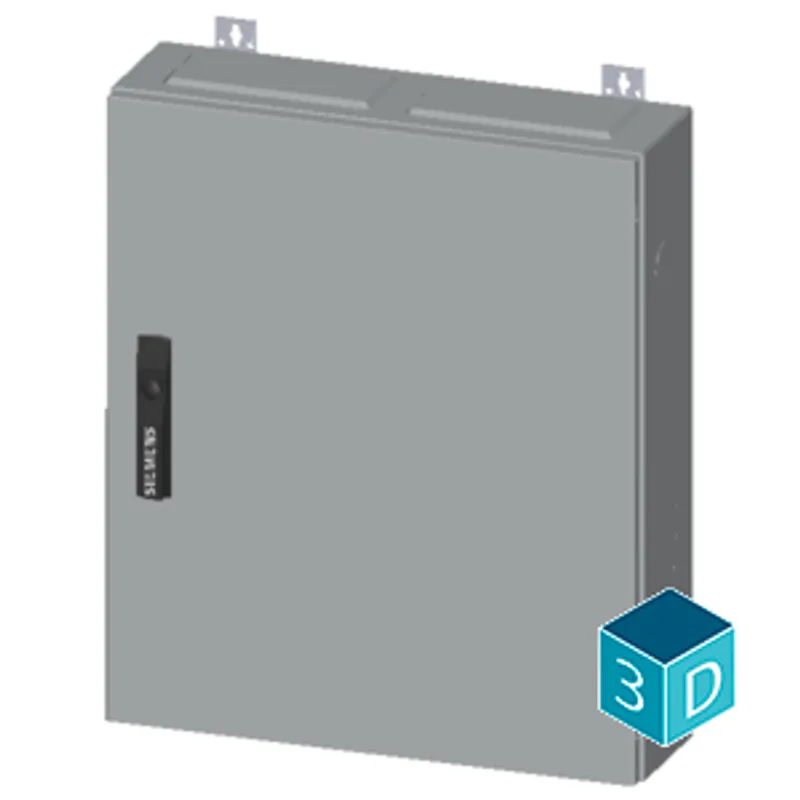

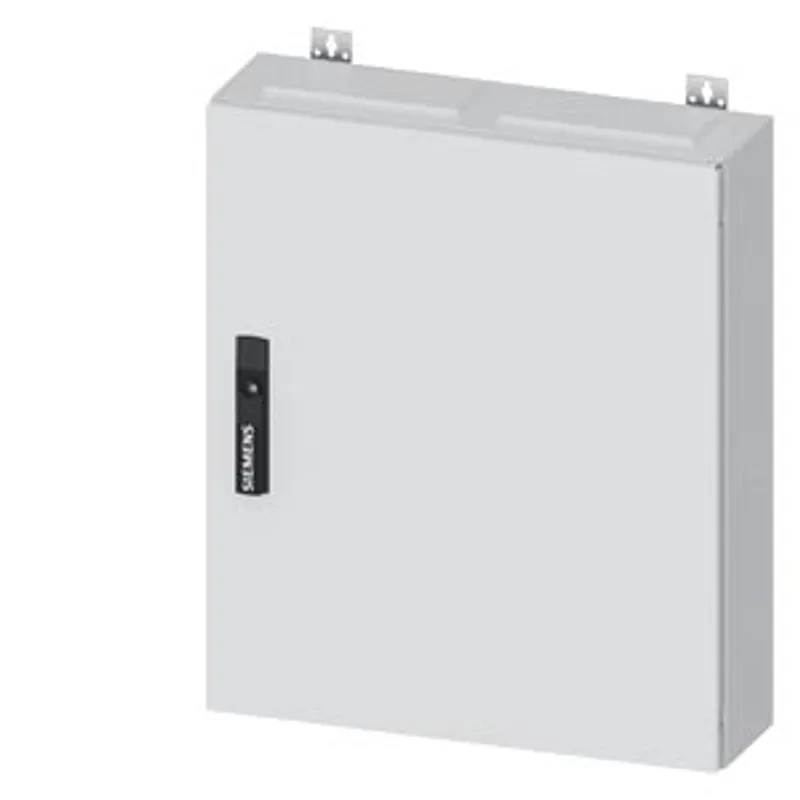

ALPHA 160, wall-mounted cabinet, Surface mounting, with distribution board panel, IP44, Protection class 2, H: 650 mm, W: 550 mm, T: 140 mm, RAL 9016

Specifications

Model

product brand name	ALPHA
product designation	Wall-mounted cabinet
design of the product	Surface mounting, with distribution board panel
surface processing	powder-coated

Protection class

protection class IP	IP44
operating resource protection class	Safety class 2
IK protection class	IK08
suitability for interaction lightning protection	Yes
suitability for use for outside use	No

Appearance

RAL color number	9 016
product component — cable entry	Yes
product component — mounting plate	No
product extension optional side-by-side mounting	Yes
number of DIN mounting bars	8
number of rows	8

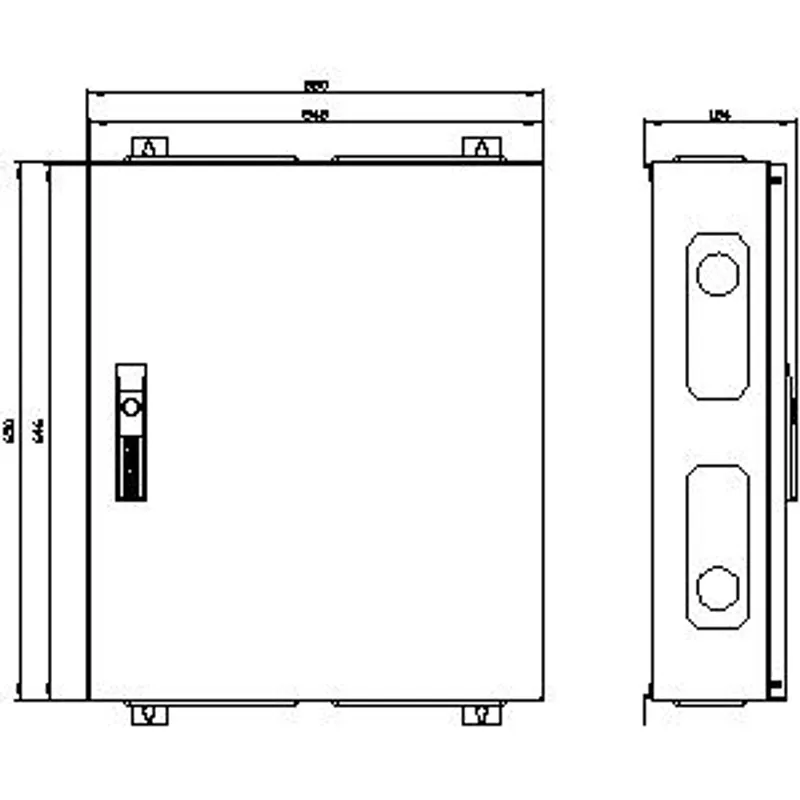

Mechanical Design

height	650 mm
width	550 mm
depth	140 mm
installation depth	140 mm
number of modular width units	96
number of modular width units per DIN mounting bar	12
fastening method	surface mounting
Net Weight	13.78 kg
material of the enclosure	Steel

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8GK1052-2KK21PDF

8GK1052-2KK21: frequently asked questions

When can 8GK1052-2KK21 be shipped?

8GK1052-2KK21 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8GK1052-2KK21 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8GK1052-2KK21 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8GK1052-2KK21, subject to availability and destination.
