What is the Siemens 8GK1051-3KK30?

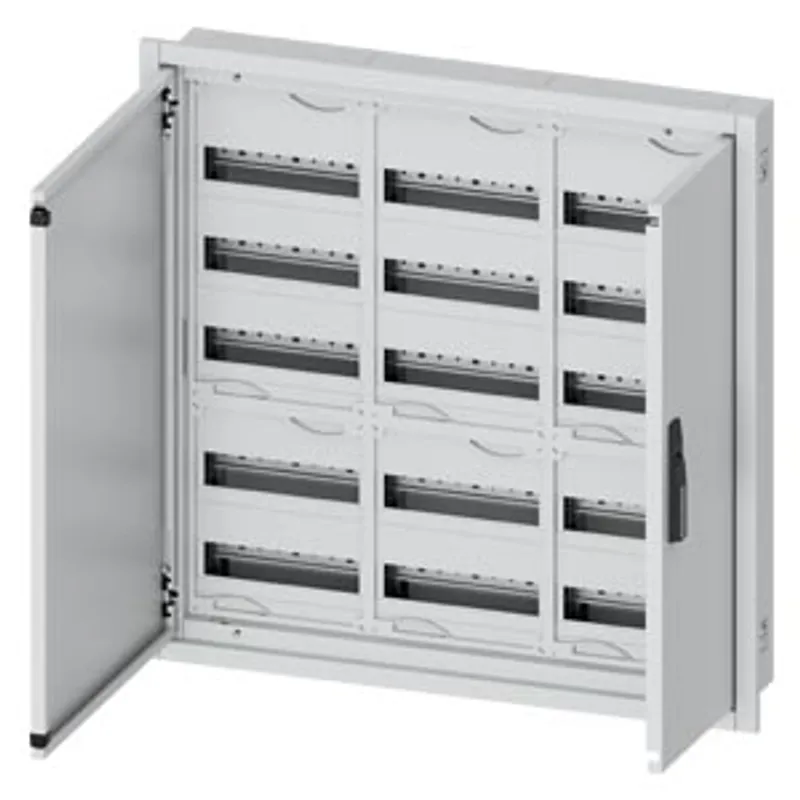

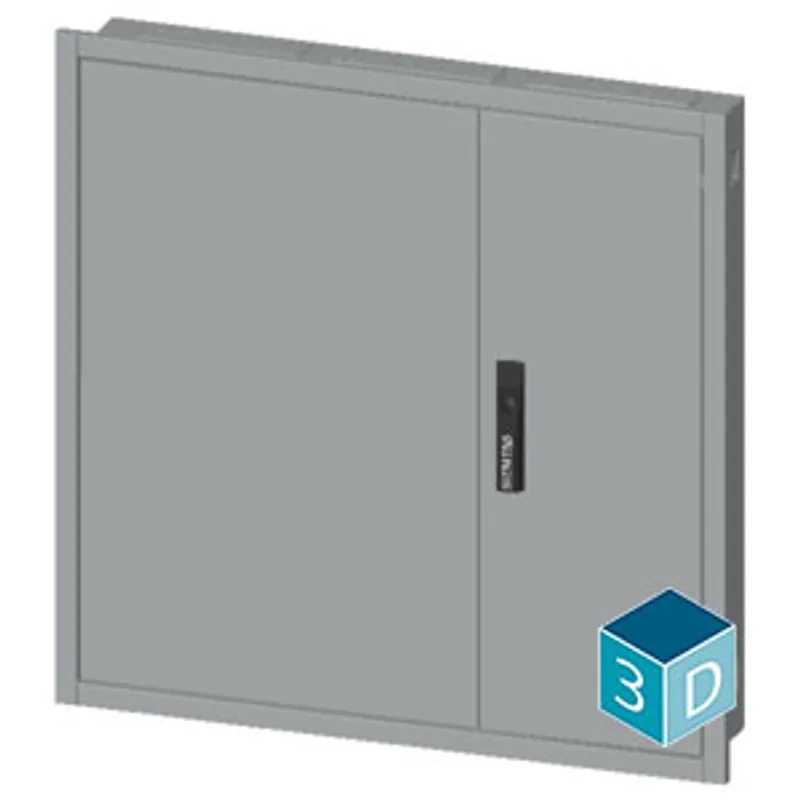

ALPHA 160 DIN flush-mounted distribution board, flush-mounting, partly assembled with assembly kit for built-in units, RAL 9016, IP31 DIN rail spacing 125 mm, with N/PE plug-in terminal, protection class II, H=800 W=800 D=120

Specifications

Model

product brand name	ALPHA
product designation	Wall-mounted cabinet
design of the product	flush-mounted for built-in devices
surface processing	powder-coated

Protection class

protection class IP	IP31
operating resource protection class	Safety class 2
IK protection class	IK08
suitability for interaction lightning protection	No
suitability for use for outside use	No

Appearance

RAL color number	9 016
product component — cable entry	Yes
product component — mounting plate	No

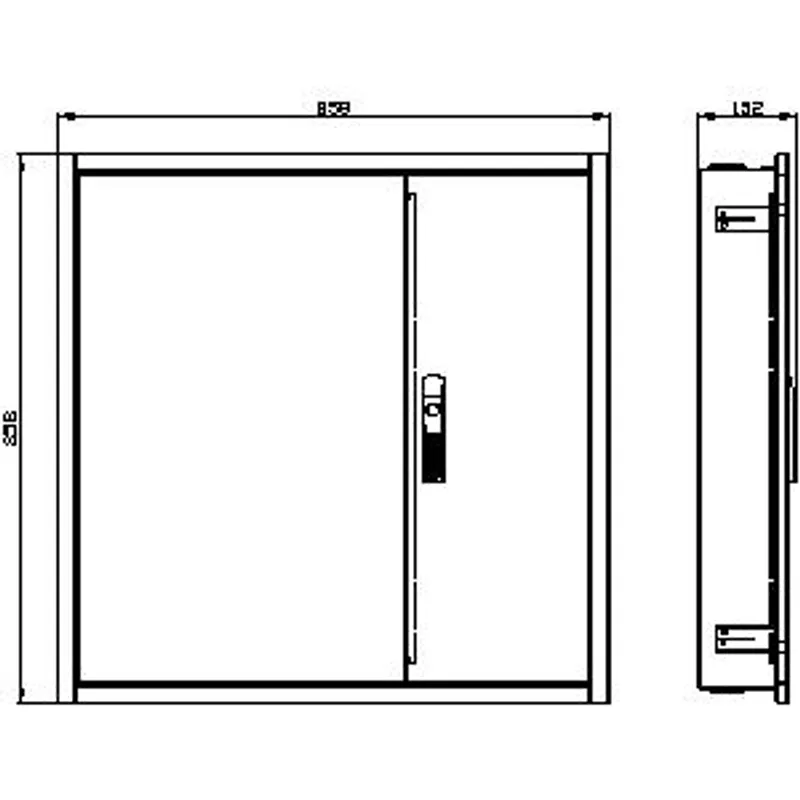

special product feature	Masking frame H=858mm B=858mm
product extension optional side-by-side mounting	No
number of DIN mounting bars	15
number of rows	15

Mechanical Design

height	847 mm
width	847 mm
depth	120 mm
installation depth	120 mm
number of modular width units	180
number of modular width units per DIN mounting bar	12
fastening method	flush mounting
Net Weight	24.62 kg
material of the enclosure	Steel
