Siemens

Siemens 8GK1082-5KK21

ALPHA 160 DIN wall mounted board with mounting kit for modular devices, and terminal blocks RAL 9016

MPN: 8GK1082-5KK21
Category: ALPHA 160

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 8GK1082-5KK21?

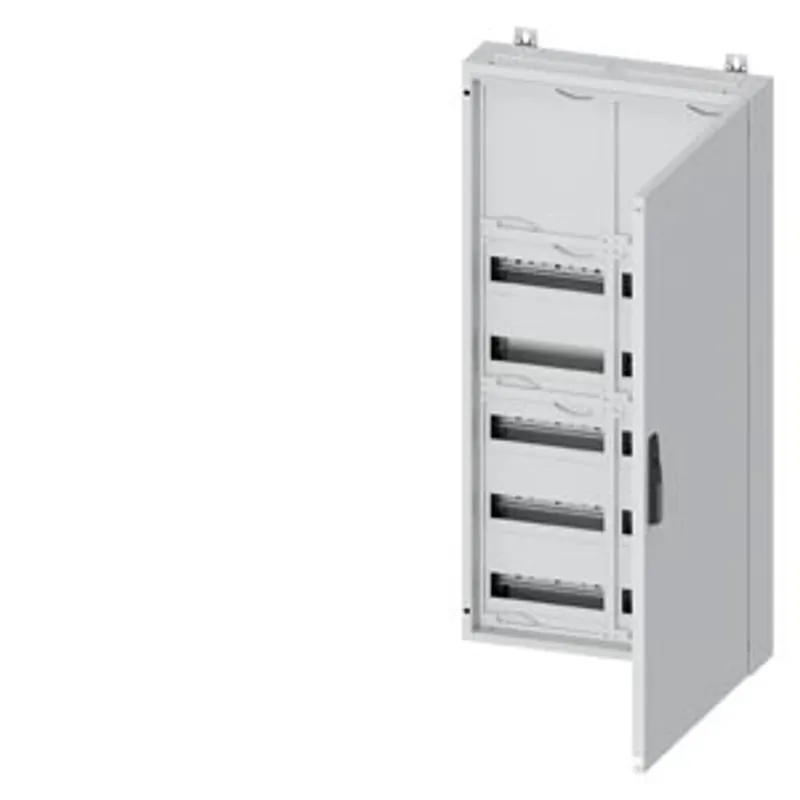

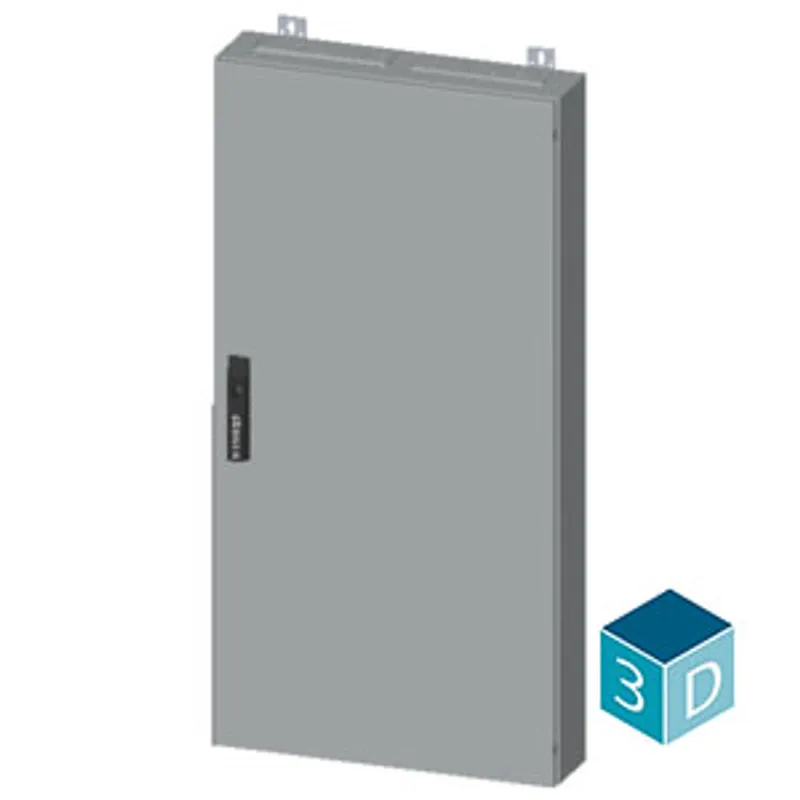

ALPHA 160 DIN wall mounted board with mounting kit for modular devices, and terminal blocks RAL 9016, IP43 row distance 150mm SK2, h=1100 w=550 d=140

Specifications

Model

product brand name	ALPHA
product designation	Wall-mounted cabinet
design of the product	surface-mounted for built-in devices
surface processing	powder-coated

Protection class

protection class IP	IP44
operating resource protection class	Safety class 2
IK protection class	IK08
suitability for interaction lightning protection	No
suitability for use for outside use	No

Appearance

RAL color number	9 016
product component — cable entry	Yes
product component — mounting plate	No
special product feature	surface mounting
product extension optional side-by-side mounting	Yes
number of DIN mounting bars	10
number of rows	14

Mechanical Design

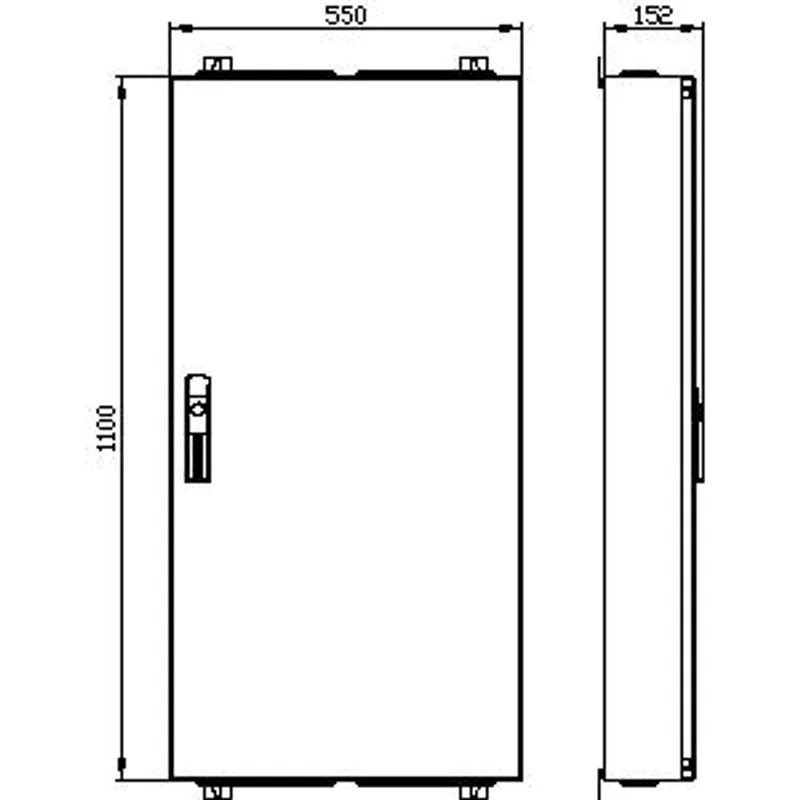

height	1 100 mm
width	550 mm
depth	140 mm
installation depth	140 mm
number of modular width units	168
number of modular width units per DIN mounting bar	12
fastening method	surface mounting
Net Weight	24 kg
material of the enclosure	Steel

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8GK1082-5KK21PDF
