Siemens 8GK1051-5KK10

ALPHA 160 DIN flush-mounted distribution board, flush-mounting

MPN: 8GK1051-5KK10
Category: ALPHA 160

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

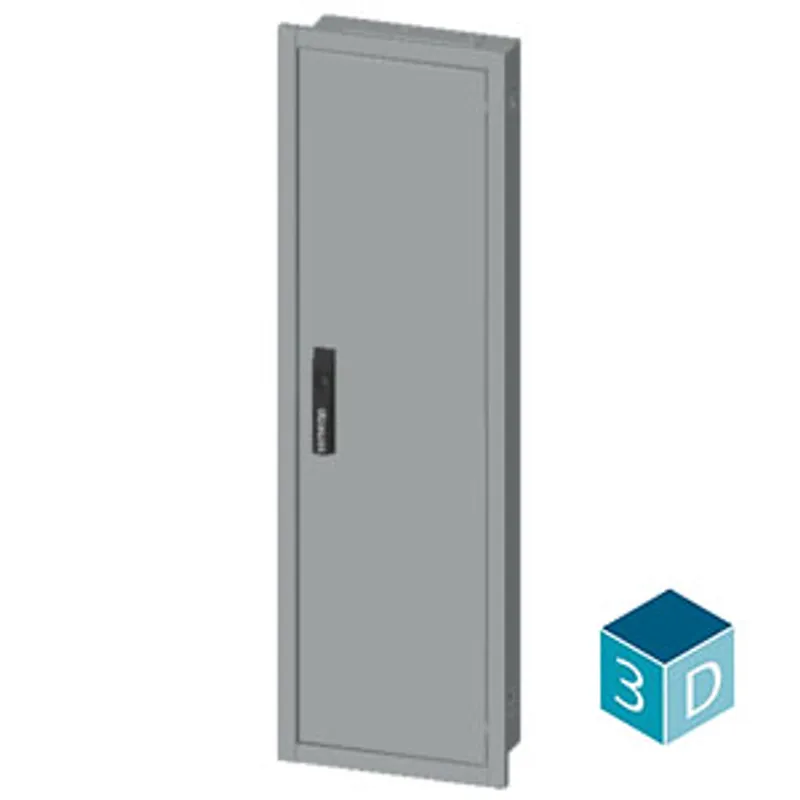

What is the Siemens 8GK1051-5KK10?

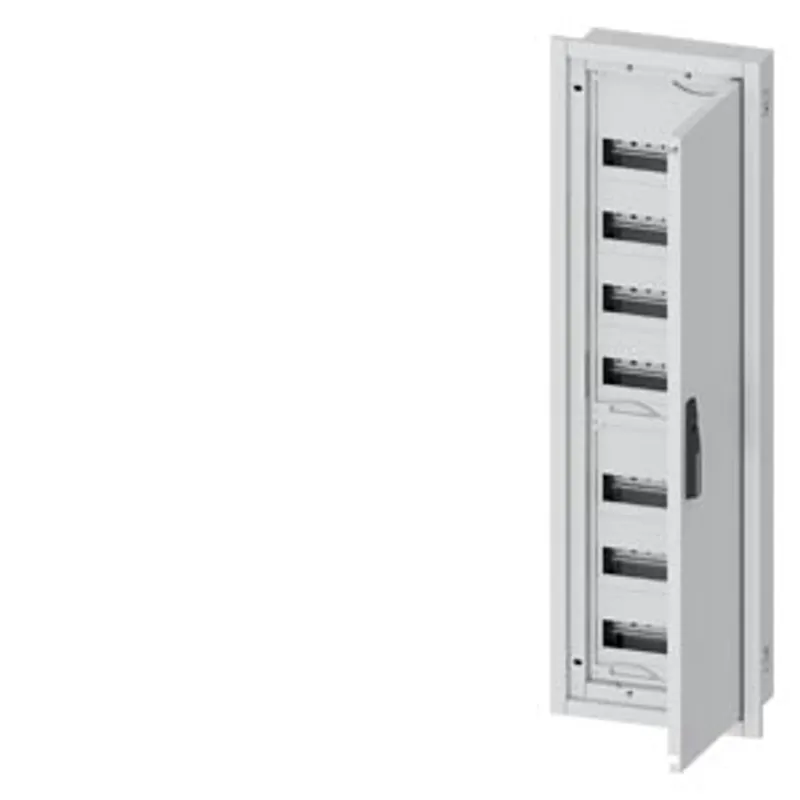

ALPHA 160 DIN flush-mounted distribution board, flush-mounting, partly assembled with assembly kit for built-in units, RAL 9016, IP31 DIN rail spacing 125 mm, with N/PE plug-in terminal, protection class II, H=1100 W=300 D=120

Specifications

Model

product brand name	ALPHA
product designation	Wall-mounted cabinet
design of the product	flush-mounted for built-in devices
surface processing	powder-coated

Protection class

protection class IP	IP31
operating resource protection class	Safety class 2
IK protection class	IK08
suitability for interaction lightning protection	No
suitability for use for outside use	No

Appearance

RAL color number	9 016
product component — cable entry	Yes
product component — mounting plate	No

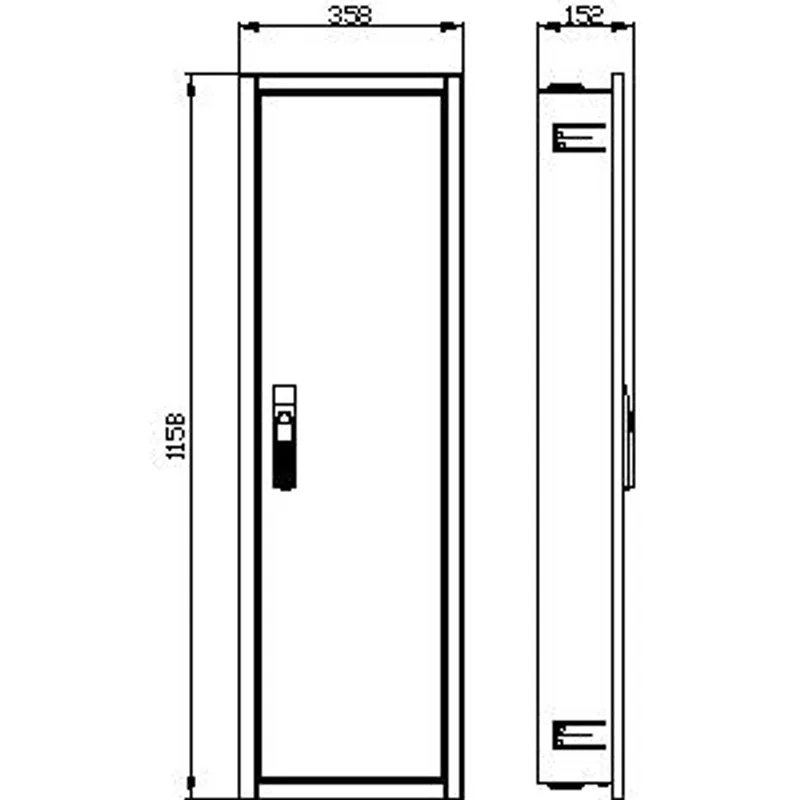

special product feature	Masking frame H=1158mm B=358mm
product extension optional side-by-side mounting	No
number of DIN mounting bars	7
number of rows	7

Mechanical Design

height	1 147 mm
width	347 mm
depth	120 mm
installation depth	120 mm
number of modular width units	84
number of modular width units per DIN mounting bar	12
fastening method	flush mounting
Net Weight	12.69 kg
material of the enclosure	Steel
