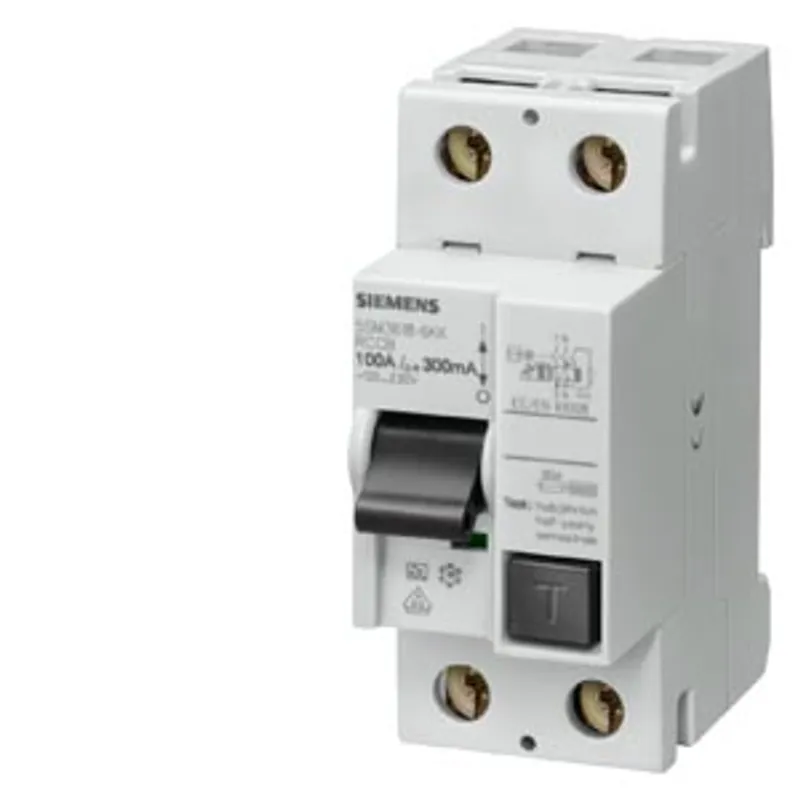

Siemens 5SM3418-6KK

Residual current operated circuit breaker, 2-pole, type A, In: 100 A, 100 mA, Un AC: 230 V

MPN
5SM3418-6KK
Category
RCCBs
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SM3418-6KK?

Residual current operated circuit breaker, 2-pole, type A, In: 100 A, 100 mA, Un AC: 230 V

Specifications

Model

product brand nameSENTRON
product designationResidual current operated circuit breaker
design of the productInstantaneous
product type designation5SM3

General technical data

number of poles2
size of installation devices according to DIN 438801
mechanical service life (operating cycles) typical10 000
short-circuit current rating10 kA
switching function short-term delayedNo
degree of pollution2
tripping fault current rated value100 mA

Supply voltage

supply voltage for testing equipment minimum100 V
value range of the supply voltage frequency50 Hz
value range of the operating frequency50 Hz
value range of the supply voltage at AC230 V

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

switching capacity current — according to EN 60898 rated value1 kA
switching capacity current — according to IEC 61008-1 rated value1 kA

Appearance

RAL color number7 035
RAL color number (similar)7 035

Product details

product feature silicon-freeYes
product extension installable supplementary devicesYes

Connections

connectable conductor cross-section solid — minimum1.5 mm²
connectable conductor cross-section solid — maximum50 mm²
connectable conductor cross-section stranded — minimum1.5 mm²
connectable conductor cross-section stranded — maximum50 mm²
tightening torque with screw-type terminals — minimum3 N·m
tightening torque with screw-type terminals — maximum4 N·m
position of power supply cordtop or bottom

Mechanical Design

height90 mm
width36 mm
depth70 mm
installation depth70 mm
number of modular width units2
fastening methodDIN rail
mounting positionany
Net Weight272 g

Environmental conditions

ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum45 °C
ambient temperature during storage minimum-40 °C
number of test cycles for environmental testing according to IEC 60068-2-3028

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SM3418-6KK: frequently asked questions

When can 5SM3418-6KK be shipped?

5SM3418-6KK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SM3418-6KK in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SM3418-6KK and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SM3418-6KK, subject to availability and destination.
