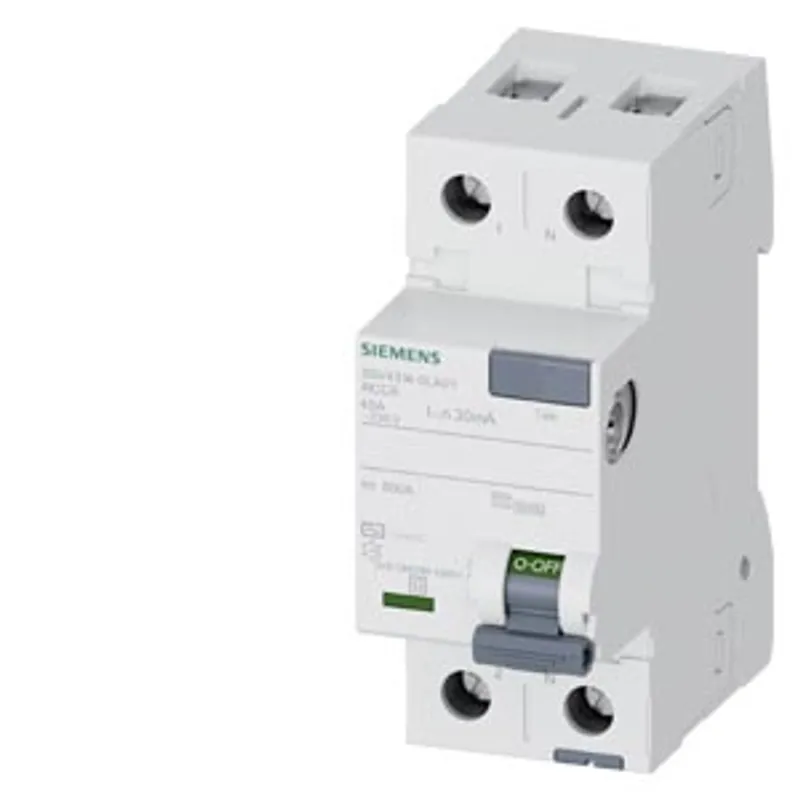

Siemens 5SV4314-0LA01
Residual current operated circuit breaker, 2-pole, type AC, short-time-delayed, In: 40 A, 30 mA, Un AC: 230 V
- MPN
- 5SV4314-0LA01
- Category
- RCCBs
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5SV4314-0LA01?
residual current operated circuit breaker, 2-pole, type AC, short-time-delayed, In: 40 A, 30 mA, Un AC: 230 V, with thermal overload protection Use of these devices is not permitted in all countries. Observe national installation regulations!
Specifications
Model
| product brand name | SENTRON |
| product designation | Residual current operated circuit breaker |
| design of the product | Short-time delayed |
| product type designation | 5SV4 |
| product version | With thermal overload protection |
General technical data
| number of poles | 2 |
| size of installation devices according to DIN 43880 | 1 |
| mechanical service life (operating cycles) typical | 10 000 |
| short-circuit current of series fuse maximum permissible | 80 A |
| short-circuit current rating | 10 kA |
| switching function short-term delayed | Yes |
| degree of pollution | 2 |
| insulation voltage (Ui) rated value | 2 000 V |
| tripping fault current rated value | 30 mA |
| let-through current permissible | 5 200 A |
| I2t value permissible | 58 000 A²·s |
Supply voltage
| supply voltage for testing equipment minimum | 195 V |
| value range of the supply voltage frequency | 50 Hz |
| value range of the operating frequency | 50/60 Hz |
| value range of the supply voltage at AC | 230 V |
Protection class
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
Breaking Capacity
| switching capacity current — according to IEC 61008-1 rated value | 0.5 kA |
| grid spacing | 60 mm |
Dissipation
| power loss [W] — for rated value of the current at AC in hot operating state per pole | 1.5 W |
| power loss [W] — maximum | 3 W |
Appearance
| RAL color number | 7 035 |
| RAL color number (similar) | 7 035 |
Product details
| product feature silicon-free | Yes |
| product extension installable supplementary devices | Yes |
Connections
| connectable conductor cross-section solid — minimum | 0.75 mm² |
| connectable conductor cross-section solid — maximum | 35 mm² |
| connectable conductor cross-section stranded — minimum | 0.75 mm² |
| connectable conductor cross-section stranded — maximum | 35 mm² |
| tightening torque with screw-type terminals — minimum | 2.5 N·m |
| tightening torque with screw-type terminals — maximum | 3 N·m |
| position of power supply cord | top or bottom |

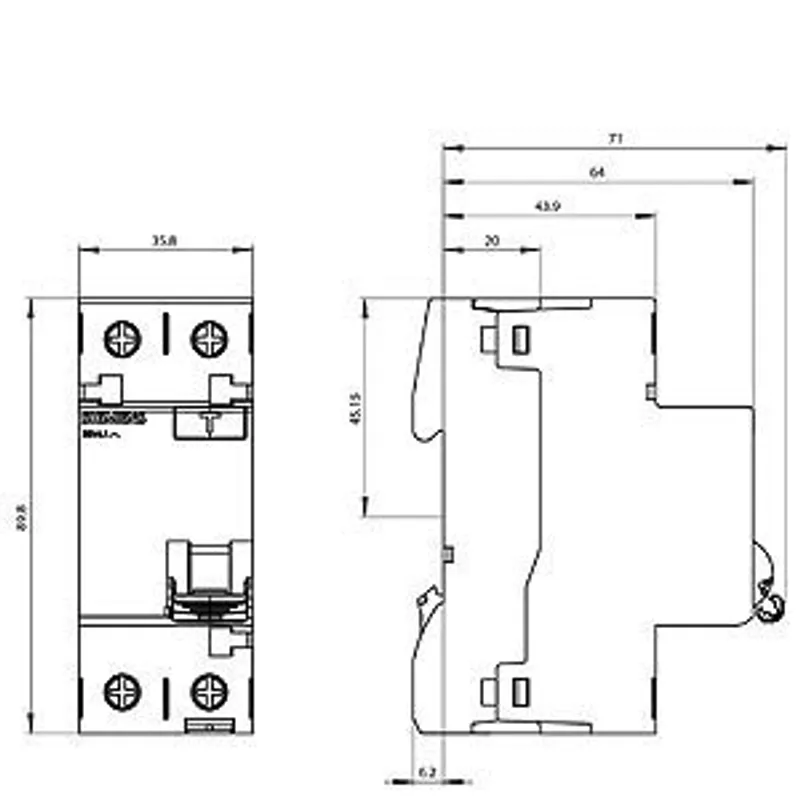

Mechanical Design
| height | 90 mm |
| width | 36 mm |
| depth | 70 mm |
| installation depth | 70 mm |
| number of modular width units | 2 |
| fastening method | DIN rail |
| mounting position | any |
| Net Weight | 213 g |
Environmental conditions
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 45 °C |
| ambient temperature during storage minimum | -40 °C |
| number of test cycles for environmental testing according to IEC 60068-2-30 | 28 |
No matching specifications
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5SV4314-0LA01: frequently asked questions
When can 5SV4314-0LA01 be shipped?
5SV4314-0LA01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5SV4314-0LA01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5SV4314-0LA01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SV4314-0LA01, subject to availability and destination.
