Siemens
5ST3673-75ST Busbars for Modular Installation Devices Parts
Compare 5ST Busbars for Modular Installation Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the product | compatibility | length | number of modular width units | Net Weight |
|---|---|---|---|---|---|

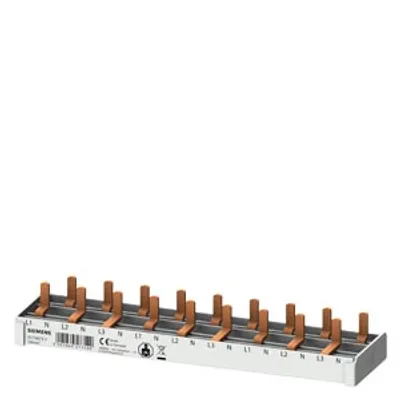

| 5ST3673-7 | 9x (1PH+N) | for compact devices | 166 mm | 9 | 100 g |

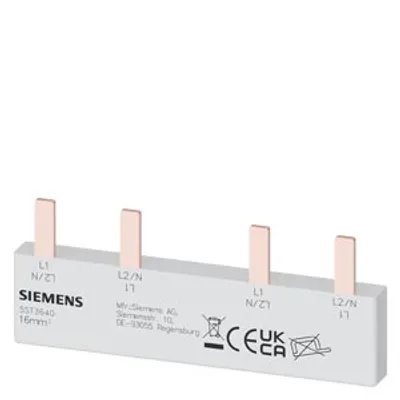

| 5ST3640 | 2x (1PH+N+HS) | for 2 MCBs (2P/1P+N) | 76 mm | 4 | 29 g |

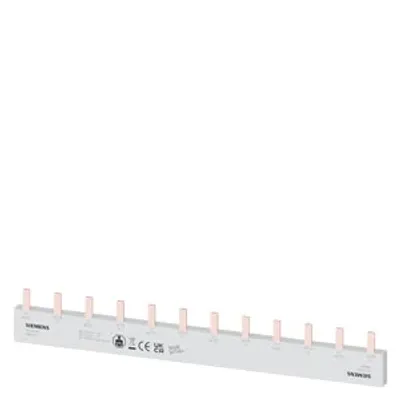

| 5ST3638 | 6x (1PH+N) | for 6 MCBs (2P/1P+N) | 210 mm | 12 | 89 g |

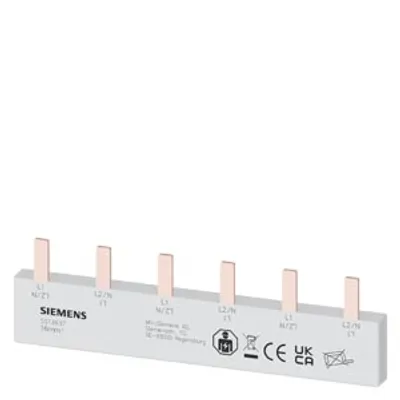

| 5ST3637 | 3x (1PH+N) | for 3 MCBs (2P/1P+N) | 105 mm | 6 | 42 g |

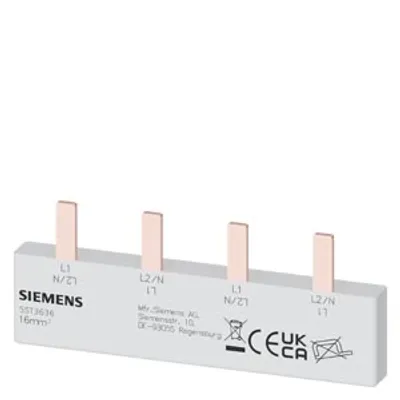

| 5ST3636 | 2x (1PH+N) | for 2 MCBs (2P/1P+N) | 76 mm | 4 | 26 g |

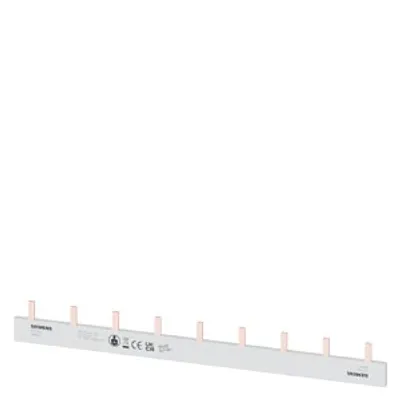

| 5ST3635 | 9x (1PH+HS) | for 9 MCBs 1P | 237 mm | 13 | 55 g |

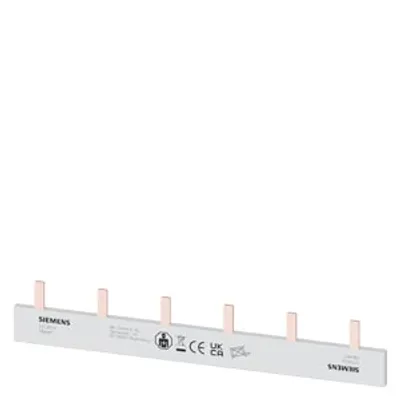

| 5ST3634 | 6x (1PH+HS) | for 6 MCBs 1P | 158 mm | 9 | 36 g |
| 5ST3633 | 2x (1PH+HS) | for 2 MCBs 1P | 40 mm | 2 | 11 g |

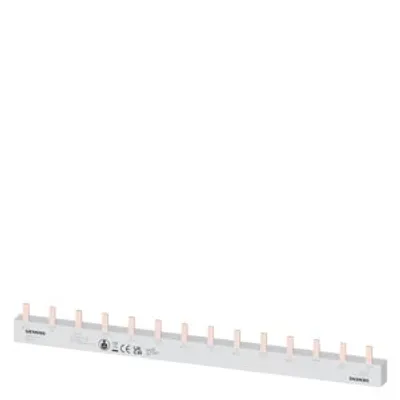

| 5ST3623-4 | 7x (1PH+N) | for 7 MCBs (1P+N) | 248 mm | 14 | 102 g |

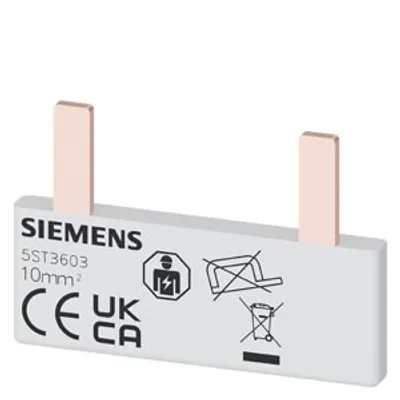

| 5ST3603 | 2x (1PH+HS) | for 2 MCBs 1P | 40 mm | 2 | 10 g |

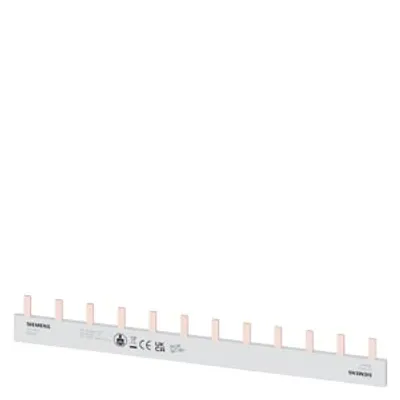

| 5ST3602 | 12x 1PH | for 12 MCBs 1P | 212 mm | 12 | 47 g |

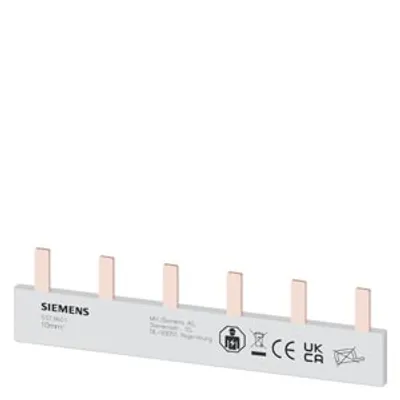

| 5ST3601 | 6x 1PH | for 6 MCBs 1P | 105 mm | 6 | 24 g |

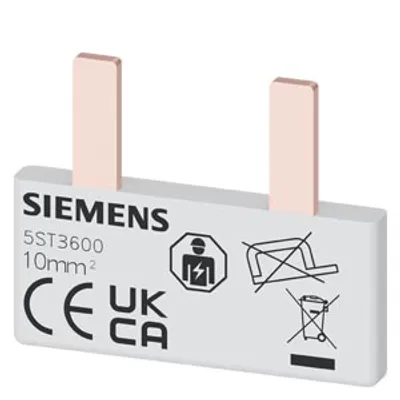

| 5ST3600 | 2x 1PH | for 2 MCBs 1P | 33 mm | 2 | 8 g |
| 5ST3771-0 | 56x (1PH+N) | for compact devices | 998 mm | 55 | 800 g |
| 5ST3770-8 | 16x (1PH+N) | for compact devices | 292 mm | 16 | 166 g |
| 5ST3770-7 | 56x (1PH+N) | for MCBs 1P+N compact | 1 000 mm | 56 | 531 g |
| 5ST3770-6 | 12x (1PH+N) | for MCBs 1P+N compact | 292 mm | 16 | 115 g |

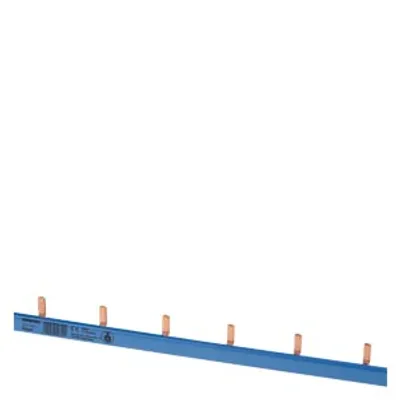

| 5ST3765-2 | 28x N | for 5SM601. and 5TY1 COM | 1 000 mm | 56 | 138 g |

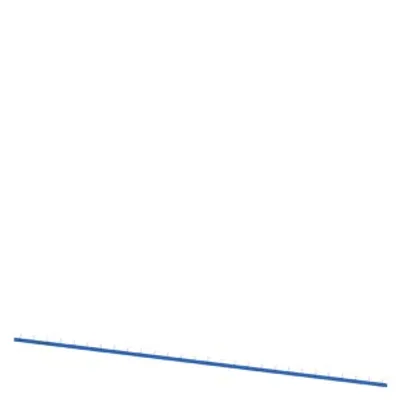

| 5ST3765-1 | 28x N | for 5SM601. and 5TY1 COM | 1 000 mm | 56 | 145 g |

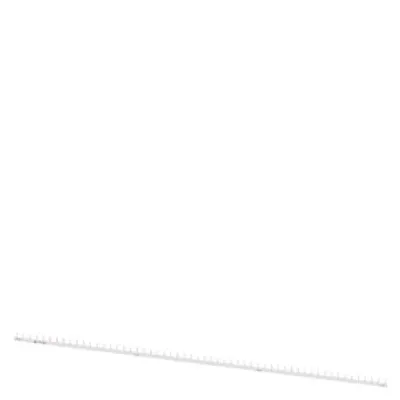

| 5ST3764 | 56x 1PH | for MCBs 1P+N compact | 1 016 mm | 56 | 145 g |

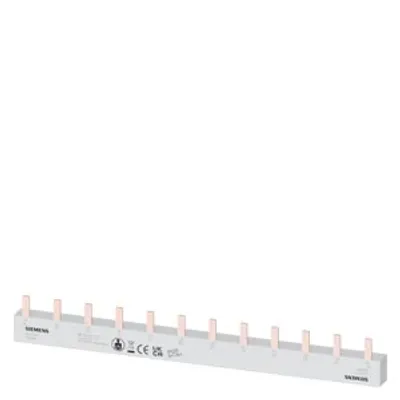

| 5ST3622 | 3x (3PH+N) | for 3 MCBs (4P/3P+N) | 210 mm | 12 | 92 g |

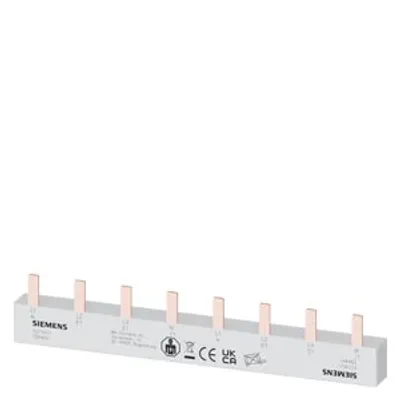

| 5ST3621 | 2x (3PH+N) | for 2 MCBs (4P/3P+N) | 140 mm | 8 | 53 g |

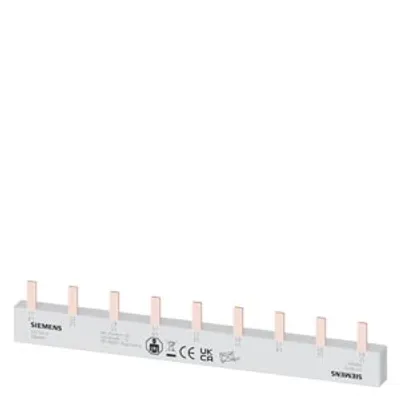

| 5ST3614 | 3x 3PH | for 3 MCBs 3P | 158 mm | 9 | 55 g |

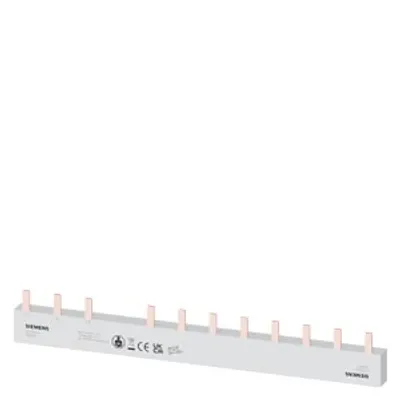

| 5ST3654 | 3PH+(N)+ 8x 1PH | for 8 MCBs 1P with 1 RCCB 3P+N, N right | 210 mm | 12 | 113 g |
Common to all listed parts
| product designation | Pin busbar |
| type of electrical connection | Pin |
| module width | 18 mm |
