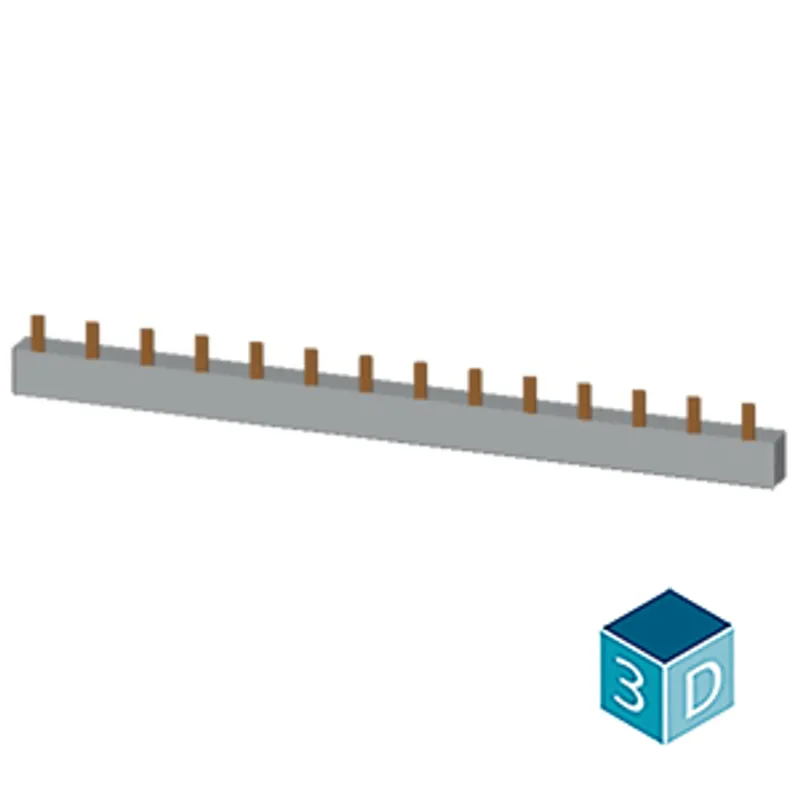

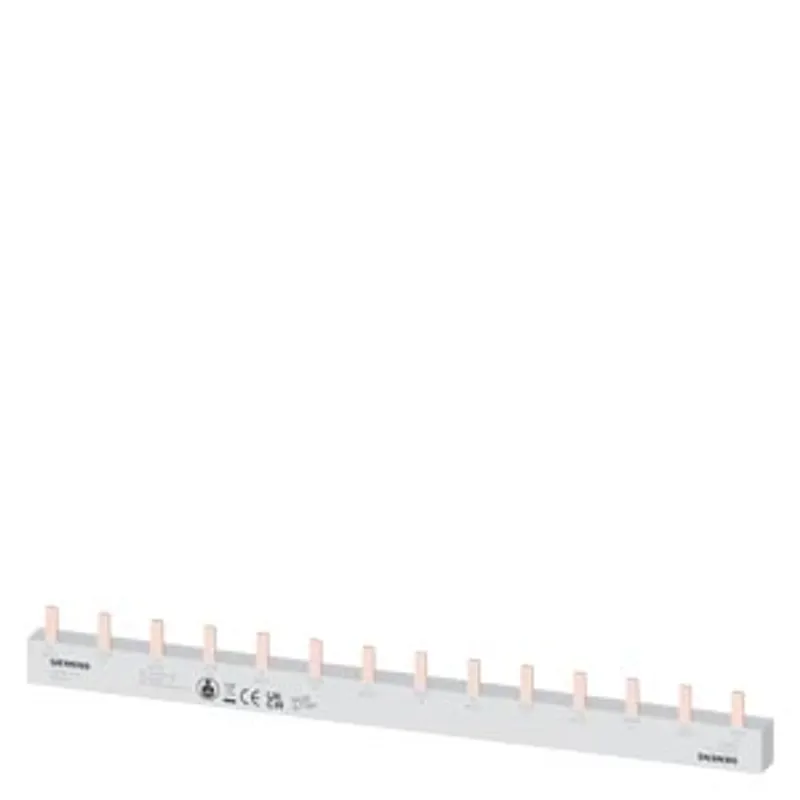

Siemens 5ST3623-4
Pin Busbar, 10mm2 connection: 3p/N 7x MCB 2-pole touch protected 14MW fixed length
- MPN
- 5ST3623-4
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 5ST3623-4?
Pin Busbar, 10mm2 connection: 3p/N 7x MCB 2-pole touch protected 14MW fixed length
Specifications
General
| product brand name | SENTRON |
| product designation | Pin busbar |
| design of the product | 7x (1PH+N) |
| design of the phase tap | L1/N/L2/N/L3/N |
General technical data
| compatibility | for 7 MCBs (1P+N) |
| design of pole | 3P+N |
| phase number | 4 |
| operational current rated value | 63 A |
| suitability for interaction devices with auxiliary switch | No |
| suitability for interaction devices with N conductor | Yes |
| suitability for use | RCCB 2P N right |
| color | light grey |
Product details
| product feature attachable arc fault detection device | No |
| product feature insulated | Yes |
| product function — suitable for compact devices | No |
| product function — can be cut | No |
| number of devices suitable for fitting | 7 |
| type of electrical connection | Pin |

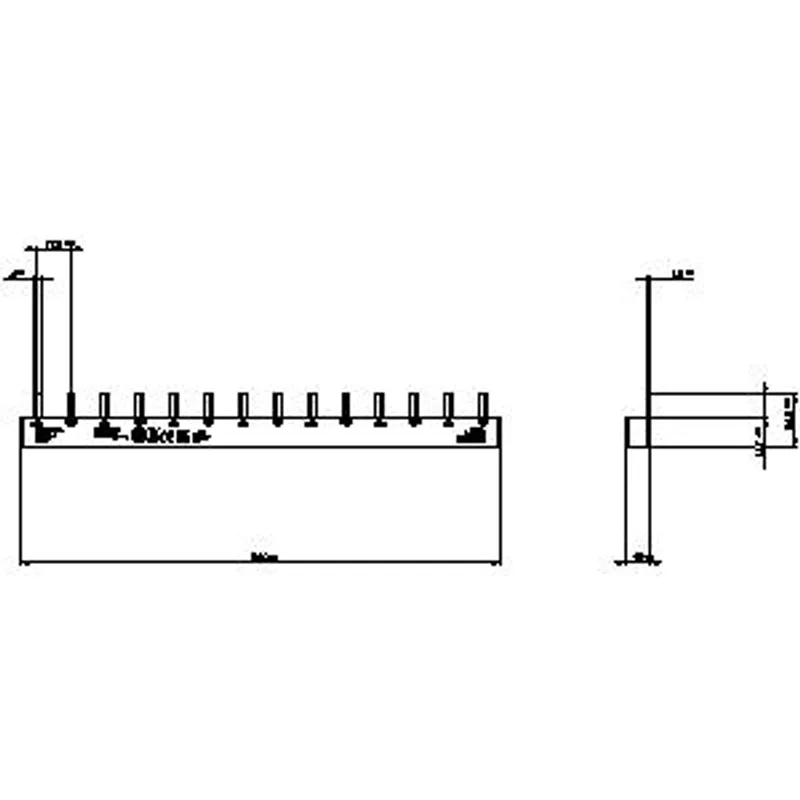

Mechanical Design
| module width | 18 mm |
| height | 15 mm |
| width | 12 mm |
| length | 248 mm |
| number of modular width units | 14 |
| cross-section | 10 mm² |
| angle of the pin of busbar | 0° |
| Net Weight | 102 g |
