Siemens 5ST3673-7
- MPN
- 5ST3673-7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

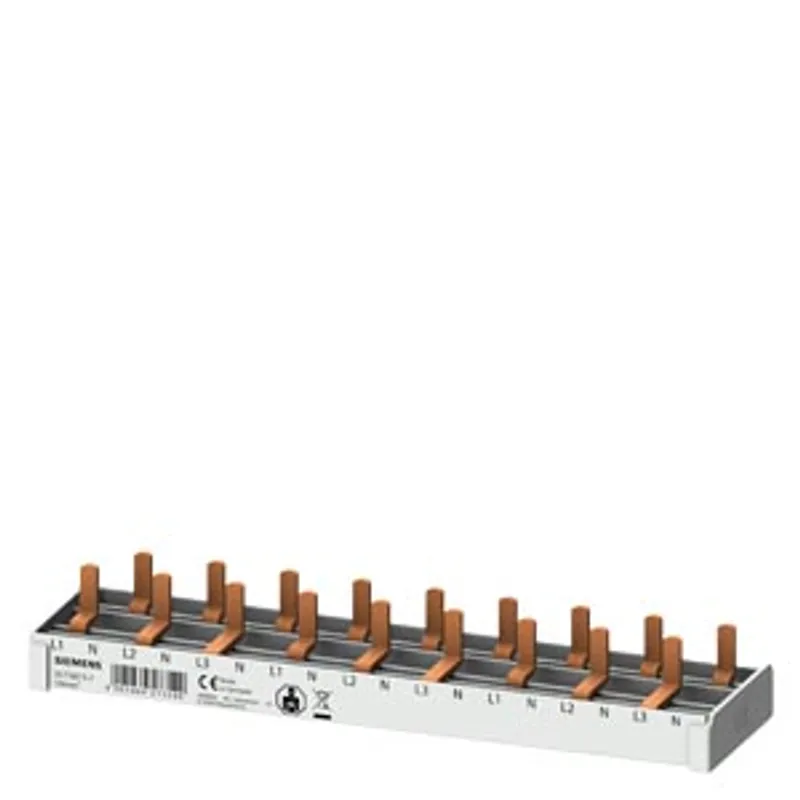

What is the Siemens 5ST3673-7?
Compact pin busbar, 10mm2 connection 3p/N 9x compact device 1 MW touch protected 9 MW fixed length
Specifications
General
| product brand name | SENTRON |
| product designation | Pin busbar |
| design of the product | 9x (1PH+N) |
| design of the phase tap | L1/N/L2/N/L3/N |
General technical data
| compatibility | for compact devices |
| design of pole | 3P+N |
| phase number | 4 |
| operational current rated value | 63 A |
| suitability for interaction devices with auxiliary switch | No |
| suitability for interaction devices with N conductor | Yes |
| color | light grey |
Product details
| product component with end cap | Yes |
| product feature attachable arc fault detection device | No |
| product feature insulated | Yes |
| product function — suitable for compact devices | Yes |
| product function — can be cut | No |
| number of devices suitable for fitting | 9 |
| type of electrical connection | Pin |

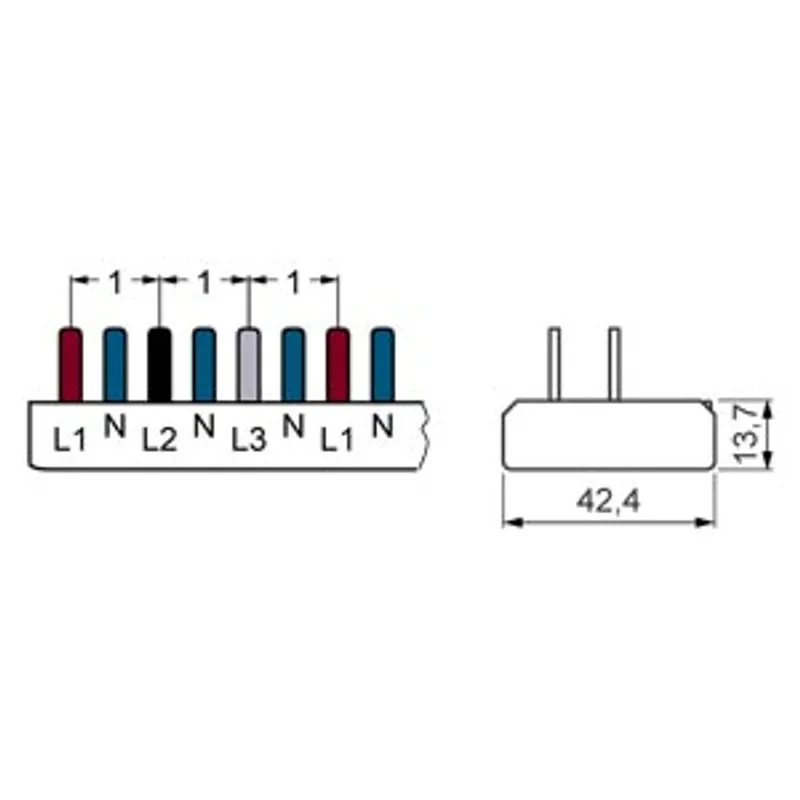

Mechanical Design
| module width | 18 mm |
| height | 14 mm |
| width | 42 mm |
| length | 166 mm |
| number of modular width units | 9 |
| cross-section | 10 mm² |
| angle of the pin of busbar | 0° |
| Net Weight | 100 g |
