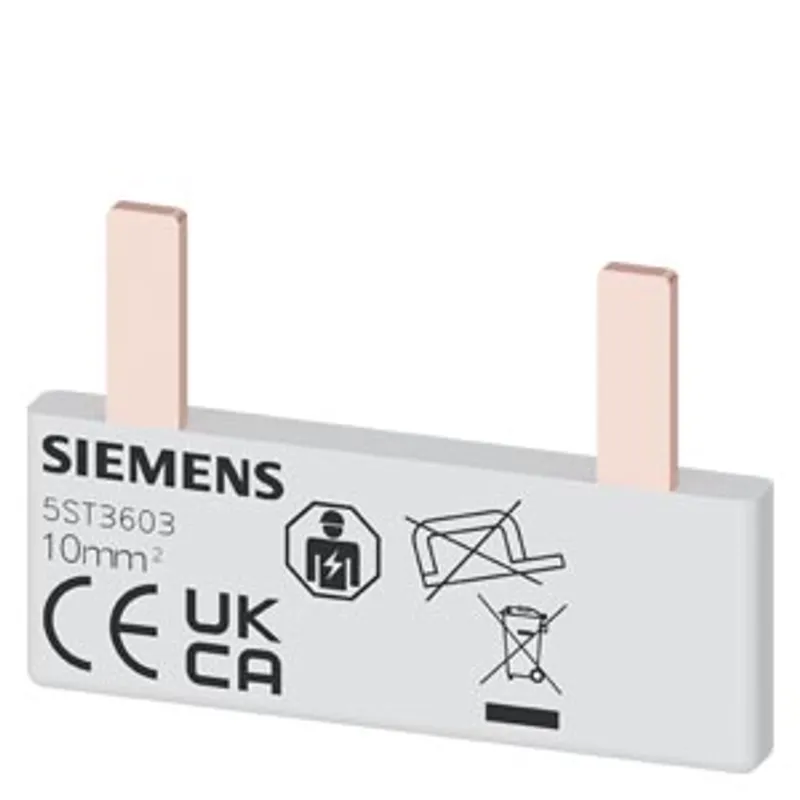

Siemens 5ST3603
Pin busbar, 10 mm2 connection: 2x (1-phase+AUX/FS) touch-safe
- MPN
- 5ST3603
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 5ST3603?
Pin busbar, 10 mm2 connection: 2x (1-phase+AUX/FS) touch-safe
Specifications
General
| product brand name | SENTRON |
| product designation | Pin busbar |
| design of the product | 2x (1PH+HS) |
| design of the phase tap | L1/L1 |
General technical data
| compatibility | for 2 MCBs 1P |
| design of pole | 1 pole |
| phase number | 1 |
| operational current rated value | 63 A |
| suitability for interaction devices with auxiliary switch | Yes |
| suitability for interaction devices with N conductor | No |
| color | light grey |
Product details
| product feature attachable arc fault detection device | No |
| product feature insulated | Yes |
| product function — suitable for compact devices | No |
| product function — can be cut | No |
| number of devices suitable for fitting | 2 |
| type of electrical connection | Pin |

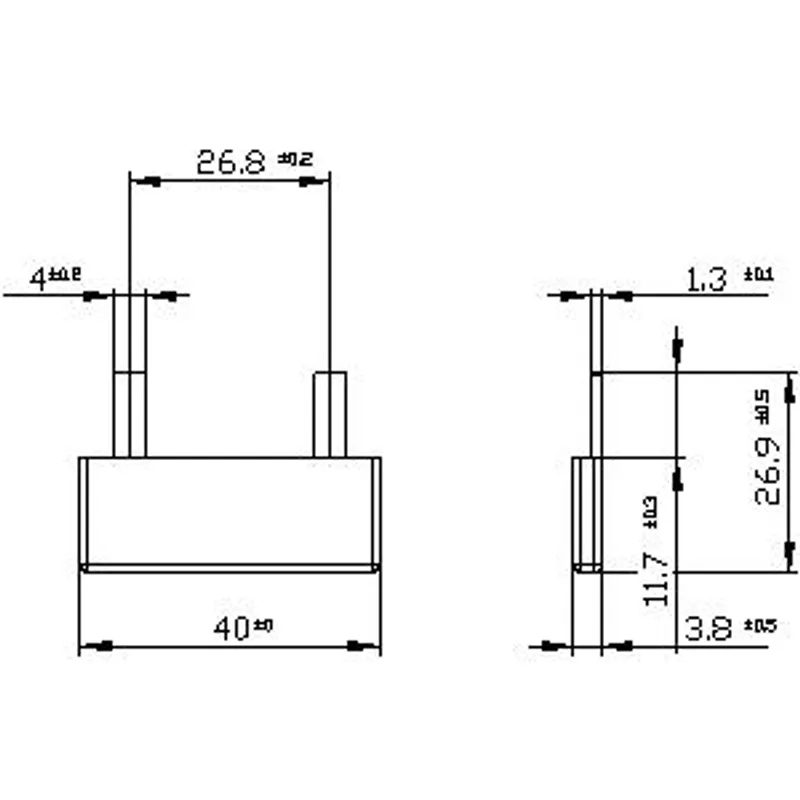

Mechanical Design
| module width | 18 mm |
| height | 14 mm |
| width | 3 mm |
| length | 40 mm |
| number of modular width units | 2 |
| cross-section | 10 mm² |
| angle of the pin of busbar | 0° |
| Net Weight | 10 g |
