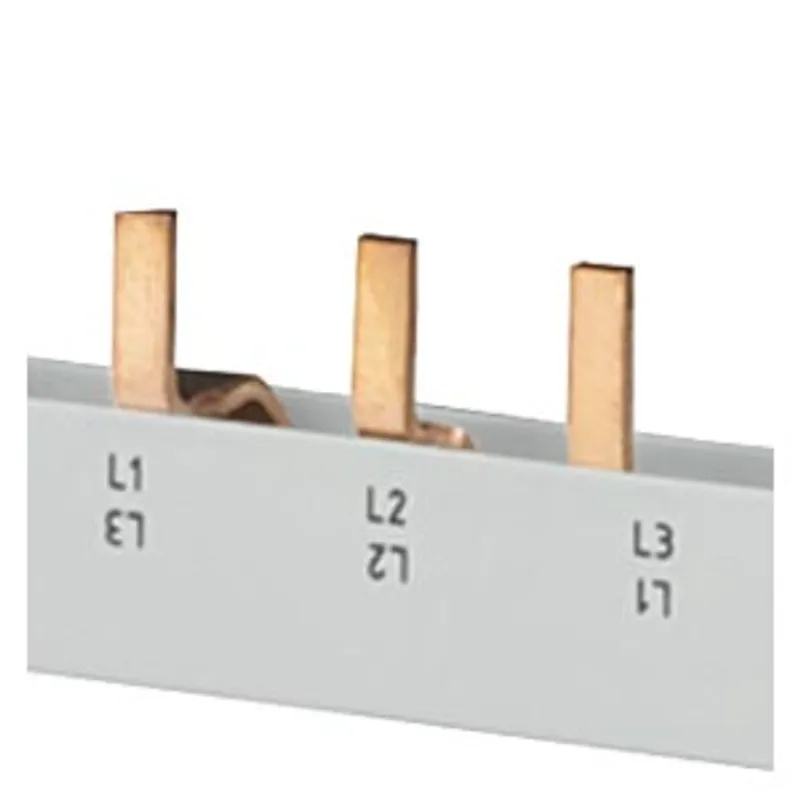

Siemens 5ST3770-7
Pin busbar touch-safe, 16 mm2 1-phase+N, 1000 mm long without end caps
- MPN
- 5ST3770-7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 5ST3770-7?
Pin busbar touch-safe, 16 mm2 1-phase+N, 1000 mm long without end caps
Specifications
General
| product brand name | SENTRON |
| product designation | Pin busbar |
| design of the product | 56x (1PH+N) |
| design of the phase tap | L1/N |
General technical data
| compatibility | for MCBs 1P+N compact |
| design of pole | 1P+N |
| phase number | 2 |
| operational current rated value | 80 A |
| suitability for interaction devices with auxiliary switch | No |
| suitability for interaction devices with N conductor | Yes |
| color | light grey |
Product details
| product component with end cap | No |
| product feature attachable arc fault detection device | No |
| product feature insulated | No |
| product function — suitable for compact devices | Yes |
| product function — can be cut | Yes |
| number of devices suitable for fitting | 56 |
| type of electrical connection | Pin |
Mechanical Design
| module width | 18 mm |
| length | 1 000 mm |
| number of modular width units | 56 |
| cross-section | 16 mm² |
| angle of the pin of busbar | 0° |
| Net Weight | 531 g |
