Chiller/Cooling Tower Parts

ABB

ECTM3665T-G

5HP,1750RPM,3PH,60HZ,184T,0642M,TEF

ABB

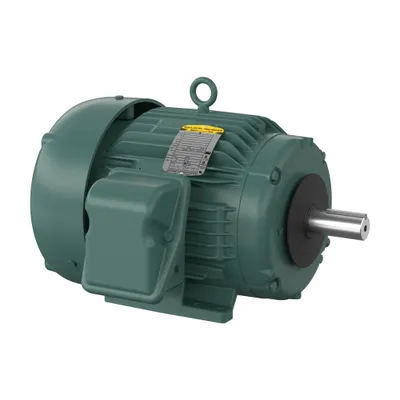

ECTM3770T

7.5HP,1770RPM,3PH,60HZ,213T,0738M,T

ABB

ECTM2332T-5G

10HP,1180RPM,3PH,60HZ,256T,0960M,TE

ABB

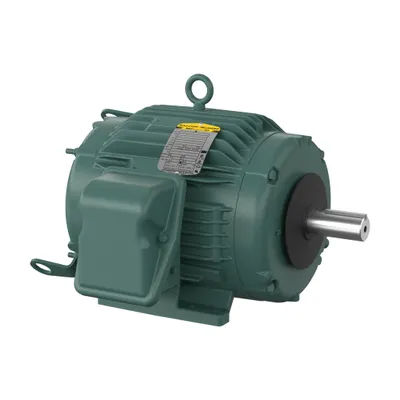

ECTM3768T-G-AO

5 AIR OVERHP,1160RPM,3PH,60HZ,215T

ABB

ECTM3581T-5G

1HP,1770RPM,3PH,60HZ,143T,0520M,TEF

ABB

ECTM2276T-5G

7.5HP,1180RPM,3PH,60HZ,254T,0954M,T

ABB

ECTM2334T-G-AO

20 AIR OVERHP,1770RPM,3PH,60HZ,256T

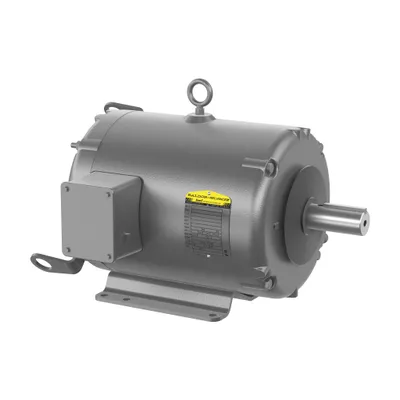

ABB

ECTM3704T-G-AO

3 AIR OVERHP,1160RPM,3PH,60HZ,213T

ABB

ECTM4100T

15 AIR OVERHP,1175RPM,3PH,60HZ,284T

ABB

ECTM3774T-G-AO

10 AIR OVERHP,1765RPM,3PH,60HZ,215T

ABB

ECTM2332T-G

10HP,1180RPM,3PH,60HZ,256T,0960M,TE

ABB

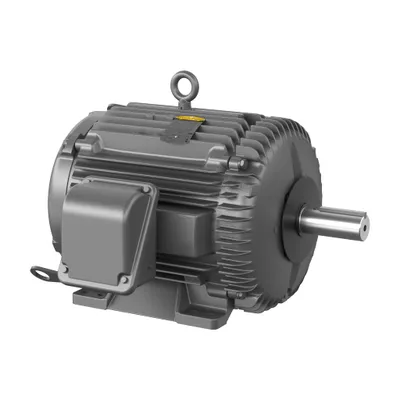

ECTM4110T

40 AIR OVERHP,1775RPM,3PH,60HZ,324T

ABB

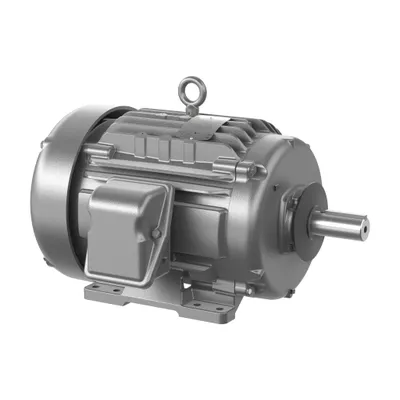

ECTM2333T-5G

15HP,1765RPM,3PH,60HZ,254T,0944M,TE

ABB

ECTM2276T-G

7.5HP,1180RPM,3PH,60HZ,254T,0954M,T

ABB

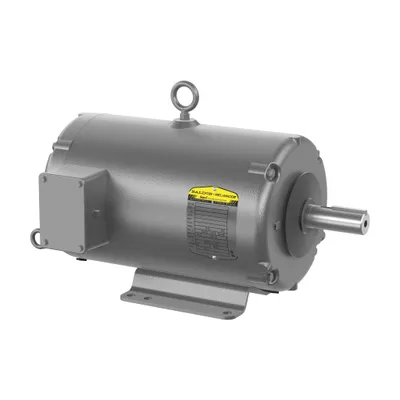

ECTM3615T-G-AO

5 AIR OVERHP,1755RPM,3PH,60HZ,182T

ABB

ECTM3770T-G

7.5HP,1770RPM,3PH,60HZ,213T,0738M,T

ABB

ECTM3665T-G-AO

5 AIR OVERHP,1750RPM,3PH,60HZ,184T

ABB

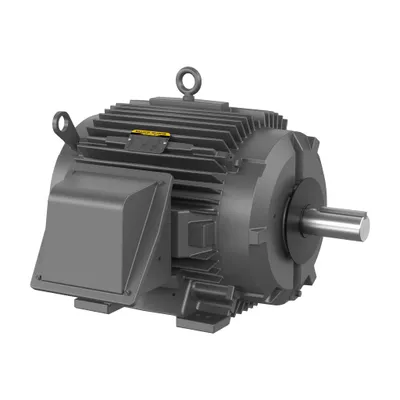

ECTM4314T

60HP,1780RPM,3PH,60HZ,364T,1462M,TE

ABB

ECTM3768T-5G

5HP,1160RPM,3PH,60HZ,215T,0746M,TEF

ABB

ECTM4104T-G

30HP,1760RPM,3PH,60HZ,286T,1056M,TE

ABB

ECTM2334T

20 AIR OVERHP,1770RPM,3PH,60HZ,256T

ABB

CTM3774T

10 AIR OVERHP,1760RPM,3PH,60HZ,215T

ABB

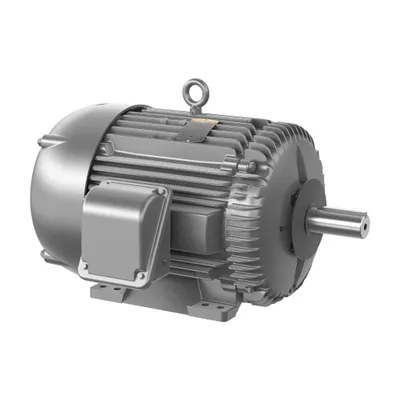

ECTM4111T-5G

25HP,1180RPM,3PH,60HZ,324T,1260M,TE

ABB

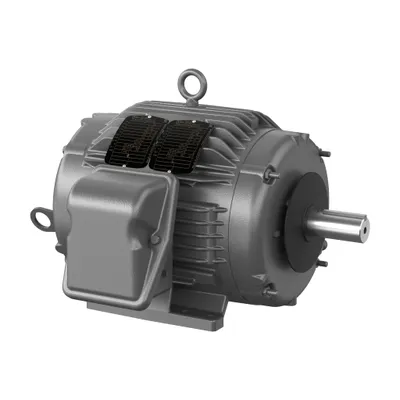

CTM3770T

7.5 AIR OVERHP,1760RPM,3PH,60HZ,213

Compare Chiller/Cooling Tower

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Catalog Number	Power Factor	Output Power	Motor Frame Size	Product Net Weight
ECTM3665T-G	ECTM3665T-G G	80 %	5 Hp	184T	115 lb
ECTM3770T	ECTM3770T	81 %	7.5 Hp	213T	170 lb
ECTM2332T-5G	ECTM2332T-5G	71 %	10 Hp	256T	322 lb
ECTM3768T-G-AO	ECTM3768T-G-AO G	71 %	5 Hp	215T	198 lb
ECTM3581T-5G	ECTM3581T-5G	72 %	1 Hp	143T	56 lb
ECTM2276T-5G	ECTM2276T-5G	70 %	7.50 Hp	254T	302 lb
ECTM2334T-G-AO	ECTM2334T-G-AO G	83 %	20 Hp	256T	322 lb
ECTM3704T-G-AO	ECTM3704T-G-AO G	68 %	3 Hp	213T	138 lb
ECTM4100T	ECTM4100T	73 %	15 Hp	284T	345 lb
ECTM3774T-G-AO	ECTM3774T-G-AO G	83 %	10 Hp	215T	231 lb
ECTM2332T-G	ECTM2332T-G G	72 %	10 Hp	256T	322 lb
ECTM4110T	ECTM4110T	82 %	40 Hp	324T	552 lb
ECTM2333T-5G	ECTM2333T-5G	83 %	15 Hp	254T	268 lb
ECTM2276T-G	ECTM2276T-G G	70 %	7.50 Hp	254T	302 lb
ECTM3615T-G-AO	ECTM3615T-G-AO G	78 %	5 Hp	182T	93 lb
ECTM3770T-G	ECTM3770T-G G	81 %	7.5 Hp	213T	198 lb
ECTM3665T-G-AO	ECTM3665T-G-AO G	79 %	5 Hp	184T	115 lb
ECTM4314T	ECTM4314T	87 %	60 Hp	364T	835 lb
ECTM3768T-5G	ECTM3768T-5G	69 %	5 Hp	215T	198 lb
ECTM4104T-G	ECTM4104T-G G	80 %	30 Hp	286T	437 lb
ECTM2334T	ECTM2334T	83 %	20 Hp	256T	293 lb
CTM3774T	CTM3774T	80 %	10 Hp	215T	170 lb
ECTM4111T-5G	ECTM4111T-5G	79 %	25 Hp	324T	605 lb
CTM3770T	CTM3770T	76 %	7.5 Hp	213T	164 lb

Common to all listed parts

Country or Territory of Origin	United States
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Insulation Class	F
Number of Phases	3-phase
Service Factor	1.15
Type of Duty	Continuous
Drive End Flange Type	Standard
