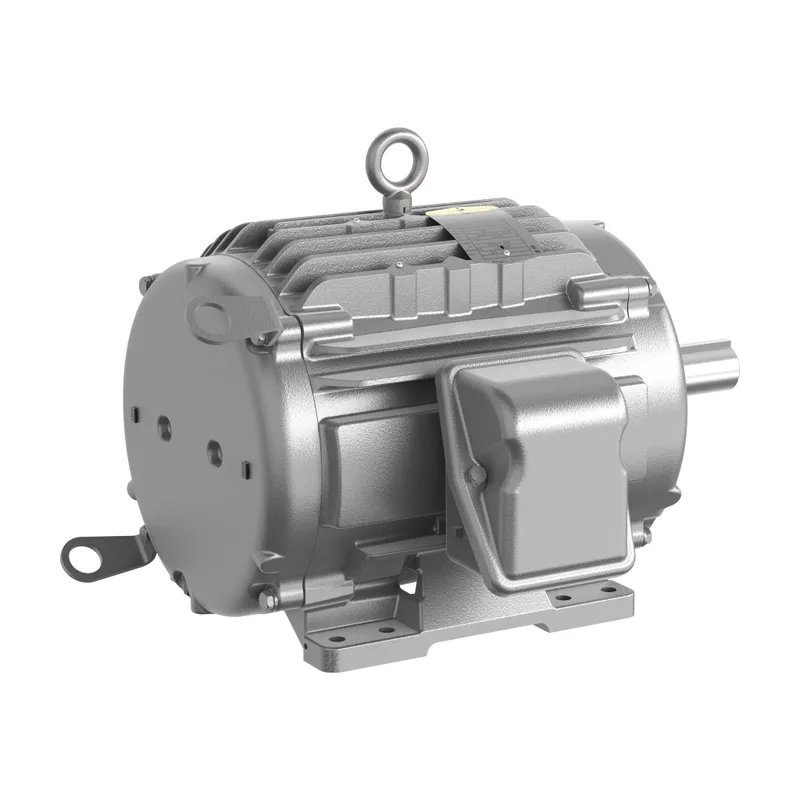

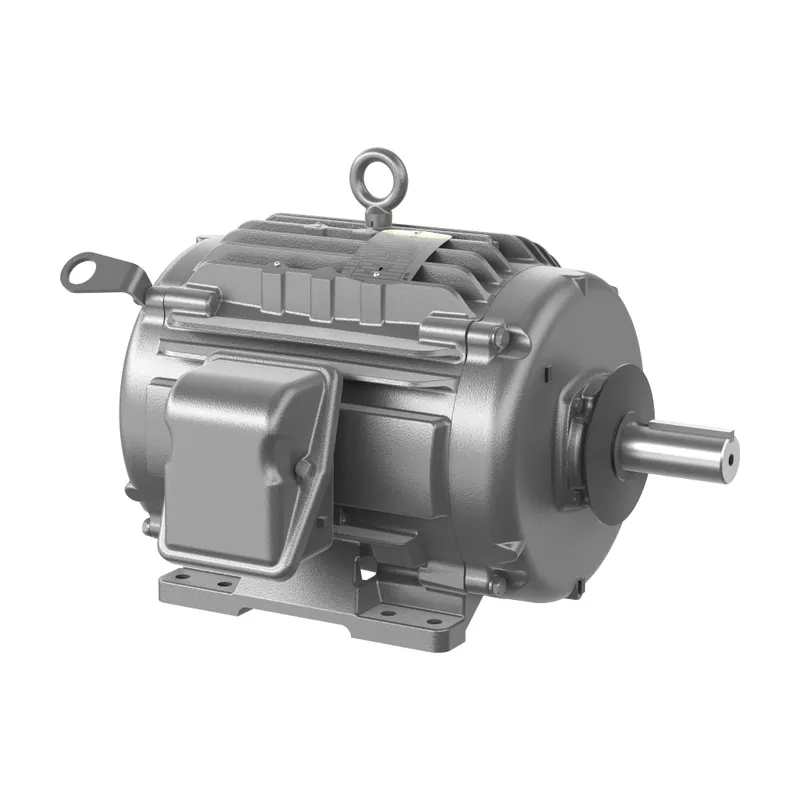

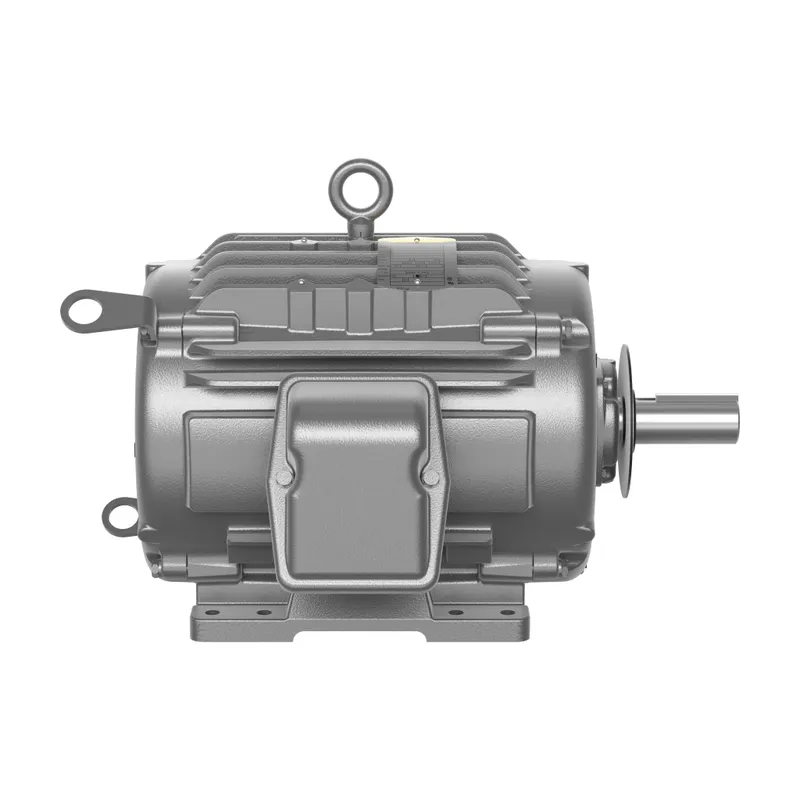

ABB ECTM2334T-G-AO

20 AIR OVERHP,1770RPM,3PH,60HZ,256T

MPN
ECTM2334T-G-AO
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB ECTM2334T-G-AO?

Chiller/Cooling Tower 20 Hp 230 V (ECTM2334T-G-AO)

Specifications

Ordering

Catalog NumberECTM2334T-G-AO G
Brand / LabelBaldor-Reliance®
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles4P
Number of Speedssingle_speed
Power Factor83 %
Rated Efficiency93 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect on line
Synchronous Speed (vsyn)1800 r/min
Output Power20 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEAO
Frame MaterialIron
Motor Frame Size256T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height19.625 in
Product Net Weight322 lb
Product Net Width23.75 in

Certificates and Declarations

Certification AgencyCSA, CSA EEV, NEMA_PREMIUM, UR

ECTM2334T-G-AO: frequently asked questions

When can ECTM2334T-G-AO be shipped?

ECTM2334T-G-AO is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ECTM2334T-G-AO in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ECTM2334T-G-AO and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECTM2334T-G-AO, subject to availability and destination.
