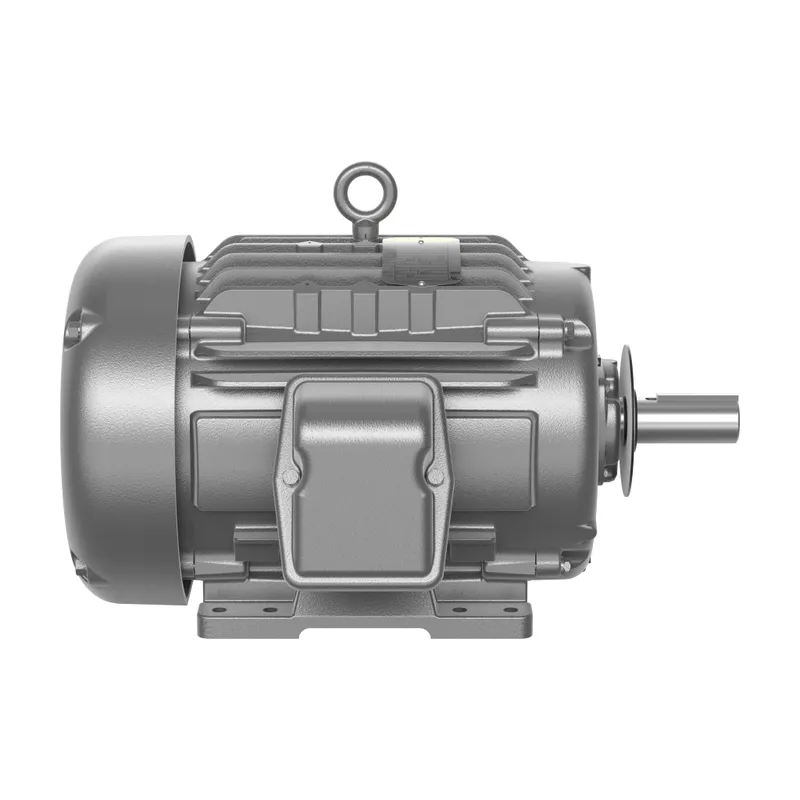

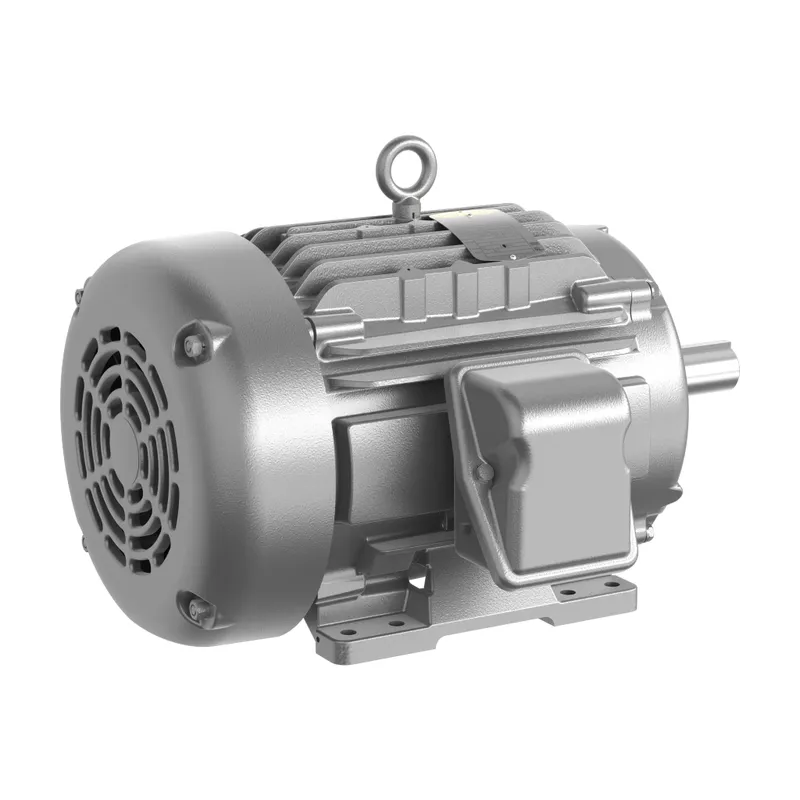

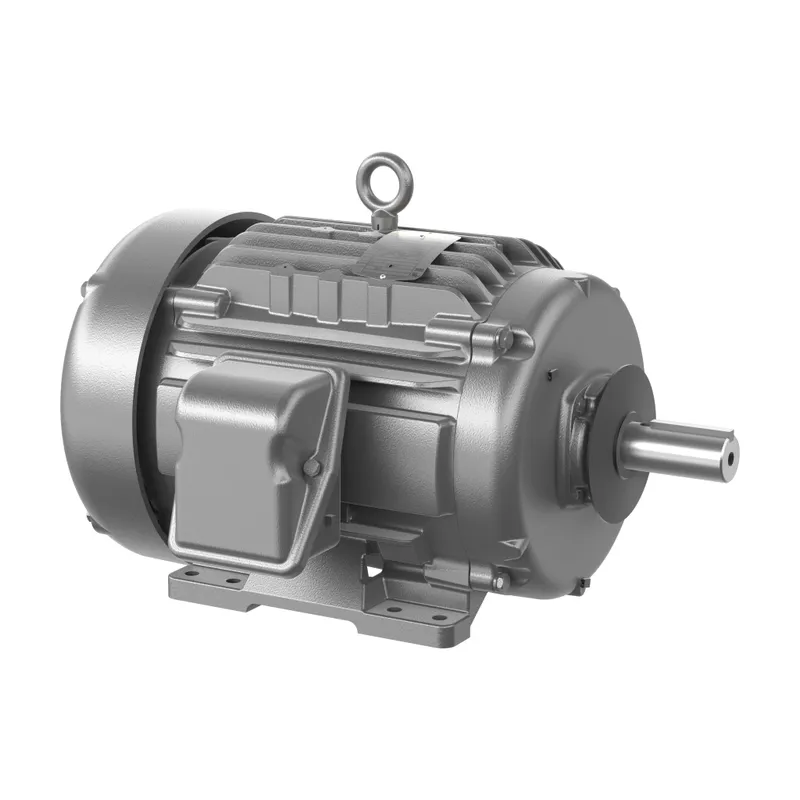

ABB ECTM2276T-5G

7.5HP,1180RPM,3PH,60HZ,254T,0954M,T

MPN: ECTM2276T-5G
Category: Chiller/Cooling Tower

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ECTM2276T-5G?

Chiller/Cooling Tower Motors 7.50 Hp 575 V (ECTM2276T-5G)

Specifications

Ordering

Catalog Number	ECTM2276T-5G
Brand / Label	Baldor-Reliance®
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	single_speed
Power Factor	70 %
Rated Efficiency	91 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	1200 r/min
Output Power	7.50 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Iron
Motor Frame Size	254T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	302 lb
Product Net Width	0 in

Certificates and Declarations

Certification Agency

CSA EEV, CURUSEEV, NEMA_PREMIUM
