ABB ECTM3615T-G-AO

5 AIR OVERHP,1755RPM,3PH,60HZ,182T

MPN
ECTM3615T-G-AO
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

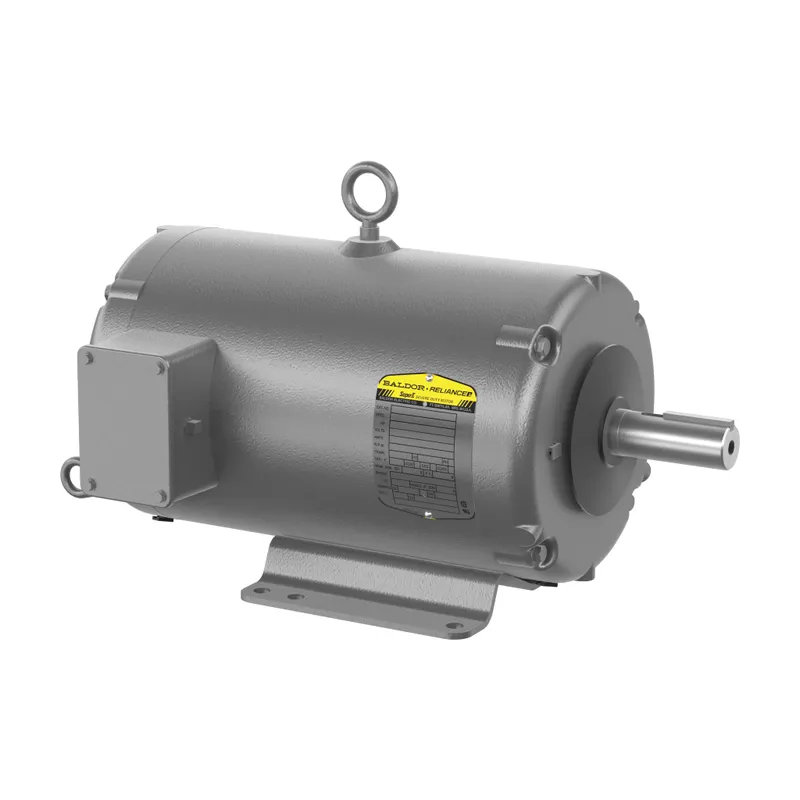

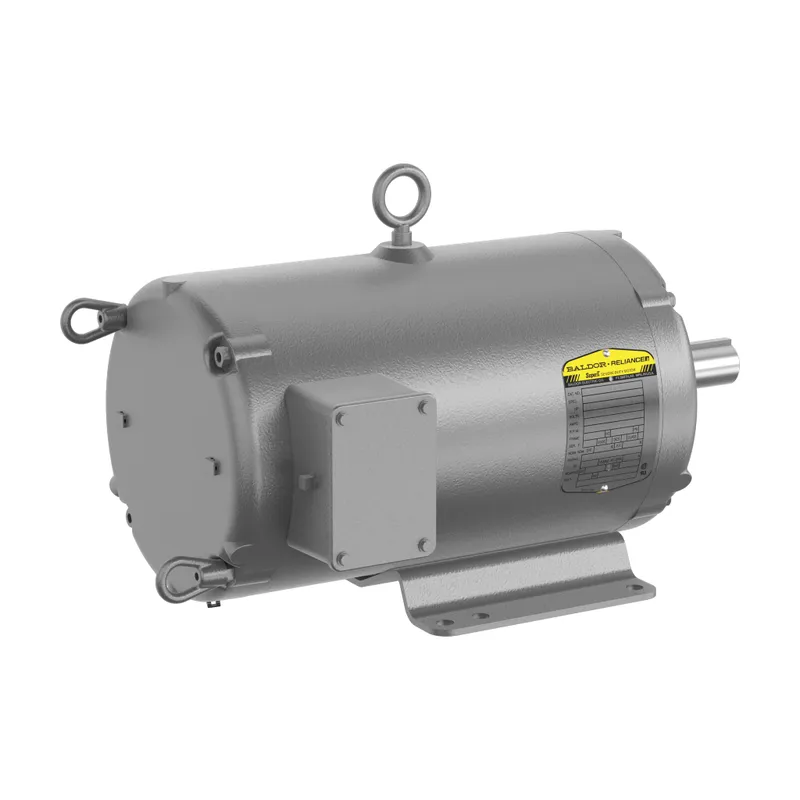

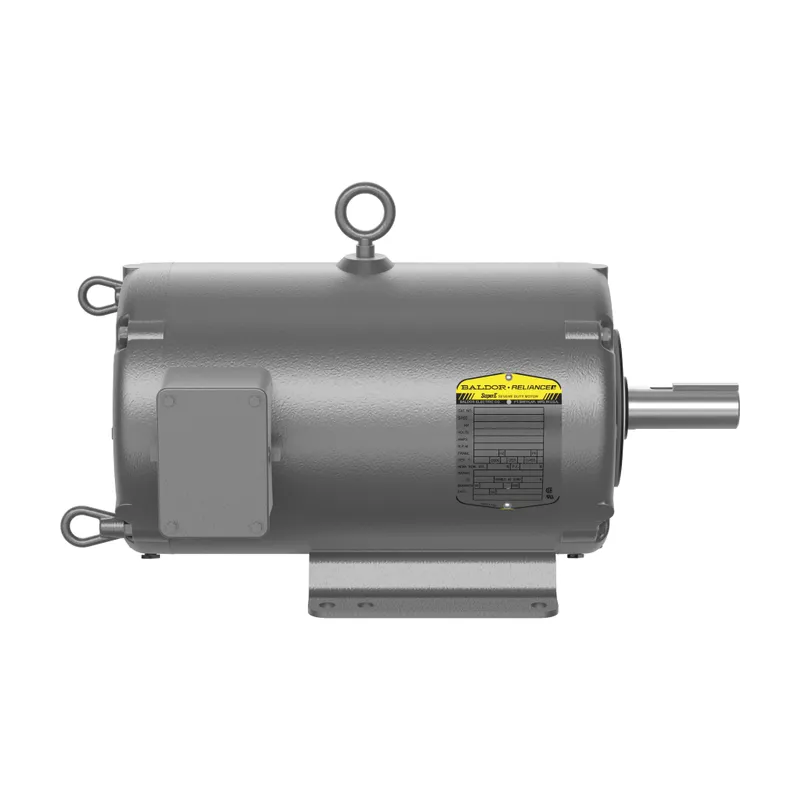

What is the ABB ECTM3615T-G-AO?

Chiller/Cooling Tower Motors 5 Hp 230 V (ECTM3615T-G-AO)

Specifications

Ordering

Catalog NumberECTM3615T-G-AO G
Brand / LabelBaldor-Reliance®
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency LevelIE3, Premium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of Speedssingle_speed
Power Factor78 %
Rated Efficiency89.50 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect on line
Synchronous Speed (vsyn)1800 r/min
Output Power5 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEAO
Frame MaterialSteel
Motor Frame Size182T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height0 in
Product Net Weight93 lb
Product Net Width0 in

Certificates and Declarations

Certification AgencyC UR US, CSA EEV, NEMA_PREMIUM

ECTM3615T-G-AO: frequently asked questions

When can ECTM3615T-G-AO be shipped?

ECTM3615T-G-AO is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ECTM3615T-G-AO in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ECTM3615T-G-AO and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECTM3615T-G-AO, subject to availability and destination.
