Home / ABB / Chiller/Cooling Tower / ABB ECTM4110T

ABB

ABB ECTM4110T

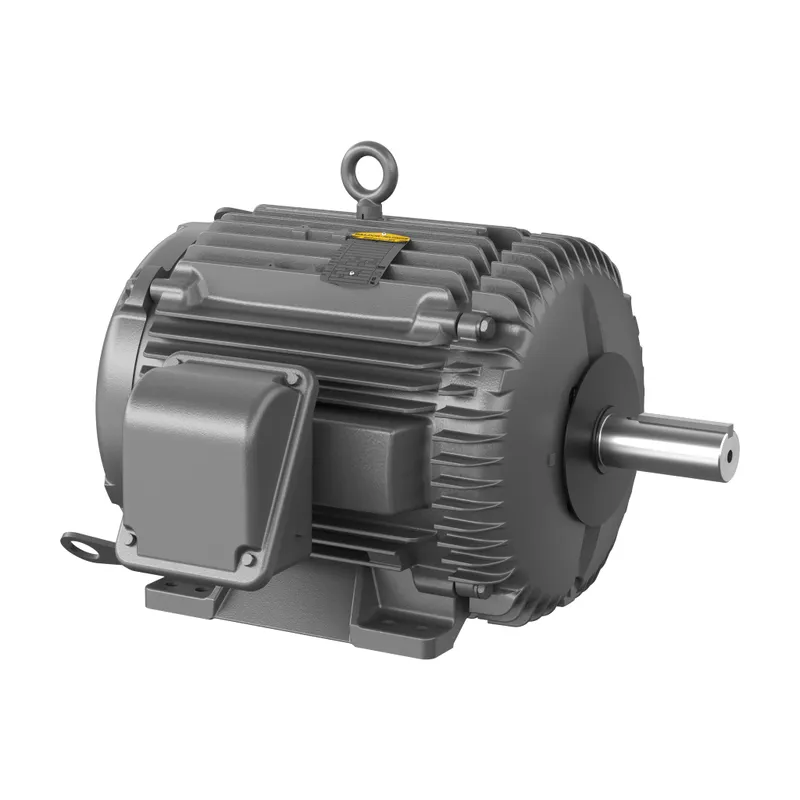

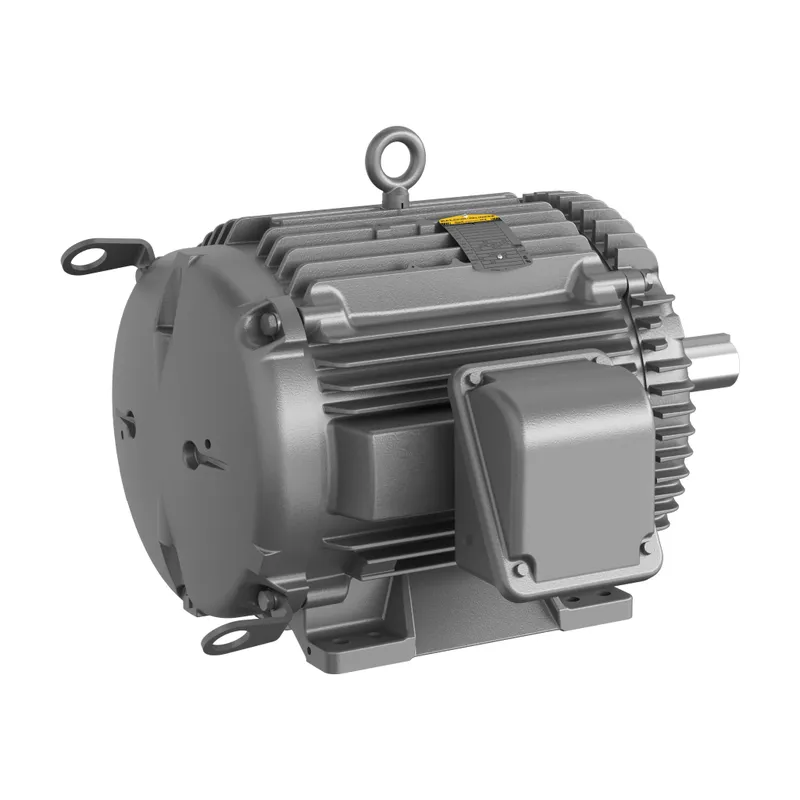

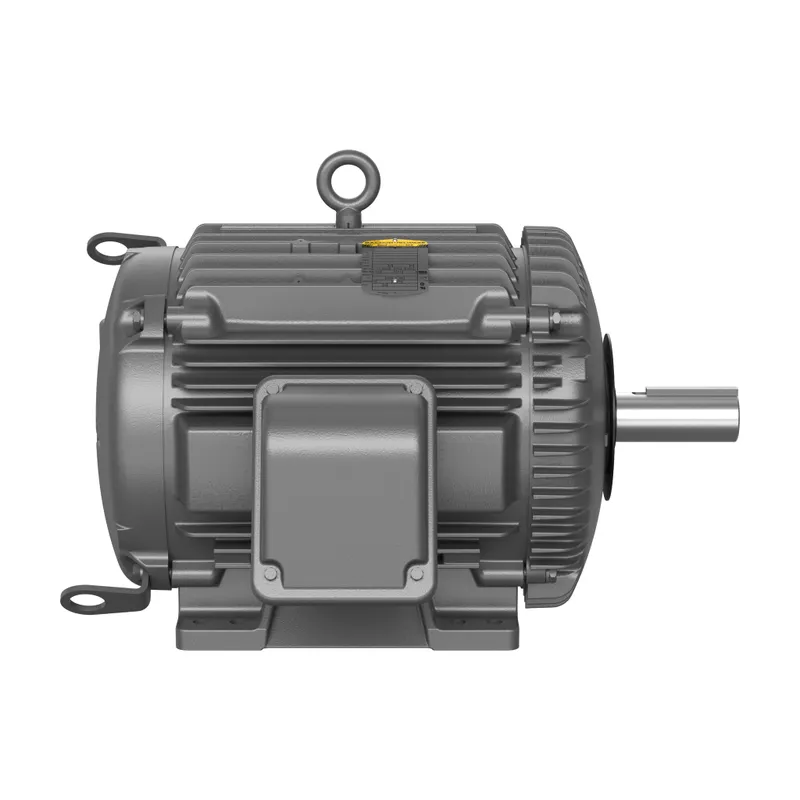

40 AIR OVERHP,1775RPM,3PH,60HZ,324T

MPN: ECTM4110T
Category: Chiller/Cooling Tower

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ECTM4110T?

Chiller/Cooling Tower 40 Hp 230 V (ECTM4110T)

Specifications

Ordering

Catalog Number	ECTM4110T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	82 %
Rated Efficiency	94.10 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	40 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEAO
Frame Material	Cast Iron
Motor Frame Size	324T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	23 in
Product Net Weight	552 lb
Product Net Width	26.5 in
Dimension Diagram	12LYH727

Certificates and Declarations

Certification Agency	CSA EEV, CURUS, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1318 >> Heating and cooling system motor AC
ETIM 7	EC001851 - Electric motor
