ACH580 Parts

Browse Subcategories
ACH580-01 (301)ACH580-31 (46)ACH580-07 (13)ACH580-34 (12)
Showing 577–600 of 794 parts

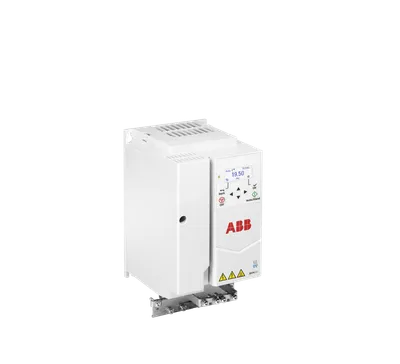

ABB ACH180-04S-17A0-4 – LV AC micro drive module for HVAC, IEC: Pn 7.5 kW, 17.0 A, 400 V, UL: Pld 10 Hp, 14.0 A, 460 V ( )
ABB
ACH180-04S-17A0-4

LV AC micro drive module for HVAC, IEC: Pn 7.5 kW, 17.0 A

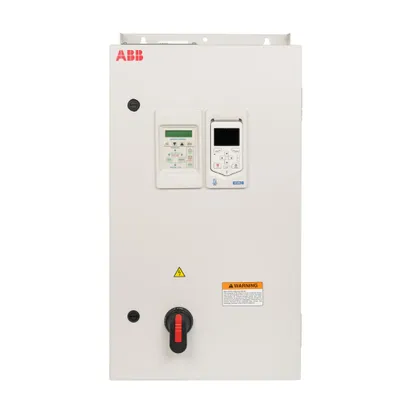

ABB ACH580-BDR-077A-4 – HVAC packaged drive with e-clipse bypass and disconnect US, UL: Pld 60 Hp, 77 A, 460 V ( )
ABB
ACH580-BDR-077A-4

HVAC packaged drive with e-clipse bypass and disconnect US

ABB ACH531-01-033A-4 – LV AC wall-mounted drive for HVAC, IEC: Pn 15 kW, 33 A ( )
ABB
ACH531-01-033A-4

LV AC wall-mounted drive for HVAC, IEC: Pn 15 kW, 33 A ( )

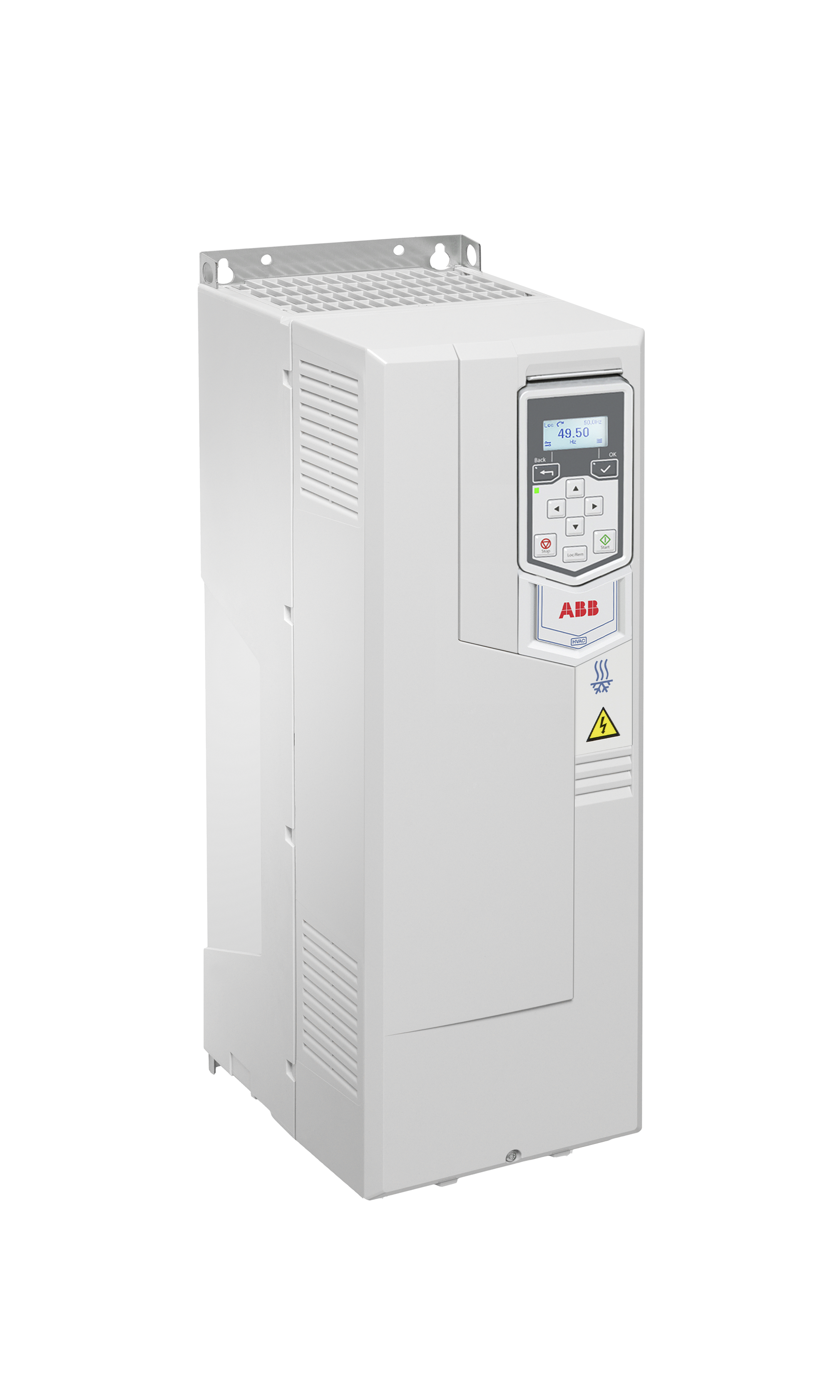

ABB ACH531-01-073A-4 – LV AC wall-mounted drive for HVAC, IEC: Pn 37 kW, 73 A ( )
ABB
ACH531-01-073A-4

LV AC wall-mounted drive for HVAC, IEC: Pn 37 kW, 73 A ( )

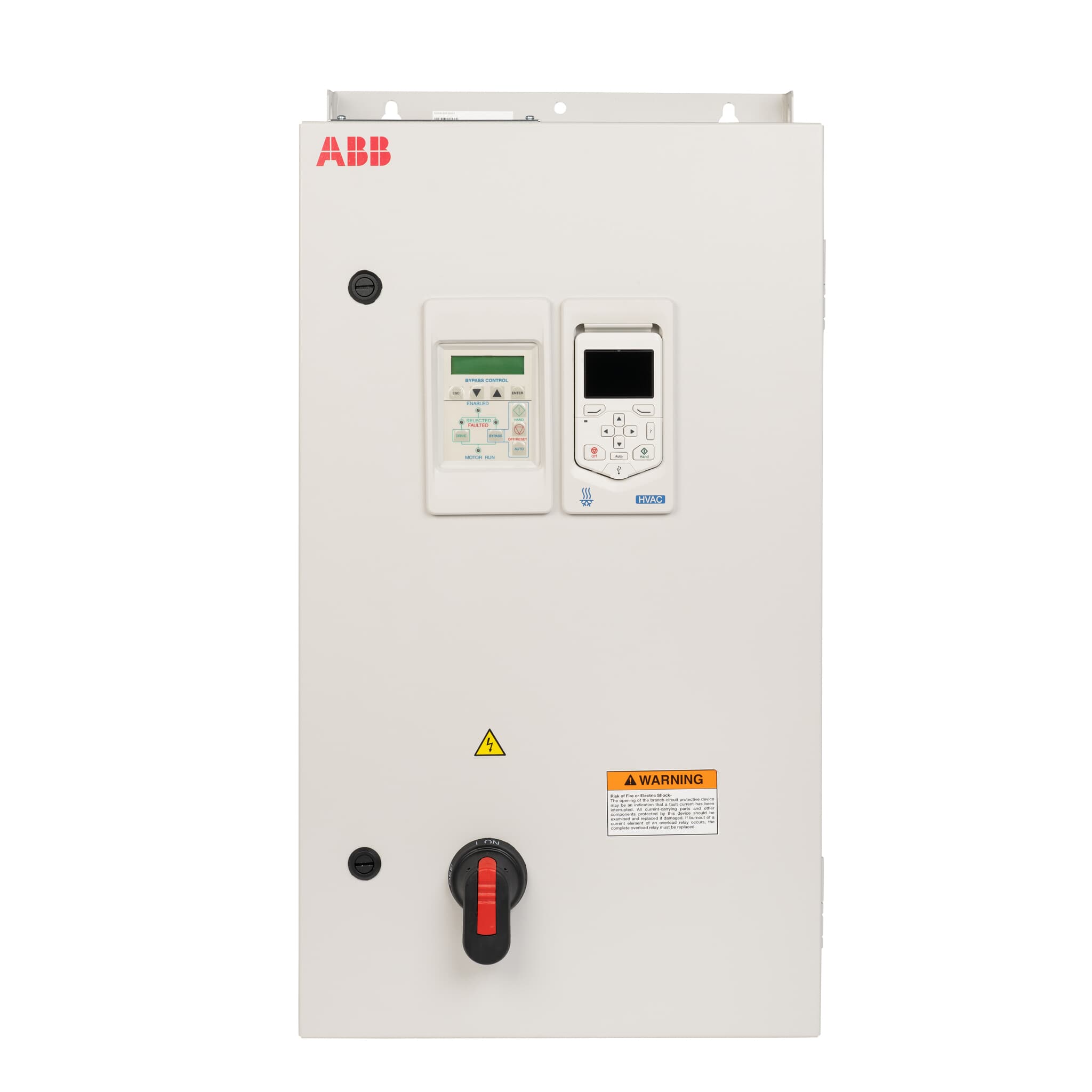

ABB ACH580-BDR-052A-4 – HVAC packaged drive with e-clipse bypass and disconnect US, UL: Pld 40 Hp, 52 A, 460 V ( )
ABB
ACH580-BDR-052A-4

HVAC packaged drive with e-clipse bypass and disconnect US

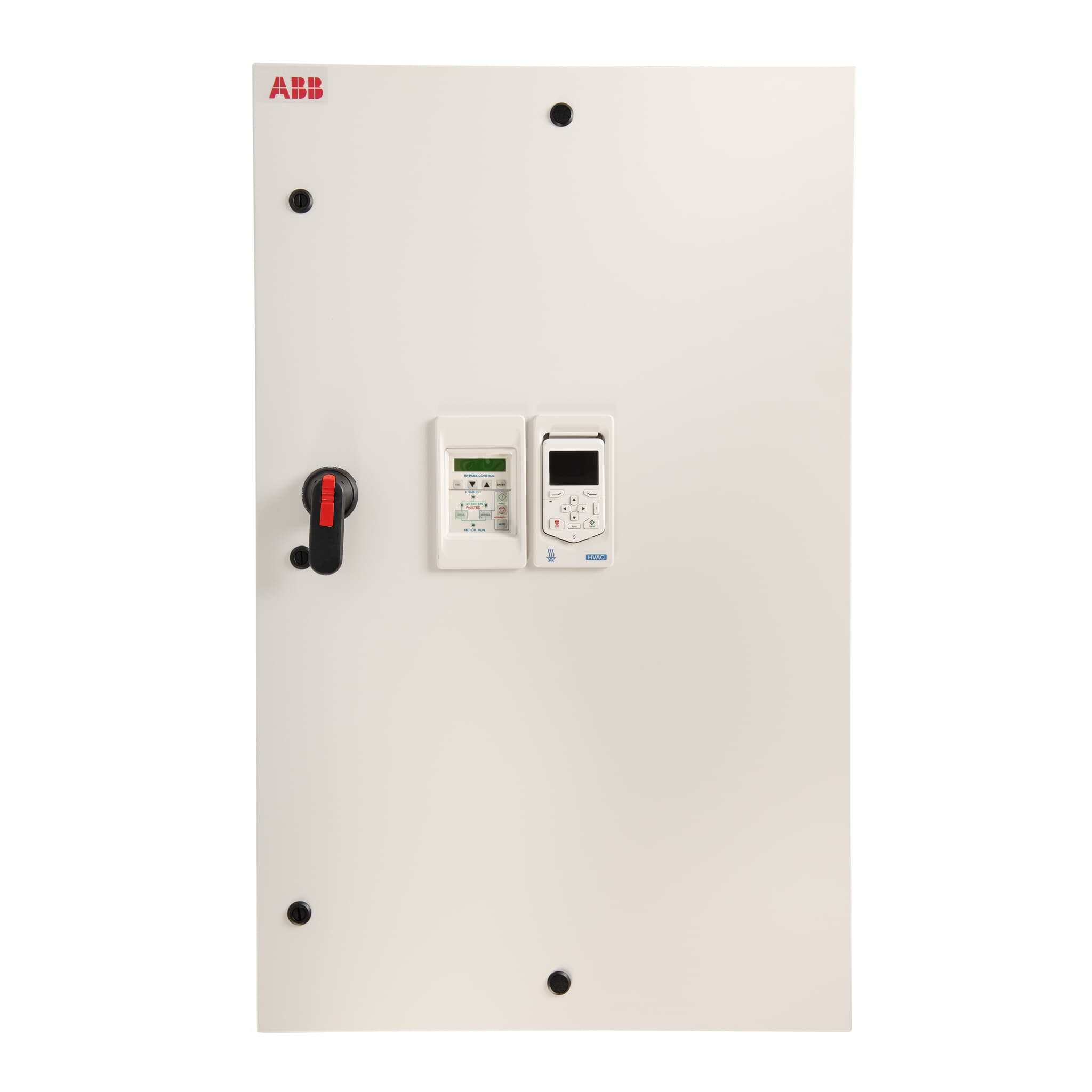

ABB ACH580-BDR-240A-4 – HVAC packaged drive with e-clipse bypass and disconnect US, UL: Pld 200 Hp, 240 A, 460 V ( )
ABB
ACH580-BDR-240A-4

HVAC packaged drive with e-clipse bypass and disconnect US

Compare ACH580

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNProduct Net WeightEnclosure Type NEMAInput Voltage (Uin)Output Current, Light-Overload Use (UL)Output Power, Light-Overload Use (UL)
ACH580-PCR-059A-2+B0580 kg kgType3R208 … 240 V V7.5 A A2 Hp
ACH580-BDR-022A-6+B0560 kg kgType12500 … 600 V V22 A A20 Hp
ACH580-BDR-09A0-6+B0560 kg kgType12500 … 600 V V9 A A7.5 Hp
ACH580-PDR-125A-6+B0580 kg kgType3R500 … 600 V V125 A A125 Hp
ACH580-PDR-099A-6+B0580 kg kgType3R500 … 600 V V99 A A100 Hp
ACH580-BDR-027A-6+B0560 kg kgType12500 … 600 V V27 A A25 Hp
ACH580-PCR-017A-2+B0580 kg kgType3R208 … 240 V V4.6 A A1 Hp
ACH580-PCR-10A6-2+B0580 kg kgType3R208 … 240 V V46.2 A A15 Hp
ACH580-BDR-06A1-6+B0560 kg kgType12500 … 600 V V6.1 A A5.0 Hp
ACH580-BDR-017A-6+B0560 kg kgType12500 … 600 V V17 A A15 Hp
ACH580-BCR-075A-2+B0580 kg kgType3R208 … 240 V V74.8 A A25 Hp

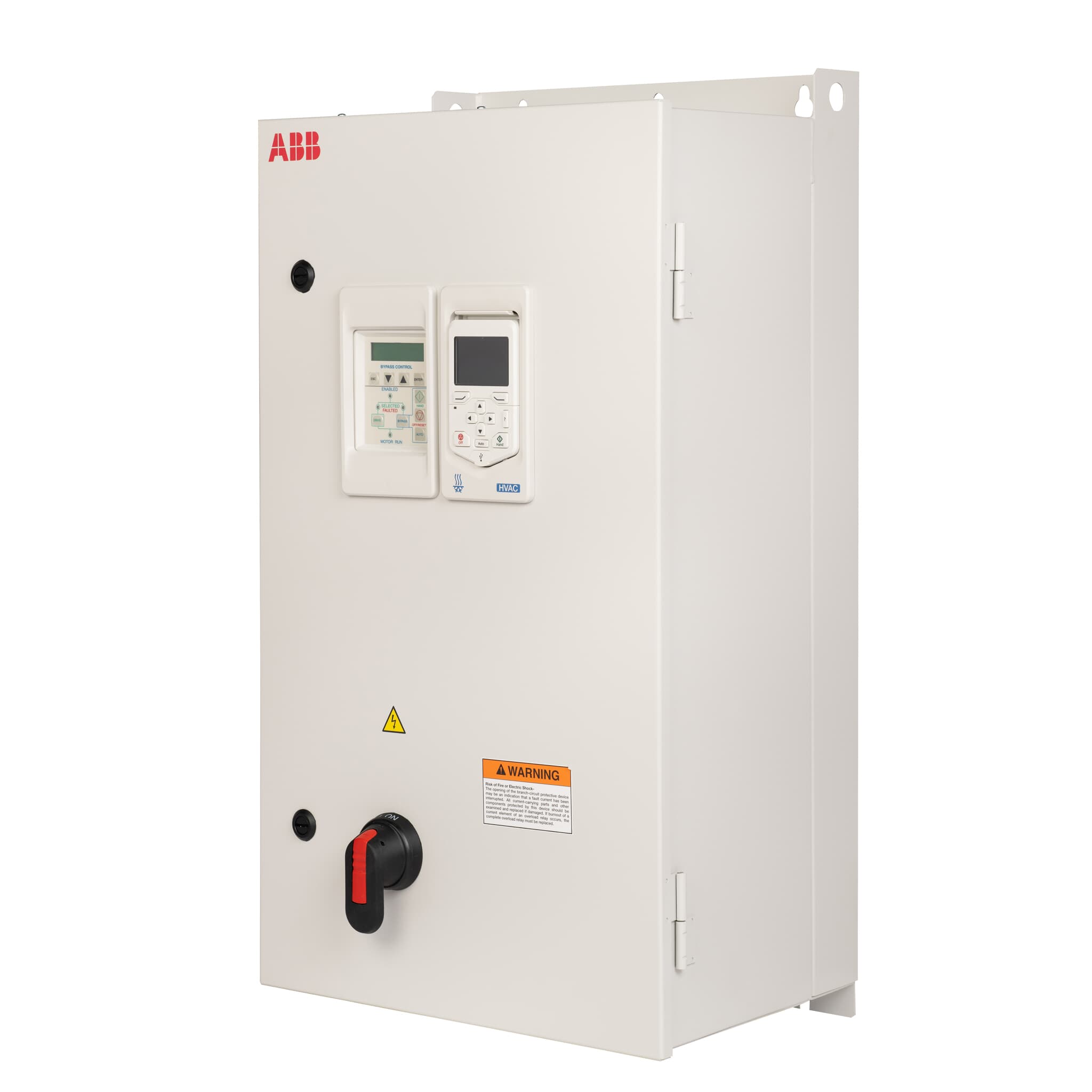

ACH580-BDR-011A-6+B0560 kg kgType12500 … 600 V V11 A A10 Hp

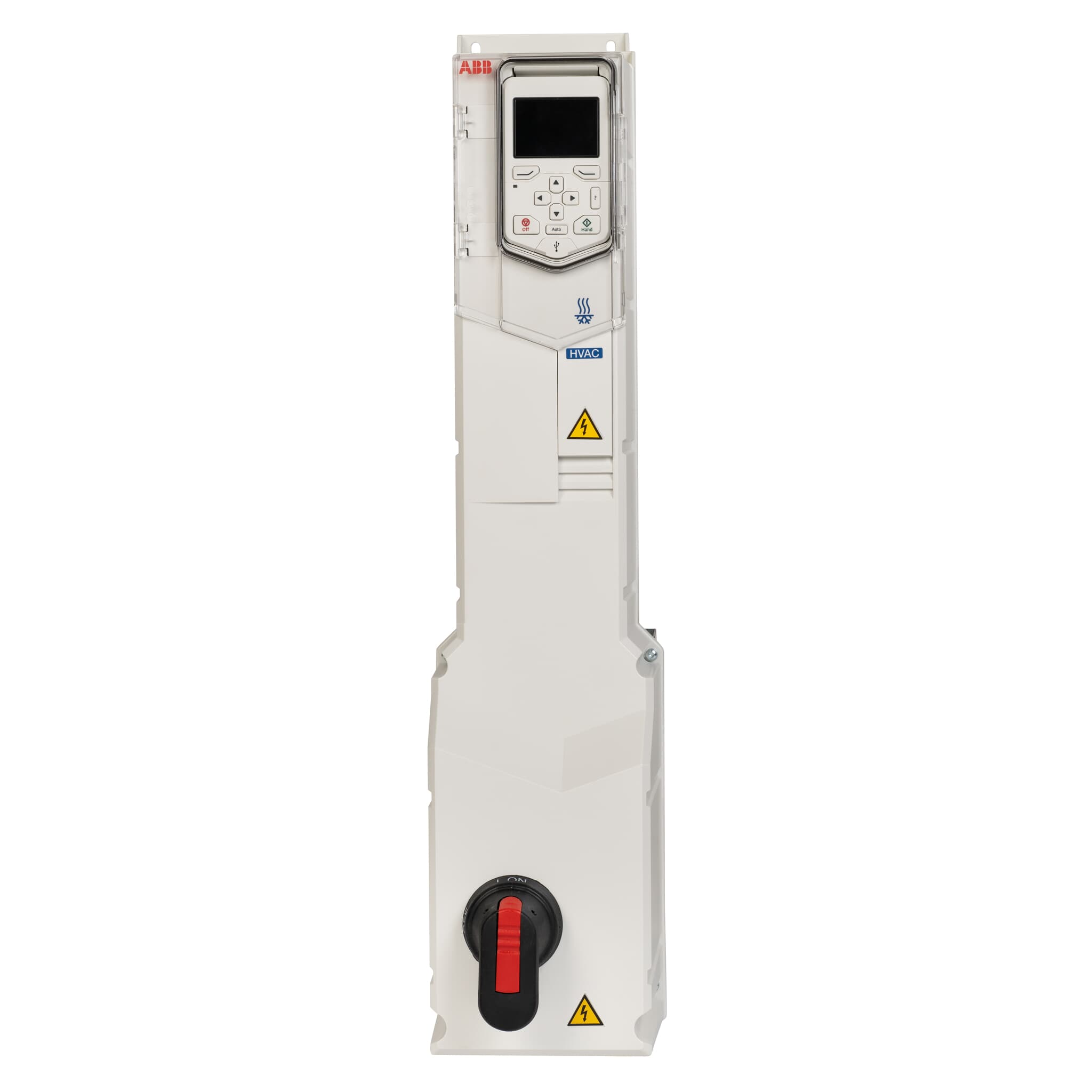

ACH580-PDR-077A-6+B0580 kg kgType3R500 … 600 V V77 A A75 Hp
ACH180-04S-17A0-42.01 kg, 4.43 lb kgOpen Type380 ... 480 V V14.0 A A10 Hp
ACH580-PCR-031A-2+B0580 kg kgType3R208 … 240 V V6.6 A A1.5 Hp
ACH580-PCR-075A-2+B0580 kg kgType3R208 … 240 V V88 A A30 Hp

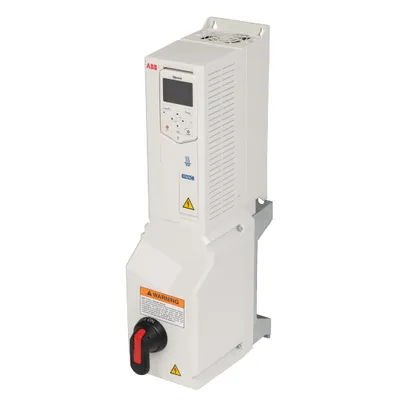

ACH580-PCR-046A-2+B0580 kg kgType3R208 … 240 V V74.8 A A25 Hp
ACH580-BDR-077A-4139 lbType1440 … 480 V V77 A A60 Hp

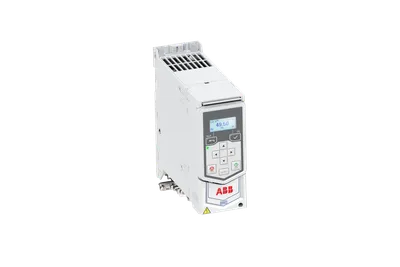

ACH531-01-09A4-4+J4001.6 kg kgOpen Type380 … 500 V V——
ACH531-01-033A-412 kg kgOpen Type380 … 480 V V——
ACH531-01-073A-418.5 kg kgOpen Type380 … 480 V V——
ACH531-01-07A2-4+J4001.6 kg kgOpen Type380 … 500 V V——
ACH580-BDR-052A-4139 lbType1440 … 480 V V52 A A40 Hp
ACH580-BDR-240A-4390 lbType1440 … 480 V V240 A A200 Hp

Common to all listed parts

Minimum Order Quantity1 piece
Order Multiple1 piece
Quote OnlyNo
Selling Unit of Measurepiece
Number of Phases3-phase
