Home / Motion / Drives / Low voltage AC drives / HVACR drives / ACH580

ACH580 Parts

Browse Subcategories

ACH580-01 (301)ACH580-31 (46)ACH580-07 (13)ACH580-34 (12)

ABB

ACH580-PCR-052A-6+B058

HVAC drive with circuit breaker disconnect US, UL: Pld 5 Hp

ABB

ACH580-PCR-144A-6+B058

HVAC drive with circuit breaker disconnect US

ABB

ACH580-PCR-099A-6+B058

HVAC drive with circuit breaker disconnect US

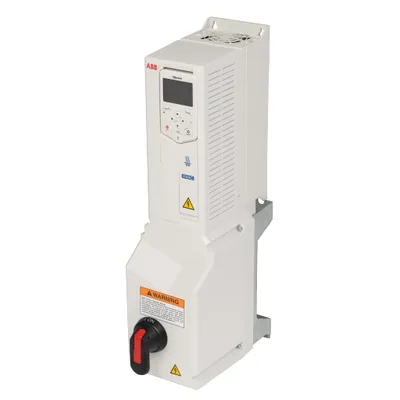

ABB

ACH580-PCR-062A-6+B058

HVAC drive with circuit breaker disconnect US

ABB

ACH580-PCR-041A-6+B058

HVAC drive with circuit breaker disconnect US

ABB

ACH580-PCR-034A-4

HVAC drive with circuit breaker disconnect US

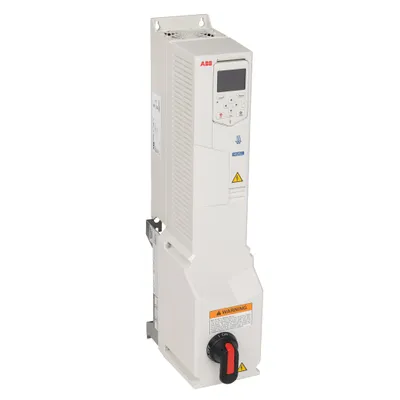

ABB

ACH580-PCR-044A-4

HVAC drive with circuit breaker disconnect US

ABB

ACH580-PCR-04A6-2

HVAC drive with circuit breaker disconnect US, UL: Pld 1 Hp

ABB

ACH580-PCR-017A-2

HVAC drive with circuit breaker disconnect US, UL: Pld 5 Hp

ABB

ACH580-PCR-09A0-6+B056

HVAC drive with circuit breaker disconnect US

ABB

ACH580-PCR-011A-6+B056

HVAC drive with circuit breaker disconnect US, UL: Pld 2 Hp

ABB

ACH580-PCR-022A-6+B056

HVAC drive with circuit breaker disconnect US, UL: Pld 3 Hp

ABB

ACH580-BCR-022A-6+B058

HVAC packaged drive with e-clipse bypass and circuit…

ABB

ACH580-PDR-02A7-6+B058

HVAC drive with disconnect US, UL: Pld 2 Hp, 2.7 A ( )

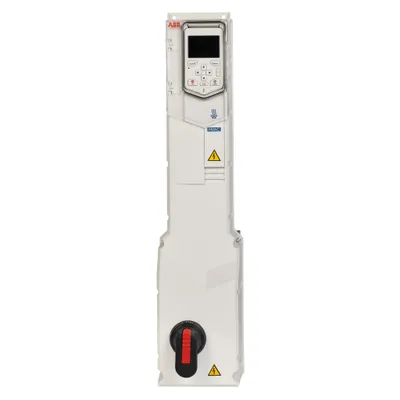

ABB

ACH580-PDR-06A6-2+B056

HVAC drive with disconnect US, UL: Pld 1.5 Hp, 6.6 A ( )

ABB

ACH580-BCR-06A6-2

HVAC packaged drive with e-clipse bypass and circuit…

ABB

ACH580-PCR-06A6-2

HVAC drive with circuit breaker disconnect US

ABB

ACH580-PCR-017A-6+B056

HVAC drive with circuit breaker disconnect US

ABB

ACH580-PDR-075A-2

HVAC drive with disconnect US, UL: Pld 25 Hp, 74.8 A

ABB

ACH580-PDR-06A1-6+B058

HVAC drive with disconnect US, UL: Pld 5 Hp, 6.1 A ( )

ABB

ACH580-PCR-027A-6+B056

HVAC drive with circuit breaker disconnect US

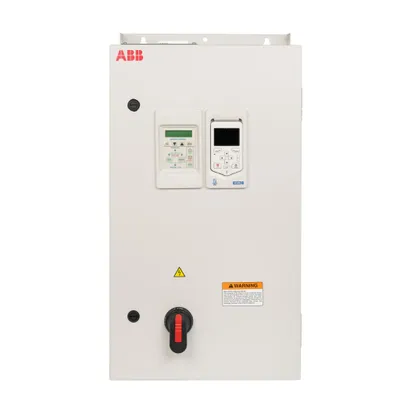

ABB

ACH580-BCR-07A5-2

HVAC packaged drive with e-clipse bypass and circuit…

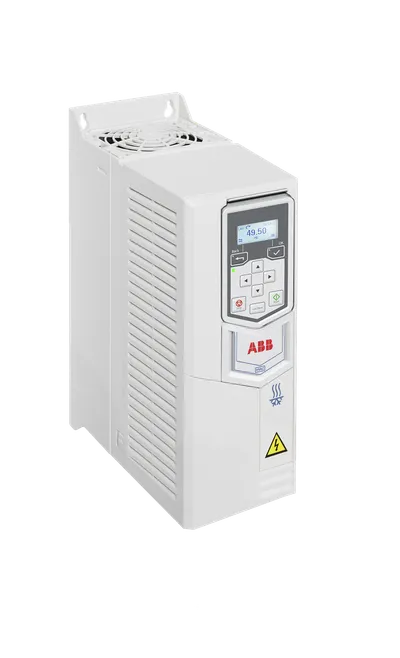

ABB

ACH531-01-07A3-4

LV AC wall-mounted drive for HVAC, IEC: Pn 3 kW, 7.2 A ( )

ABB

ACH531-01-02A7-4+X1663

LV AC wall-mounted drive for HVAC, IEC: Pn 0.75 kW

Compare ACH580

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product Net Weight	Enclosure Type NEMA	Input Voltage (Uin)	Output Current, Light-Overload Use (UL)	Output Power, Light-Overload Use (UL)
ACH580-PCR-052A-6+B058	0 kg kg	Type3R	500 … 600 V V	6.1 A A	5 Hp
ACH580-PCR-144A-6+B058	0 kg kg	Type3R	500 … 600 V V	144 A A	150 Hp
ACH580-PCR-099A-6+B058	0 kg kg	Type3R	500 … 600 V V	9 A A	7.5 Hp
ACH580-PCR-062A-6+B058	0 kg kg	Type3R	500 … 600 V V	77 A A	75 Hp
ACH580-PCR-041A-6+B058	0 kg kg	Type3R	500 … 600 V V	62 A A	60 Hp
ACH580-PCR-034A-4	39 lb	Type1	380 … 480 V V	34 A A	25 Hp
ACH580-PCR-044A-4	39 lb	Type1	380 … 480 V V	44 A A	30 Hp
ACH580-PCR-04A6-2	18.1 lb	Type1	208 … 240 V V	4.6 A A	1 Hp
ACH580-PCR-017A-2	18.1 lb	Type1	208 … 240 V V	16.7 A A	5 Hp
ACH580-PCR-09A0-6+B056	0 kg kg	Type12	500 … 600 V V	27 A A	25 Hp
ACH580-PCR-011A-6+B056	0 kg kg	Type12	500 … 600 V V	2.7 A A	2 Hp
ACH580-PCR-022A-6+B056	0 kg kg	Type12	500 … 600 V V	3.9 A A	3 Hp
ACH580-BCR-022A-6+B058	0 kg kg	Type3R	500 … 600 V V	22 A A	20 Hp
ACH580-PDR-02A7-6+B058	0 kg kg	Type3R	500 … 600 V V	2.7 A A	2 Hp
ACH580-PDR-06A6-2+B056	0 kg kg	Type12	208 … 240 V V	6.6 A A	1.5 Hp
ACH580-BCR-06A6-2	84 lb	Type1	208 … 240 V V	6.6 A A	1.5 Hp
ACH580-PCR-06A6-2	18.1 lb	Type1	208 … 240 V V	6.6 A A	1.5 Hp
ACH580-PCR-017A-6+B056	0 kg kg	Type12	500 … 600 V V	32 A A	30 Hp
ACH580-PDR-075A-2	60 lb	Type1	208 … 240 V V	74.8 A A	25 Hp
ACH580-PDR-06A1-6+B058	0 kg kg	Type3R	500 … 600 V V	6.1 A A	5 Hp
ACH580-PCR-027A-6+B056	0 kg kg	Type12	500 … 600 V V	41 A A	40 Hp
ACH580-BCR-07A5-2	84 lb	Type1	208 … 240 V V	7.5 A A	2 Hp
ACH531-01-07A3-4	4 kg kg	Open Type	380 … 480 V V	—	—
ACH531-01-02A7-4+X1663	4 kg kg	Open Type	380 ... 480 V V	—	—

Common to all listed parts

Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Number of Phases	3-phase
