ACH580 Parts

Browse Subcategories

ACH580-01 (301)ACH580-31 (46)ACH580-07 (13)ACH580-34 (12)

ABB

ACH580-3PDR-240A-4

HVAC packaged ultra-low harmonic drive with non-fused…

ABB

ACH580-3BDR-156A-4

HVAC Enclosed ultra-low harmonic drive with non-fused…

ABB

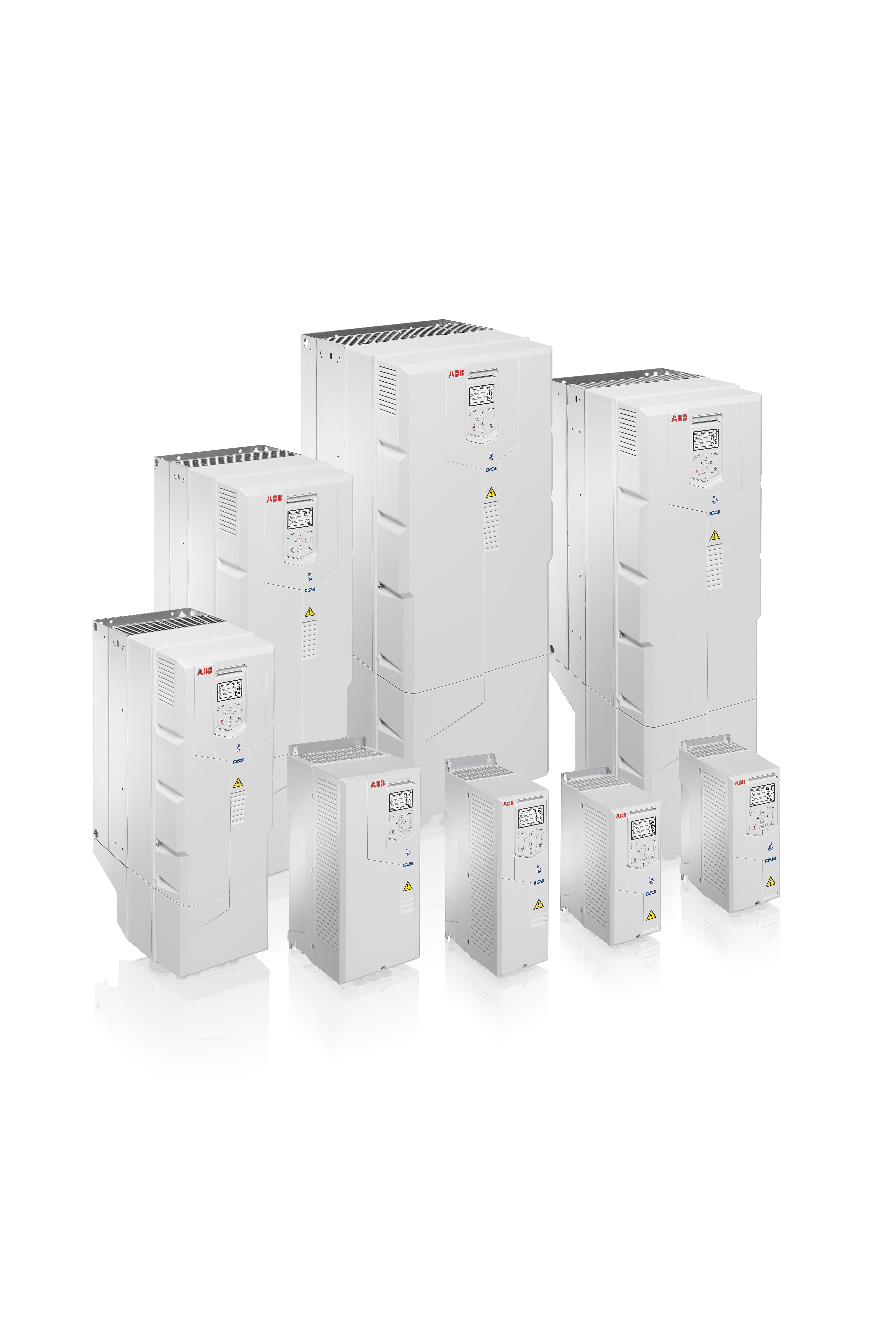

ACH580-3PCR-361A-4

HVAC packaged ultra-low harmonic drive with circuit breaker

ABB

ACH580-3PCR-414A-4

HVAC packaged ultra-low harmonic drive with circuit breaker

ABB

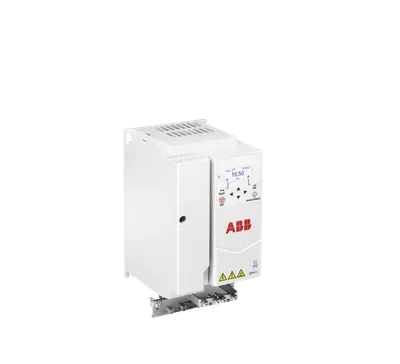

ACH180-04S-17A5-2

LV AC micro drive module for HVAC, IEC: Pn 4.0 kW, 17.5 A

ABB

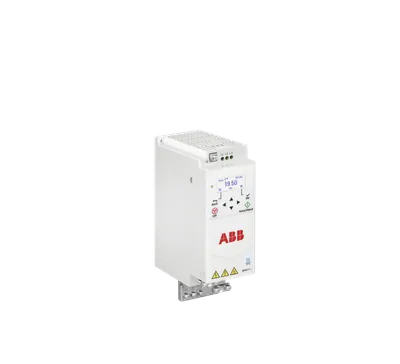

ACH180-04S-07A8-1

LV AC micro drive module for HVAC, IEC: Pn 1.5 kW, 7.8 A

ABB

ACH580-PDR-077A-4+B058

HVAC drive with disconnect US, UL: Pld 60 Hp, 77 A ( )

ABB

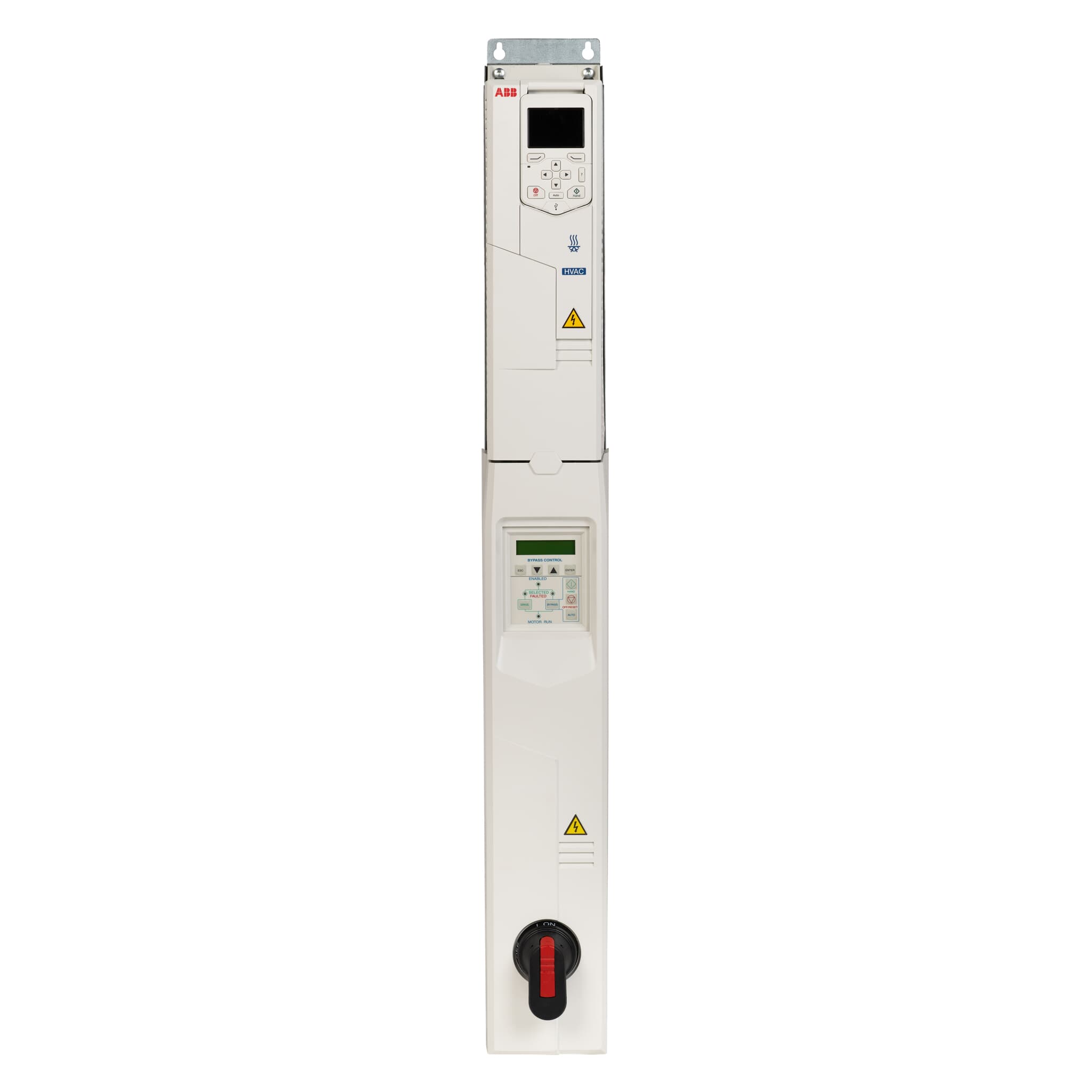

ACH580-VCR-02A7-6

HVAC drive with vertical e-clipse bypass and circuit…

ABB

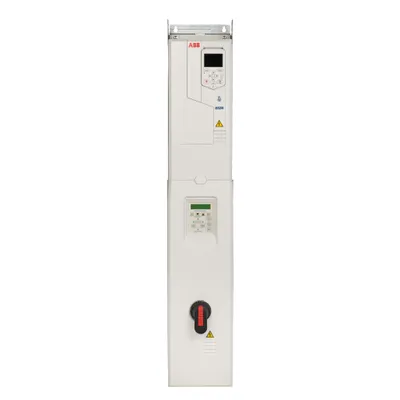

ACH580-VCR-03A9-6

HVAC drive with vertical e-clipse bypass and circuit…

ABB

ACH580-PDR-044A-4+B058

HVAC drive with disconnect US, UL: Pld 30 Hp, 44 A ( )

ABB

ACH580-PDR-052A-4+B058

HVAC drive with disconnect US, UL: Pld 40 Hp, 52 A ( )

ABB

ACH531-01-018A-4+X1663

LV AC wall-mounted drive for HVAC, IEC: Pn 7.5 kW, 17 A ( )

ABB

ACH580-PDR-052A-6+B058

HVAC drive with disconnect US, UL: Pld 50 Hp, 52 A ( )

ABB

ACH580-PDR-062A-6+B058

HVAC drive with disconnect US, UL: Pld 60 Hp, 62 A ( )

ABB

ACH531-01-018A-4+0J404

LV AC wall-mounted drive for HVAC, IEC: Pn 7.5 kW, 17 A ( )

ABB

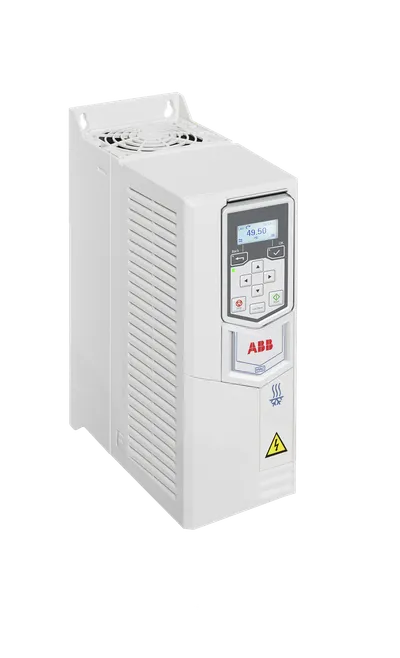

ACH531-01-12A7-4+P974

LV AC wall-mounted drive for HVAC, IEC: Pn 5.5 kW

ABB

ACH580-PCR-024A-2+B058

HVAC drive with circuit breaker disconnect US

ABB

ACH580-BCR-046A-2+B058

HVAC packaged drive with e-clipse bypass and circuit…

ABB

ACH580-BCR-059A-2+B058

HVAC packaged drive with e-clipse bypass and circuit…

ABB

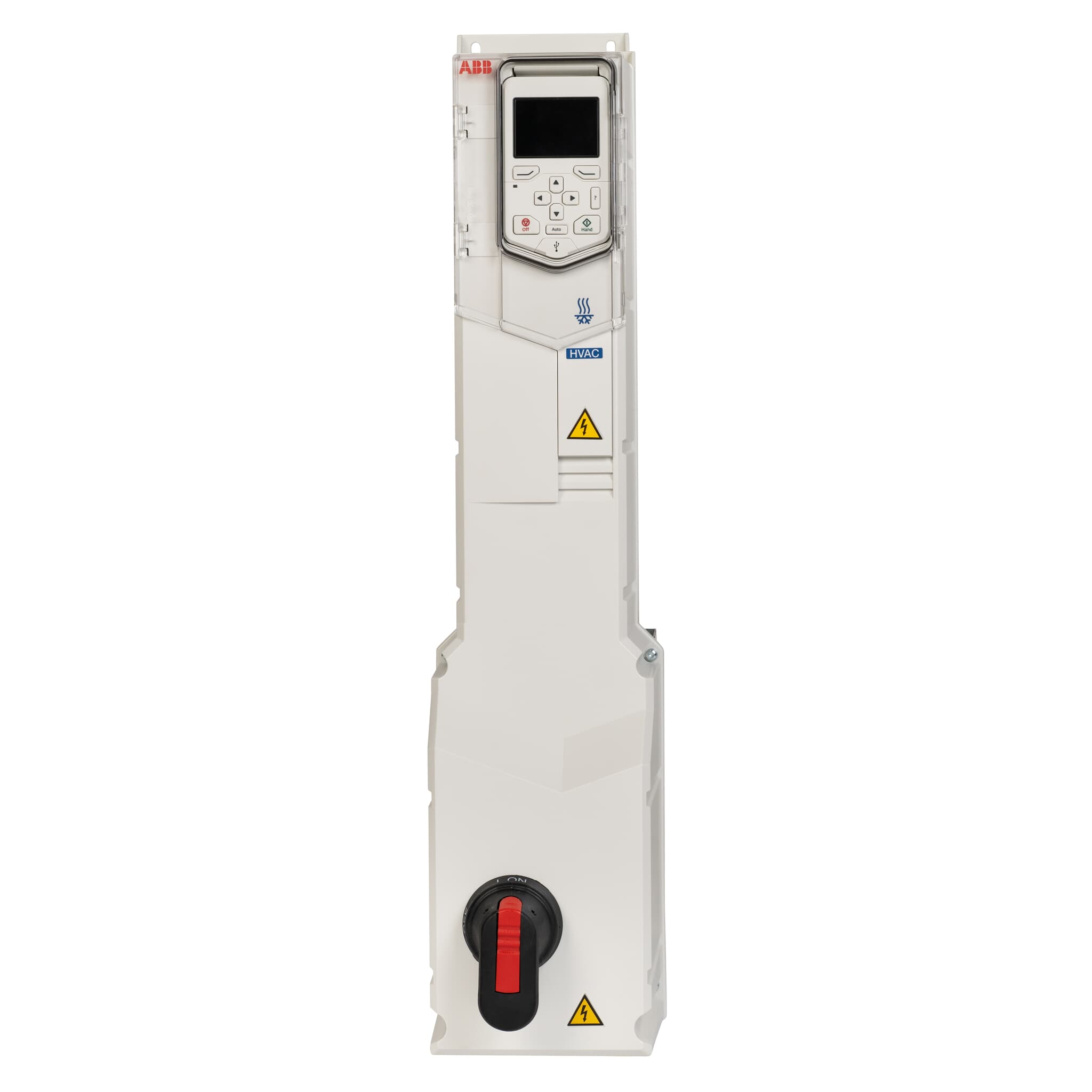

ACH580-PDR-144A-6+B058

HVAC drive with disconnect US, UL: Pld 150 Hp, 144 A ( )

ABB

ACH580-BDR-032A-6+B056

HVAC packaged drive with e-clipse bypass and disconnect US

ABB

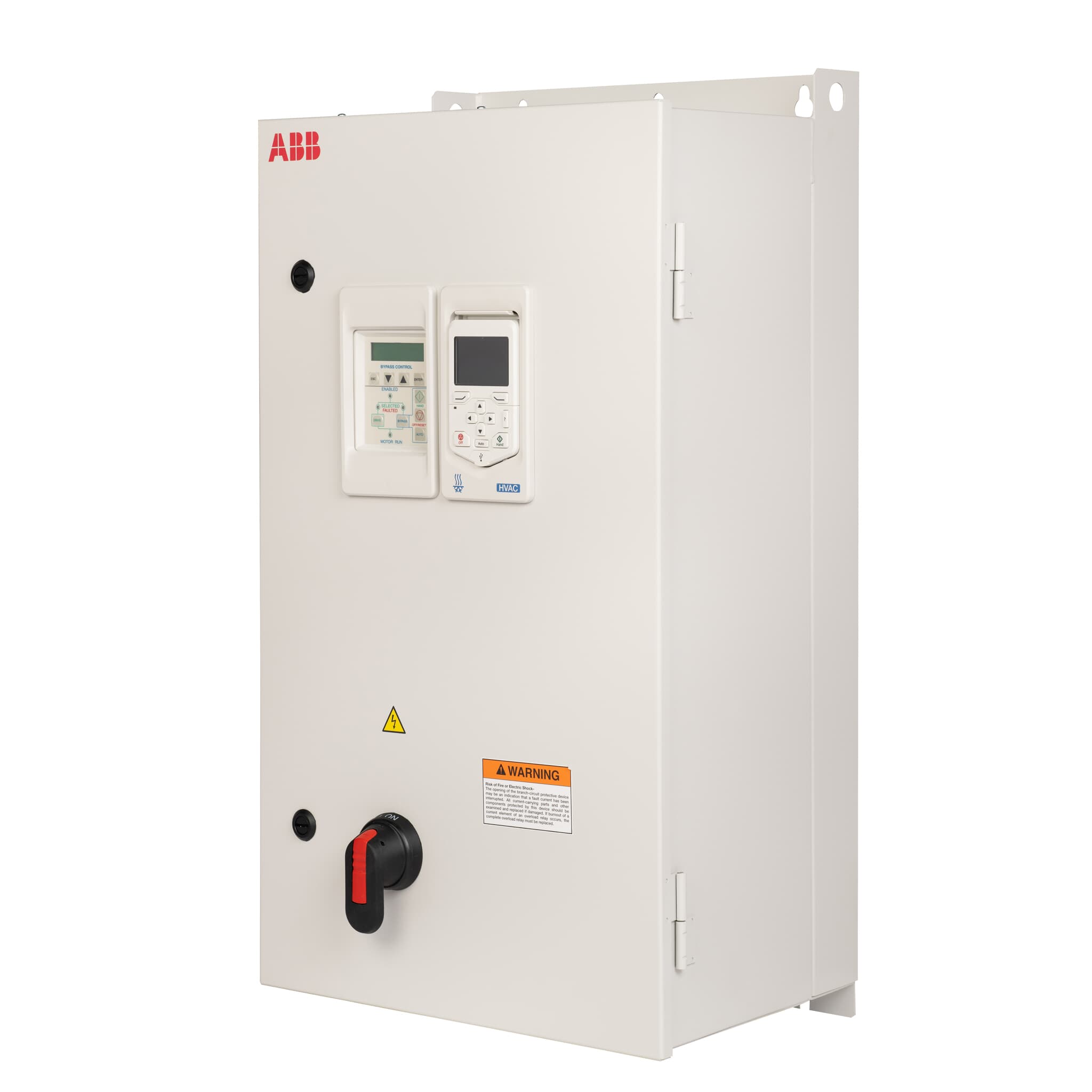

ACH580-BDR-03A9-6+B056

HVAC packaged drive with e-clipse bypass and disconnect US

ABB

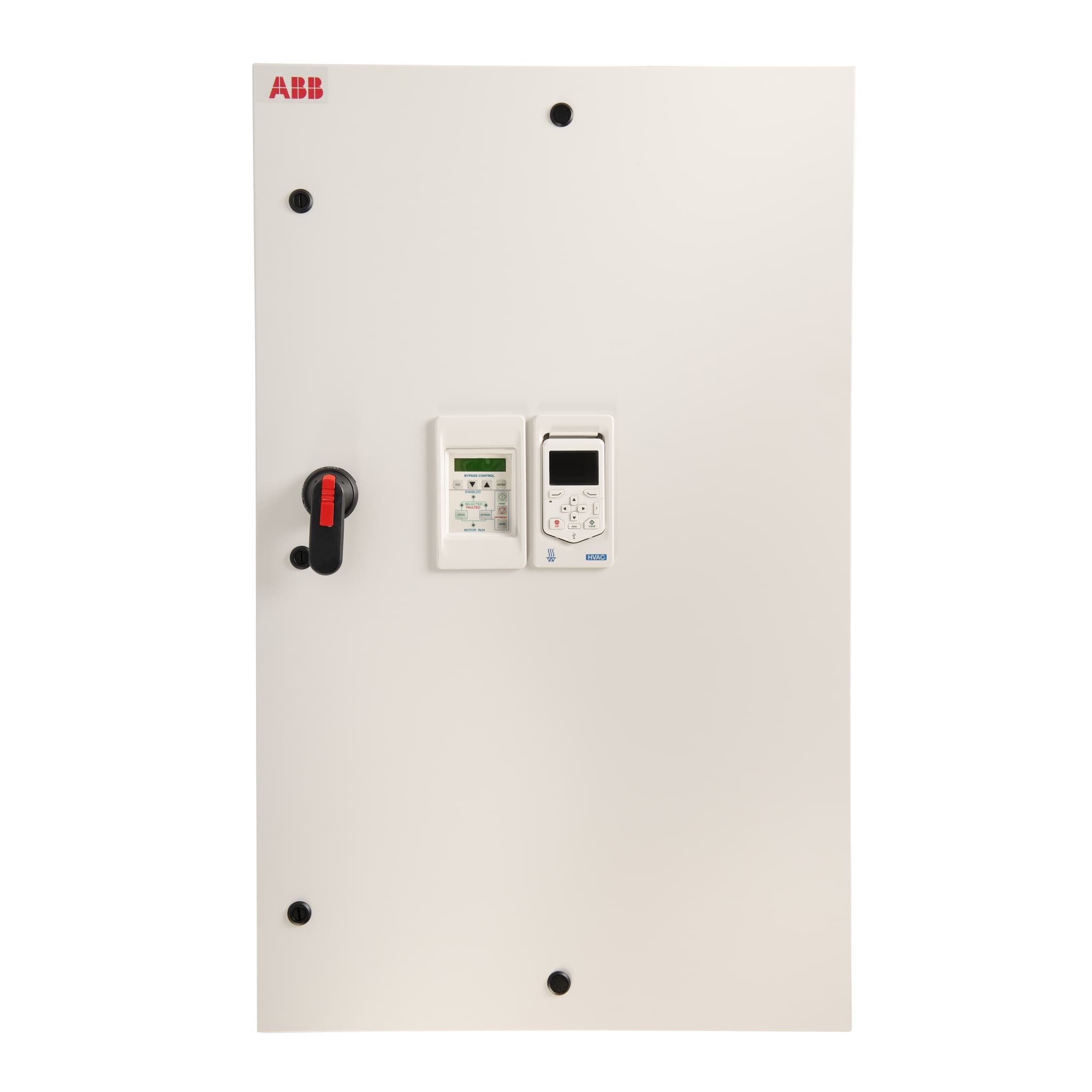

ACH580-BDR-144A-6

HVAC packaged drive with e-clipse bypass and disconnect US

ABB

ACH580-BDR-02A7-6+B056

HVAC packaged drive with e-clipse bypass and disconnect US

Compare ACH580

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product Net Weight	Enclosure Type NEMA	Input Voltage (Uin)	Output Current, Light-Overload Use (UL)	Output Power, Light-Overload Use (UL)
ACH580-3PDR-240A-4	1510 lb	Type1	440 … 480 V V	240 A A	200 Hp
ACH580-3BDR-156A-4	500 lb	Type1	440 … 480 V V	156 A A	125 Hp
ACH580-3PCR-361A-4	1510 lb	Type1	440 … 480 V V	361 A A	300 Hp
ACH580-3PCR-414A-4	1510 lb	Type1	440 … 480 V V	414 A A	350 Hp
ACH180-04S-17A5-2	2.01 kg, 4.43 lb kg	Open Type	200 ... 240 V V	16.7 A A	5.0 Hp
ACH180-04S-07A8-1	1.24 kg, 2.73 lb kg	Open Type	200 ... 240 V V	7.5 A A	2.0 Hp
ACH580-PDR-077A-4+B058	0 kg kg	Type3R	380 … 480 V V	77 A A	60 Hp
ACH580-VCR-02A7-6	50.7 lb	Type1	500 … 600 V V	2.7 A A	2 Hp
ACH580-VCR-03A9-6	50.7 lb	Type1	500 … 600 V V	3.9 A A	3 Hp
ACH580-PDR-044A-4+B058	0 kg kg	Type3R	380 … 480 V V	44 A A	30 Hp
ACH580-PDR-052A-4+B058	0 kg kg	Type3R	380 … 480 V V	52 A A	40 Hp
ACH531-01-018A-4+X1663	6 kg kg	Open Type	380 ... 480 V V	—	—
ACH580-PDR-052A-6+B058	0 kg kg	Type3R	500 … 600 V V	52 A A	50 Hp
ACH580-PDR-062A-6+B058	0 kg kg	Type3R	500 … 600 V V	62 A A	60 Hp
ACH531-01-018A-4+0J404	6 kg kg	Open Type	380 … 500 V V	—	—
ACH531-01-12A7-4+P974	4 kg kg	Open Type	380 … 500 V V	—	—
ACH580-PCR-024A-2+B058	0 kg kg	Type3R	208 … 240 V V	59.4 A A	20 Hp
ACH580-BCR-046A-2+B058	0 kg kg	Type3R	208 … 240 V V	46.2 A A	15 Hp
ACH580-BCR-059A-2+B058	0 kg kg	Type3R	208 … 240 V V	59.4 A A	20 Hp
ACH580-PDR-144A-6+B058	0 kg kg	Type3R	500 … 600 V V	144 A A	150 Hp
ACH580-BDR-032A-6+B056	0 kg kg	Type12	500 … 600 V V	32 A A	30 Hp
ACH580-BDR-03A9-6+B056	0 kg kg	Type12	500 … 600 V V	3.9 A A	3.9 Hp
ACH580-BDR-144A-6	390 lb	Type1	500 … 600 V V	144 A A	150 Hp
ACH580-BDR-02A7-6+B056	0 kg kg	Type12	500 … 600 V V	2.7 A A	2.0 Hp

Common to all listed parts

Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
