ACH580 Parts

Browse Subcategories
ACH580-01 (301)ACH580-31 (46)ACH580-07 (13)ACH580-34 (12)
Showing 601–624 of 794 parts

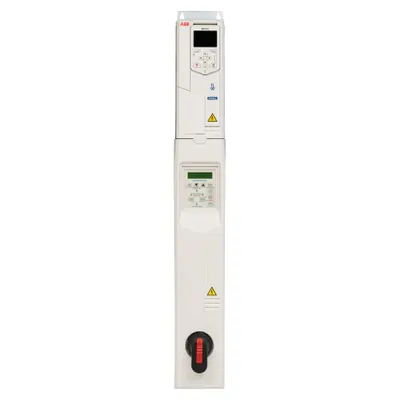

ABB ACH580-VDR-044A-4 – HVAC drive with vertical e-clipse bypass and circuit breaker disconnect US, UL: Pld 30 Hp, 44 A, 460 V ( )
ABB
ACH580-VDR-044A-4

HVAC drive with vertical e-clipse bypass and circuit…

ABB ACH531-01-206A-4 – LV AC wall-mounted drive for HVAC, IEC: Pn 110 kW, 206 A ( )
ABB
ACH531-01-206A-4

LV AC wall-mounted drive for HVAC, IEC: Pn 110 kW, 206 A ( )

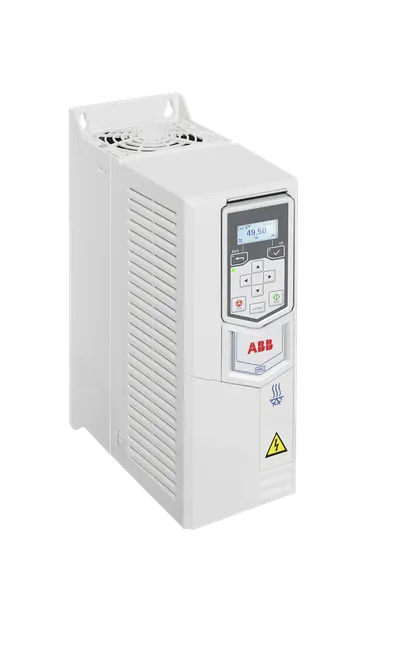

ABB ACH531-01-04A1-4 – LV AC wall-mounted drive for HVAC, IEC: Pn 1.5 kW, 4 A ( )
ABB
ACH531-01-04A1-4

LV AC wall-mounted drive for HVAC, IEC: Pn 1.5 kW, 4 A ( )

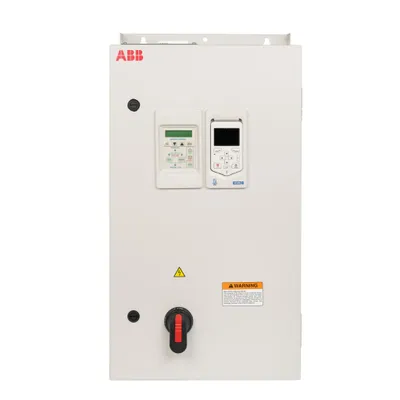

ABB ACH580-BCR-04A8-4 – HVAC packaged drive with e-clipse bypass and circuit breaker disconnect US, UL: Pld 3 Hp, 4.8 A, 460 V ( )
ABB
ACH580-BCR-04A8-4

HVAC packaged drive with e-clipse bypass and circuit…

ABB ACH580-BCR-052A-4 – HVAC packaged drive with e-clipse bypass and circuit breaker disconnect US, UL: Pld 40 Hp, 52 A, 460 V ( )
ABB
ACH580-BCR-052A-4

HVAC packaged drive with e-clipse bypass and circuit…

ABB ACH580-BDR-361A-4 – HVAC packaged drive with e-clipse bypass and disconnect US, UL: Pld 300 Hp, 361 A, 460 V ( )
ABB
ACH580-BDR-361A-4

HVAC packaged drive with e-clipse bypass and disconnect US

Compare ACH580

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNProduct Net WeightEnclosure Type NEMAInput Voltage (Uin)Output Current, Light-Overload Use (UL)Output Power, Light-Overload Use (UL)
ACH580-BCR-02A1-4+B0580 kg kgType3R440 … 480 V V2.1 A A1 Hp
ACH580-BCR-096A-4+B0560 kg kgType12440 … 480 V V96 A A75 Hp
ACH580-VDR-044A-459.5 lbType1440 … 480 V V44 A A30 Hp
ACH531-01-206A-449.6 kg kgOpen Type380 … 480 V V——

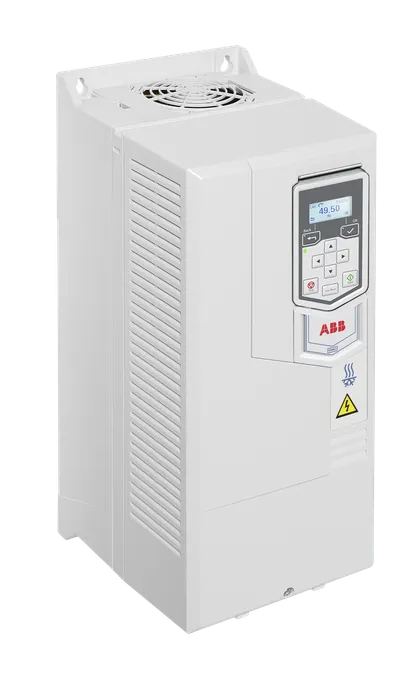

ACH531-01-046A-4+J40012 kg kgOpen Type380 … 500 V V——
ACH580-BDR-124A-4+B0560 kg kgType12440 … 480 V V124 A A100 Hp
ACH580-PCR-02A1-4+B0560 kg kgType12380 … 480 V V2.1 A A1 Hp
ACH580-BDR-065A-4+B0560 kg kgType12440 … 480 V V65 A A50 Hp

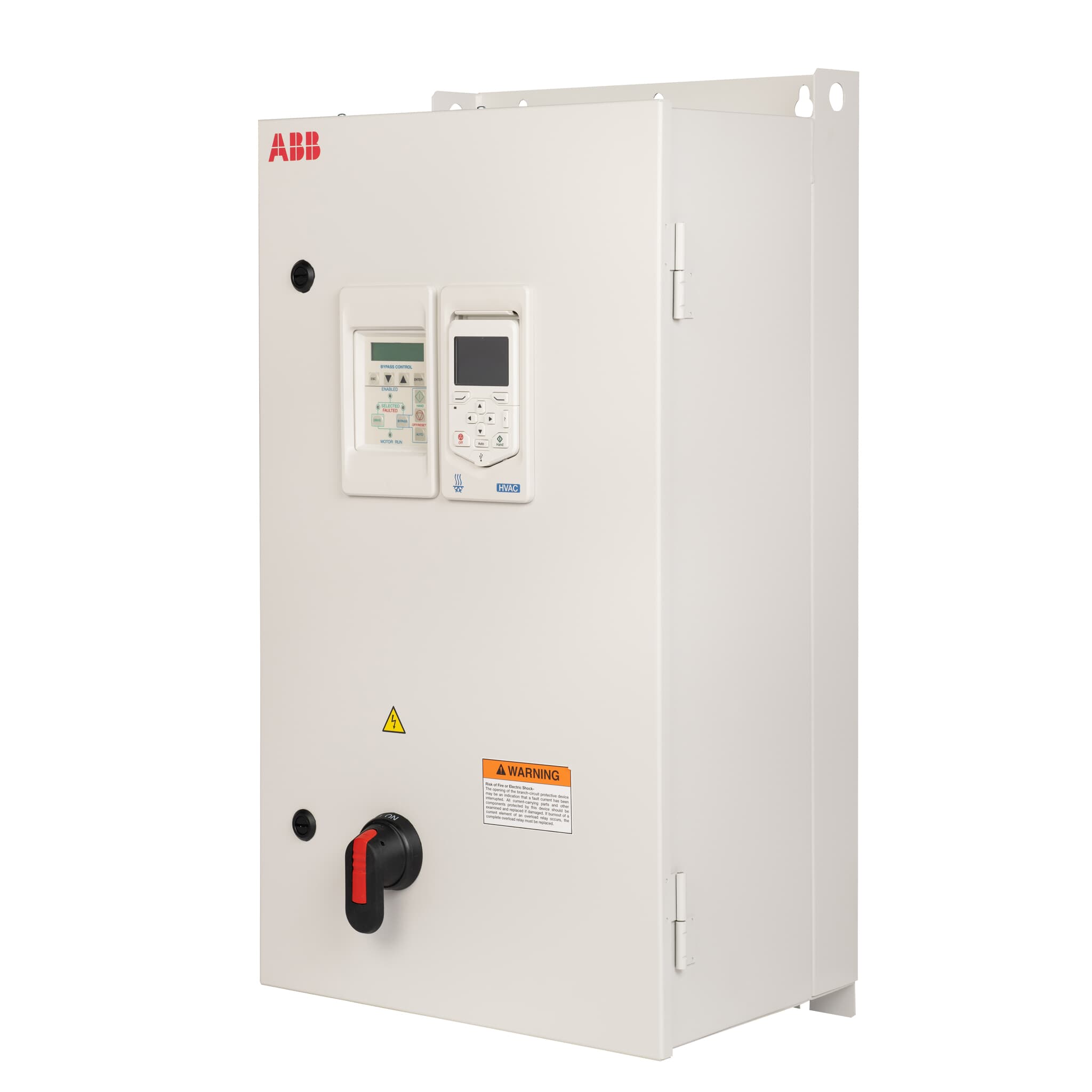

ACH580-BDR-03A5-4+B0580 kg kgType3R440 … 480 V V3.5 A A2 Hp
ACH531-01-04A1-44 kg kgOpen Type380 … 480 V V——
ACH580-PCR-012A-418.1 lbType1380 … 480 V V12 A A7.5 Hp
ACH580-PCR-023A-422 lbType1380 … 480 V V23 A A15 Hp
ACH580-BDR-180A-4+B0560 kg kgType12440 … 480 V V180 A A150 Hp
ACH580-BDR-07A6-4+B0580 kg kgType3R440 … 480 V V7.6 A A5 Hp
ACH580-BCR-04A8-484 lbType1440 … 480 V V4.8 A A3 Hp
ACH580-BCR-361A-4+B0560 kg kgType12440 … 480 V V361 A A300 Hp
ACH580-PCR-014A-422 lbType1380 … 480 V V14 A A10 Hp
ACH580-PCR-052A-4+B0560 kg kgType12380 … 480 V V52 A A40 Hp
ACH580-BCR-052A-4139 lbType1440 … 480 V V52 A A40 Hp
ACH580-BDR-361A-41170 lbType1440 … 480 V V361 A A300 Hp
ACH580-PCR-027A-4+B0560 kg kgType12380 … 480 V V27 A A20 Hp
ACH580-BDR-156A-4+B0560 kg kgType12440 … 480 V V156 A A125 Hp
ACH580-BDR-240A-4+B0560 kg kgType12440 … 480 V V240 A A200 Hp
ACH580-BDR-04A8-4+B0580 kg kgType3R440 … 480 V V4.8 A A3 Hp

Common to all listed parts

Made To OrderNo
Minimum Order Quantity1 piece
Order Multiple1 piece
Quote OnlyNo
Selling Unit of Measurepiece
Number of Phases3-phase
