ACH580 Parts

Browse Subcategories
ACH580-01 (301)ACH580-31 (46)ACH580-07 (13)ACH580-34 (12)
Showing 505–528 of 794 parts
ABB ACH531-01-363A-4 – LV AC wall-mounted drive for HVAC, IEC: Pn 200 kW, 363 A ( )
ABB
ACH531-01-363A-4

LV AC wall-mounted drive for HVAC, IEC: Pn 200 kW, 363 A ( )

ABB ACH580-3PCR-240A-4 – HVAC packaged ultra-low harmonic drive with circuit breaker, UL: Pld 200 Hp, 240 A, 460 V ( )
ABB
ACH580-3PCR-240A-4

HVAC packaged ultra-low harmonic drive with circuit breaker

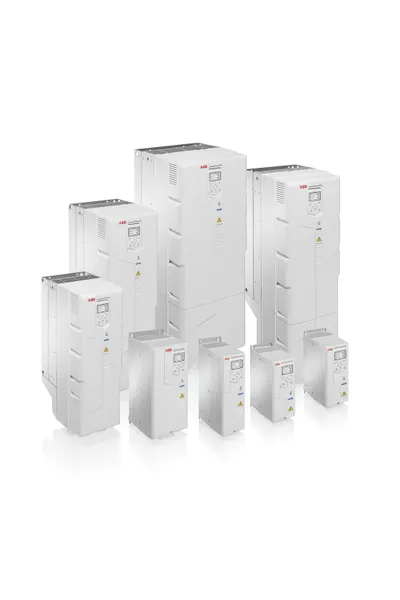

ABB ACH580-3BCR-096A-4 – HVAC Enclosed ultra-low harmonic drive with circuit breaker, UL: Pld 75 Hp, 96 A, 460 V ( )
ABB
ACH580-3BCR-096A-4

HVAC Enclosed ultra-low harmonic drive with circuit breaker

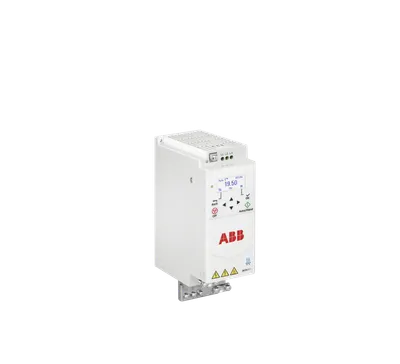

ABB ACH180-04S-07A8-2 – LV AC micro drive module for HVAC, IEC: Pn 1.5 kW, 7.8 A, 230 V, UL: Pld 2.0 Hp, 7.5 A, 208 V ( )
ABB
ACH180-04S-07A8-2

LV AC micro drive module for HVAC, IEC: Pn 1.5 kW, 7.8 A

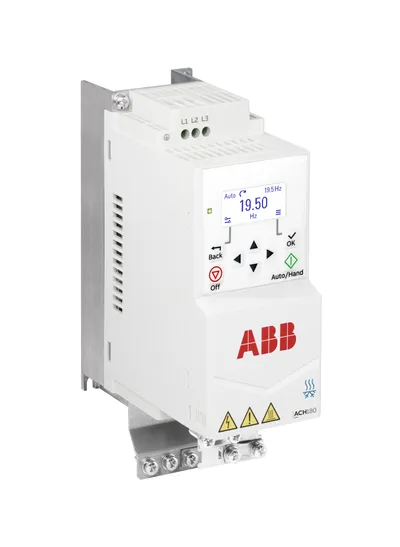

ABB ACH180-04S-04A8-2 – LV AC micro drive module for HVAC, IEC: Pn 0.75 kW, 4.8 A, 230 V, UL: Pld 1 Hp, 4.6 A, 208 V ( )
ABB
ACH180-04S-04A8-2

LV AC micro drive module for HVAC, IEC: Pn 0.75 kW, 4.8 A

Compare ACH580

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNCustoms Tariff NumberProduct Net WeightInput Voltage (Uin)Output Current, Light-Overload Use (UL)Output Power, Light-Overload Use (UL)
ACH580-BDR-096A-4+B056850440800 kg kg440 … 480 V V96 A A75 Hp
ACH531-01-363A-48504408784.8 kg kg380 … 480 V V——
ACH531-01-363A-4+J4008504409984.8 kg kg380 … 500 V V——
ACH580-BDR-04A8-4+B056850440800 kg kg440 … 480 V V4.8 A A3 Hp
ACH580-BDR-07A6-4+B056850440800 kg kg440 … 480 V V7.6 A A5 Hp
ACH580-BDR-052A-4+B056850440800 kg kg440 … 480 V V52 A A40 Hp
ACH580-BDR-027A-4+B058850440800 kg kg440 … 480 V V27 A A20 Hp
ACH580-BDR-02A1-4+B056850440800 kg kg440 … 480 V V2.1 A A1 Hp
ACH580-3PCR-240A-4850440801510 lb440 … 480 V V240 A A200 Hp
ACH580-3BCR-096A-485044080500 lb440 … 480 V V96 A A75 Hp
ACH180-04S-07A8-2850440871.24 kg, 2.73 lb kg200 ... 240 V V7.5 A A2.0 Hp
ACH531-01-026A-4+X1663850440996 kg kg380 ... 480 V V——
ACH580-PCR-361A-4+B056850440800 kg kg380 … 480 V V361 A A300 Hp
ACH580-BCR-041A-6+B058850440800 kg kg500 … 600 V V41 A A40 Hp
ACH580-PDR-041A-6+B058850440800 kg kg500 … 600 V V41 A A40 Hp
ACH580-PCR-077A-6+B058850440800 kg kg500 … 600 V V99 A A100 Hp
ACH580-BCR-052A-6+B058850440800 kg kg500 … 600 V V52 A A50 Hp
ACH580-PCR-125A-6+B058850440800 kg kg500 … 600 V V125 A A125 Hp
ACH580-BDR-144A-6+B058850440800 kg kg500 … 600 V V144 A A150 Hp
ACH180-04S-04A8-28504400.92 kg, 2.03 lb kg200 ... 240 V V4.6 A A1 Hp
ACH580-PCR-04A8-4+B058850440800 kg kg380 … 480 V V27 A A20 Hp
ACH580-PCR-014A-4+B058850440800 kg kg380 … 480 V V3 A A1.5 Hp
ACH580-PCR-044A-4+B058850440800 kg kg380 … 480 V V52 A A40 Hp
ACH531-01-05A7-4+X1663850440994 kg kg380 ... 480 V V——

Common to all listed parts

Minimum Order Quantity1 piece
Order Multiple1 piece
Quote OnlyNo
Selling Unit of Measurepiece
Number of Phases3-phase
