Altivar Process ATV600 Parts

Schneider Electric

ATV630U75Y6

Variable speed drive, Altivar Process ATV600, ATV630, 7.5hp, 500 to 690V, IP21

Schneider Electric

ATV630U55Y6

Variable speed drive, Altivar Process ATV600, ATV630, 5.5kW, 7.5hp, 500 to 690V, IP00

Schneider Electric

ATV630U40Y6

Variable speed drive, Altivar Process ATV600, ATV630, 4kW, 5hp, 500 to 690V, IP00

Schneider Electric

ATV630U30Y6

Variable speed drive, Altivar Process ATV600, ATV630, 3kW, 500 to 690V, IP00

Schneider Electric

ATV630U22Y6

Variable speed drive, Altivar Process ATV600, ATV630, 2.2kW, 3hp, 500 to 690V, IP00

Schneider Electric

VW3A5407

Output sinus filter, Altivar, 305A, for variable speed drive

Schneider Electric

VW3A5406

Output sinus filter, Altivar, 180A, for variable speed drive

Schneider Electric

VW3A5405

Output sinus filter, Altivar, 95A, for variable speed drive

Schneider Electric

VW3A5404

Output sinus filter, Altivar, 50A, for variable speed drive

Schneider Electric

VW3A5403

Output sinus filter, Altivar, 25A, for variable speed drive

Schneider Electric

VW3A5402

Output sinus filter, Altivar, 15A, for variable speed drive

Schneider Electric

VW3A5401

Output sinus filter, Altivar, 6A, for variable speed drive

Schneider Electric

VW3A5307

Output dv dt filter, Altivar, for variable speed drive, 55 to 160kW, 305A, IP00

Schneider Electric

VW3A5306

Output dv dt filter, Altivar, for variable speed drive, 30 to 90kW, 180A, IP00

Schneider Electric

VW3A5305

Output dv dt filter, Altivar, for variable speed drive, 15 to 45kW, 95A, IP20

Schneider Electric

VW3A5304

Output dv dt filter, Altivar, for variable speed drive, 5.5 to 22kW, 50A, IP20

Schneider Electric

VW3A5303

Output dv dt filter, Altivar, for variable speed drive, 4 to 15kW, 25A, IP20

Schneider Electric

VW3A5302

Output dv dt filter, Altivar, for variable speed drive, 1.5 to 5.5kW, 15A, IP20

Schneider Electric

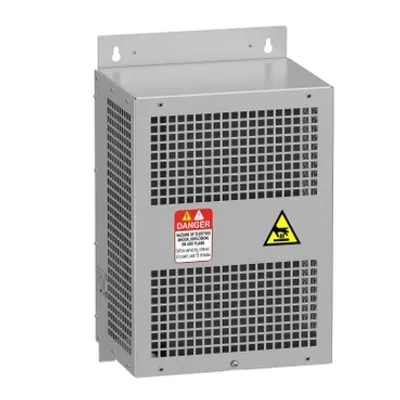

VW3A5301

Output dv dt filter, Altivar, for variable speed drive, 0.75 to 2.2kW, 6A, IP20

Schneider Electric

ATV650C31N4F

Variable speed drive, Altivar Process ATV600, ATV650, 315kW, 400 to 480V, floor standing

Schneider Electric

ATV650C25N4F

Variable speed drive, Altivar Process ATV600, ATV650, 250kW, 400 to 480V, floor standing

Schneider Electric

ATV650C20N4F

Variable speed drive, Altivar Process ATV600, ATV650, 200kW, 380 to 440V, IP54, disconnect switch

Schneider Electric

ATV650C16N4F

Variable speed drive, Altivar Process ATV600, ATV650, 160kW, 400 to 480V, floor standing

Schneider Electric

ATV650C13N4F

Variable speed drive, Altivar Process ATV600, ATV650, 132kW, 400 to 480V, floor standing

Compare Altivar Process ATV600

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Width	Height	Depth	Net weight	Pollution degree
ATV630U75Y6	246 mm	420 mm	242 mm	22 kg	2
ATV630U55Y6	246 mm	420 mm	242 mm	22 kg	2
ATV630U40Y6	246 mm	420 mm	242 mm	22 kg	2
ATV630U30Y6	246 mm	420 mm	242 mm	22 kg	2
ATV630U22Y6	246 mm	420 mm	242 mm	22 kg	2
VW3A5407	460 mm	370 mm	565 mm	131 kg	3 conforming to IEC 61800-5-1
VW3A5406	430 mm	350 mm	495 mm	90 kg	3 conforming to IEC 61800-5-1
VW3A5405	380 mm	760 mm	285 mm	60 kg	3 conforming to IEC 61800-5-1
VW3A5404	300 mm	560 mm	245 mm	35 kg	3 conforming to IEC 61800-5-1
VW3A5403	295 mm	530 mm	215 mm	20 kg	2 conforming to IEC 61800-5-1
VW3A5402	220 mm	455 mm	210 mm	13.5 kg	2 conforming to IEC 61800-5-1
VW3A5401	220 mm	455 mm	210 mm	10 kg	2 conforming to IEC 61800-5-1
VW3A5307	420 mm	360 mm	270 mm	40 kg	—
VW3A5306	380 mm	350 mm	235 mm	22 kg	—
VW3A5305	300 mm	610 mm	245 mm	19 kg	—
VW3A5304	300 mm	560 mm	245 mm	18 kg	—
VW3A5303	295 mm	535 mm	215 mm	12 kg	—
VW3A5302	295 mm	535 mm	215 mm	12 kg	—
VW3A5301	295 mm	535 mm	215 mm	11 kg	—
ATV650C31N4F	600 mm	2350 mm	669 mm	500 kg	3
ATV650C25N4F	600 mm	2350 mm	669 mm	500 kg	3
ATV650C20N4F	600 mm	2350 mm	669 mm	500 kg	3
ATV650C16N4F	400 mm	2350 mm	669 mm	330 kg	3
ATV650C13N4F	400 mm	2350 mm	669 mm	330 kg	3

Common to all listed parts

Ambient air temperature for storage

-40…70 °C
