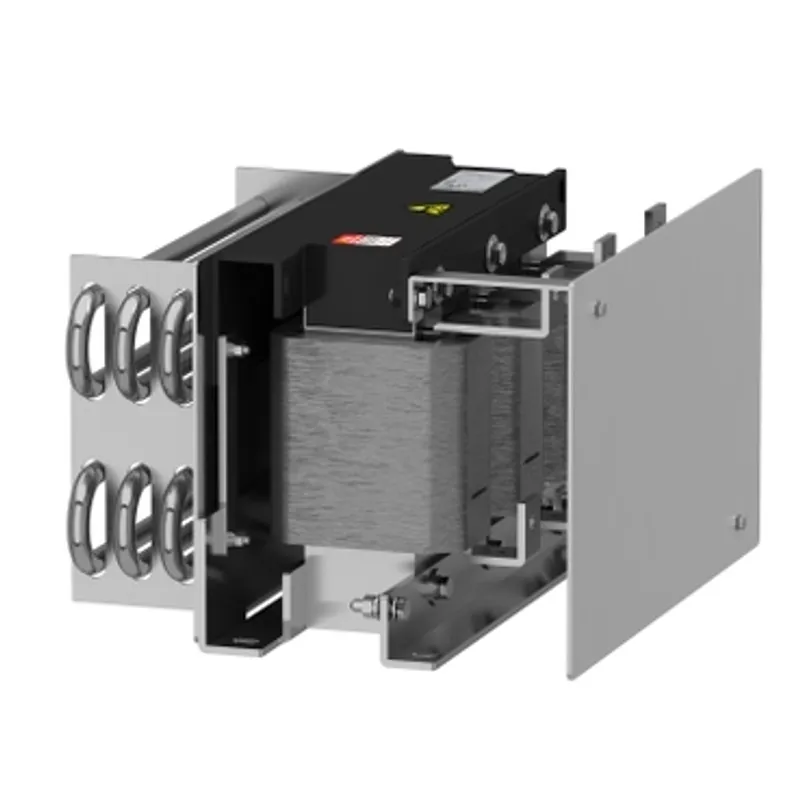

Schneider Electric VW3A5307
Output dv dt filter, Altivar, for variable speed drive, 55 to 160kW, 305A, IP00
- MPN
- VW3A5307
- EAN
- 3606480736742
- Category
- Altivar Process ATV600
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A5307?
This dv/dt filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 305A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 40kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.
Specifications
Specifications
| Product or component type | Dv/dt filter |
| Range compatibility | Easy Altivar 610, Altivar Process ATV900, Altivar Process ATV600 |
| Product specific application | Output filter |
| [In] rated current | 305 A |
| Product compatibility | ATV630 variable speed drive wall mount - 110 kW, 380...480 V, ATV630 variable speed drive wall mount - 132 kW, 380...480 V, ATV630 variable speed drive wall mount - 160 kW, 380...480 V, ATV630 variable speed drive wall mount - 55 kW, 200...240 V, ATV630 variable speed drive wall mount - 75 kW, 200...240 V, ATV610 variable speed drive - 110 kW, 380...415 V, ATV610 variable speed drive - 132 kW, 380...415 V, ATV610 variable speed drive - 160 kW, 380...415 V, ATV930 variable speed drive wall mount - 110 kW, 380...480 V, ATV930 variable speed drive wall mount - 132 kW, 380...480 V, ATV930 variable speed drive wall mount - 160 kW, 380...480 V, ATV930 variable speed drive wall mount - 55 kW, 200...240 V, ATV930 variable speed drive wall mount - 75 kW, 200...240 V |
| nedded quantity | 1 |
| Electrical connection | Copper bar M10, connection capacity: 300 mm² / 500 kcmil |
| Maximum motor cable length | 500 m unshielded cable, 300 m shielded cable |
| dv/dt | 6000 V/µs max at 200...240 V, 6000 V/µs max at 380...480 V |
| Thermal losses | 287 W at 4 kHz |
| maximum drive output frequency | 100 Hz |
| Ambient air temperature for operation | -10…50 °C (without current derating), 50…60 °C (with current derating 1.5 % per °C) |
| Operating altitude | 0...1000 m without current derating, 1000...4000 m with current derating 1 % per 100 m |
| Width | 420 mm |
| Height | 360 mm |
| Depth | 270 mm |
| Net weight | 40 kg |
| IP degree of protection | IP00 |
| Ambient air temperature for storage | -40…70 °C |
Packaging
| Package 1 | 1 PCE, 79.000 cm × 45.000 cm × 43.500 cm (L × W × H), 53.000 kg |
