VW3A5301Output dv dt filter, Altivar, for variable speed drive, 0.75 to 2.2kW, 6A, IP20
Schneider Electric VW3A5305

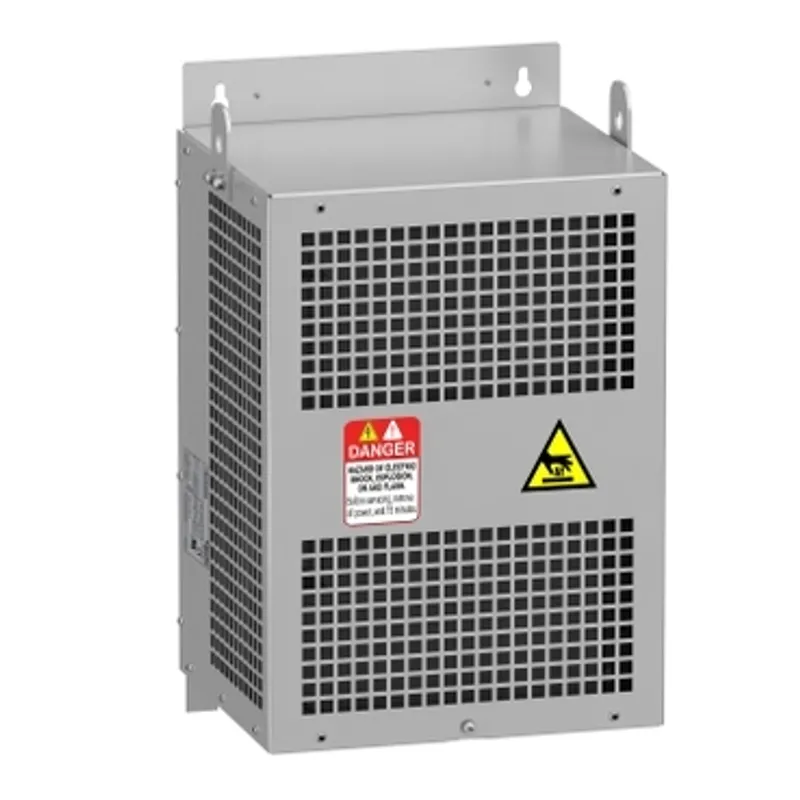

Output dv dt filter, Altivar, for variable speed drive, 15 to 45kW, 95A, IP20
- MPN
- VW3A5305
- EAN
- 3606480736728
- Category
- Altivar Process ATV600
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A5305?
This dv/dt filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 95A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP20. It weighs 19kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.
Specifications
Specifications
| Product or component type | Dv/dt filter |
| Range compatibility | Easy Altivar 610, Altivar Process ATV900, Altivar Process ATV600, Altivar Machine ATV340 |
| Product specific application | Output filter |
| [In] rated current | 95 A |
| Product compatibility | ATV630 variable speed drive wall mount - 15 kW, 200...240 V, ATV630 variable speed drive wall mount - 18.5 kW, 200...240 V, ATV630 variable speed drive wall mount - 22 kW, 200...240 V, ATV630 variable speed drive wall mount - 30 kW, 380...480 V, ATV630 variable speed drive wall mount - 37 kW, 380...480 V, ATV630 variable speed drive wall mount - 45 kW, 380...480 V, ATV650 variable speed drive wall mount - 30 kW, 380...480 V, ATV650 variable speed drive wall mount - 37 kW, 380...480 V, ATV650 variable speed drive wall mount - 45 kW, 380...480 V, ATV610 variable speed drive - 30 kW, 380...415 V, ATV610 variable speed drive - 37 kW, 380...415 V, ATV610 variable speed drive - 45 kW, 380...415 V, ATV930 variable speed drive wall mount - 15 kW, 200...240 V, ATV930 variable speed drive wall mount - 18.5 kW, 200...240 V, ATV930 variable speed drive wall mount - 22 kW, 200...240 V, ATV930 variable speed drive wall mount - 30 kW, 380...480 V, ATV930 variable speed drive wall mount - 37 kW, 380...480 V, ATV930 variable speed drive wall mount - 45 kW, 380...480 V, ATV950 variable speed drive wall mount - 30 kW, 380...480 V, ATV950 variable speed drive wall mount - 37 kW, 380...480 V, ATV950 variable speed drive wall mount - 45 kW, 380...480 V |
| nedded quantity | 1 |
| Electrical connection | Terminal block, connection capacity: 50 mm² / AWG 1 |
| Maximum motor cable length | 500 m unshielded cable, 300 m shielded cable |
| dv/dt | 3000 V/µs max at 200...240 V, 3000 V/µs max at 380...480 V |
| Thermal losses | 92 W at 4 kHz |
| maximum drive output frequency | 100 Hz |
| Ambient air temperature for operation | -10…50 °C (without current derating), 50…60 °C (with current derating 1.5 % per °C) |
| Operating altitude | 0...1000 m without current derating, 1000...4000 m with current derating 1 % per 100 m |
| Width | 300 mm |
| Height | 610 mm |
| Depth | 245 mm |
| Net weight | 19 kg |
| IP degree of protection | IP20, IP21 (with kit VW3A53905) |
| Ambient air temperature for storage | -40…70 °C |
Packaging
| Package 1 | 1 PCE, 75.000 cm × 40.000 cm × 40.000 cm (L × W × H), 24.000 kg |
