Schneider Electric VW3A5406

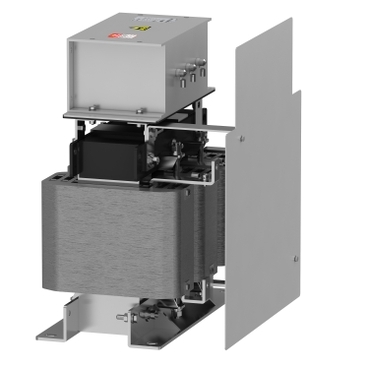

Output sinus filter, Altivar, 180A, for variable speed drive
- MPN
- VW3A5406
- EAN
- 3606480736858
- Category
- Altivar Process ATV600
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A5406?
This sinus filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 180A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 90kg. It is used for applications requiring long cable runs, motors connected in parallel, submersible pumps sensitive to dv/dt, an intermediate transformer between the drive and the motor.
Specifications
Specifications
| Product or component type | Sinus filter |
| Range compatibility | Altivar Process ATV900, Altivar Process ATV600 |
| Product specific application | Output filter |
| Maximum motor cable length | 1000 m unshielded cable, 500 m shielded cable |
| [In] rated current | 180 A |
| Thermal losses | 411 W at 4 kHz |
| Product compatibility | Variable speed drive ATV630 wall mount, motor: 30 kW, 200...240 V, Variable speed drive ATV630 wall mount, motor: 37 kW, 200...240 V, Variable speed drive ATV630 wall mount, motor: 45 kW, 200...240 V, Variable speed drive ATV630 wall mount, motor: 55 kW, 380...480 V, Variable speed drive ATV630 wall mount, motor: 75 kW, 380...480 V, Variable speed drive ATV630 wall mount, motor: 90 kW, 380...480 V, Variable speed drive ATV650 wall mount, motor: 55 kW, 380...480 V, Variable speed drive ATV650 wall mount, motor: 75 kW, 380...480 V, Variable speed drive ATV650 wall mount, motor: 90 kW, 380...480 V, Variable speed drive ATV930 wall mount, motor: 30 kW, 200...240 V, Variable speed drive ATV930 wall mount, motor: 37 kW, 200...240 V, Variable speed drive ATV930 wall mount, motor: 45 kW, 200...240 V, Variable speed drive ATV930 wall mount, motor: 55 kW, 380...480 V, Variable speed drive ATV930 wall mount, motor: 75 kW, 380...480 V, Variable speed drive ATV930 wall mount, motor: 90 kW, 380...480 V, Variable speed drive ATV950 wall mount, motor: 55 kW, 380...480 V, Variable speed drive ATV950 wall mount, motor: 75 kW, 380...480 V, Variable speed drive ATV950 wall mount, motor: 90 kW, 380...480 V |
| Electrical connection | M10 copper bar, connection capacity: 120 mm² / AWG 4/0 |
| Operating altitude | <= 1000 m without current derating, 1000...4000 m with current derating 1 % per 100 m |
| Switching frequency | 2.5...6 kHz |
| Maximum output frequency | 100 Hz |
| Maximum voltage drop at rated load | 8 % |
| Permissible voltage | 480 V AC |
| Max current | 1.20 x nominal current (duration = 60 s) |
| Width | 430 mm |
| Height | 350 mm |
| Depth | 495 mm |
| Net weight | 90 kg |
| IP degree of protection | IP00 |
| Environmental characteristic | Biological pollution resistance class 3B1 conforming to IEC 60721-3-3, Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3, Dust pollution resistance class 3S3 conforming to IEC 60721-3-3 |
| Pollution degree | 3 conforming to IEC 61800-5-1 |
| Relative humidity | 5…95 % without condensation |
| Ambient air temperature for operation | 50…60 °C (with current derating 1.5 % per °C), -15…50 °C (without current derating) |
| Ambient air temperature for storage | -40…70 °C |
| Mechanical robustness | Shocks class 3M4 conforming to IEC 60721-3-3, Vibrations class 3M4 conforming to IEC 60721-3-3 |
Packaging
| Package 1 | 1 PCE, 80.000 cm × 45.000 cm × 73.000 cm (L × W × H), 98.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A5406: frequently asked questions
When can VW3A5406 be shipped?
VW3A5406 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A5406 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A5406 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A5406, subject to availability and destination.
