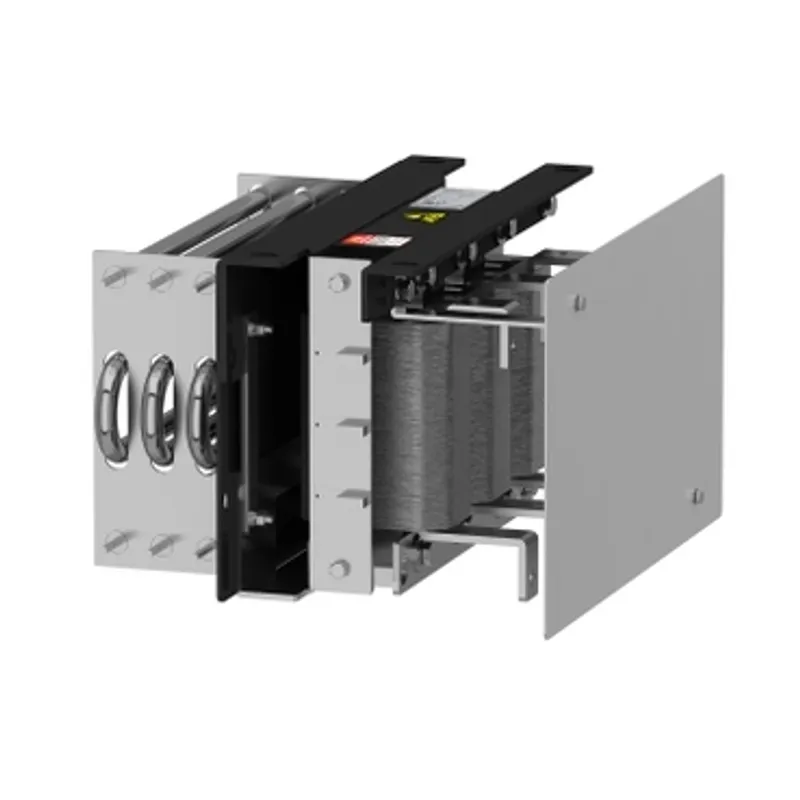

VW3A5302Output dv dt filter, Altivar, for variable speed drive, 1.5 to 5.5kW, 15A, IP20
Schneider Electric VW3A5306
Output dv dt filter, Altivar, for variable speed drive, 30 to 90kW, 180A, IP00
- MPN
- VW3A5306
- EAN
- 3606480736735
- Category
- Altivar Process ATV600
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A5306?
This dv/dt filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 180A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 22kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.
Specifications
Specifications
| Product or component type | Dv/dt filter |
| Range compatibility | Altivar Process ATV900, Easy Altivar 610, Altivar Process ATV600, Altivar Machine ATV340 |
| Product specific application | Output filter |
| [In] rated current | 180 A |
| Product compatibility | ATV630 variable speed drive wall mount - 30 kW, 200...240 V, ATV630 variable speed drive wall mount - 37 kW, 200...240 V, ATV630 variable speed drive wall mount - 45 kW, 200...240 V, ATV630 variable speed drive wall mount - 55 kW, 380...480 V, ATV630 variable speed drive wall mount - 75 kW, 380...480 V, ATV630 variable speed drive wall mount - 90 kW, 380...480 V, ATV650 variable speed drive wall mount - 55 kW, 380...480 V, ATV650 variable speed drive wall mount - 75 kW, 380...480 V, ATV650 variable speed drive wall mount - 90 kW, 380...480 V, ATV610 variable speed drive - 55 kW, 380...415 V, ATV610 variable speed drive - 75 kW, 380...415 V, ATV610 variable speed drive - 90 kW, 380...415 V, ATV930 variable speed drive wall mount - 30 kW, 200...240 V, ATV930 variable speed drive wall mount - 37 kW, 200...240 V, ATV930 variable speed drive wall mount - 45 kW, 200...240 V, ATV930 variable speed drive wall mount - 55 kW, 380...480 V, ATV930 variable speed drive wall mount - 75 kW, 380...480 V, ATV930 variable speed drive wall mount - 90 kW, 380...480 V, ATV950 variable speed drive wall mount - 55 kW, 380...480 V, ATV950 variable speed drive wall mount - 75 kW, 380...480 V, ATV950 variable speed drive wall mount - 90 kW, 380...480 V |
| nedded quantity | 1 |
| Electrical connection | Copper bar M10, connection capacity: 120 mm² / AWG 4/0 |
| Maximum motor cable length | 500 m unshielded cable, 300 m shielded cable |
| dv/dt | 3000 V/µs max at 200...240 V, 3000 V/µs max at 380...480 V |
| Thermal losses | 176 W at 4 kHz |
| maximum drive output frequency | 100 Hz |
| Ambient air temperature for operation | -10…50 °C (without current derating), 50…60 °C (with current derating 1.5 % per °C) |
| Operating altitude | 0...1000 m without current derating, 1000...4000 m with current derating 1 % per 100 m |
| Width | 380 mm |
| Height | 350 mm |
| Depth | 235 mm |
| Net weight | 22 kg |
| IP degree of protection | IP00 |
| Ambient air temperature for storage | -40…70 °C |
Packaging
| Package 1 | 1 PCE, 44.500 cm × 39.800 cm × 37.700 cm (L × W × H), 29.400 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A5306: frequently asked questions
When can VW3A5306 be shipped?
VW3A5306 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A5306 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A5306 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A5306, subject to availability and destination.
