SIRIUS 3RV2 motor starter protectors Parts
Browse Subcategories
Compare SIRIUS 3RV2 motor starter protectors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | continuous current rated value | Net Weight | operational current rated value | operational current — at AC-3 at 400 V rated value | response value current of instantaneous short-circuit trip unit |
|---|---|---|---|---|---|
| 3RV2342-4FC10 | 40 A | 2.11 kg | 40 A | 40 A | 520 A |
| 3RV2341-4YC10 | 93 A | 2.204 kg | 93 A | 93 A | 1 300 A |
| 3RV2341-4RC10 | 84 A | 2.183 kg | 84 A | 84 A | 1 170 A |
| 3RV2341-4MC10 | 100 A | 2.19 kg | 100 A | 100 A | 1 300 A |
| 3RV2041-4HA15 | 50 A | 2.16 kg | 50 A | 50 A | 650 A |
| 3RV2041-4HA10-0DA0 | 50 A | 2.16 kg | 50 A | 50 A | 650 A |
| 3RV2041-4HA10 | 50 A | 2.154 kg | 50 A | 50 A | 650 A |

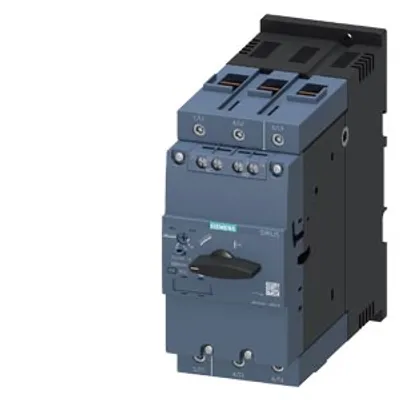

| 3RV2041-4FA15 | 40 A | 2.135 kg | 40 A | 40 A | 520 A |
| 3RV2041-4FA10-0DA0 | 40 A | 2.131 kg | 40 A | 40 A | 520 A |
| 3RV2041-4FA10 | 40 A | 2.125 kg | 40 A | 40 A | 520 A |
| 3RV2032-4XA15 | 59 A | 1.189 kg | 59 A | 59 A | 845 A |
| 3RV2431-4EA10-0BA0 | 32 A | 1.042 kg | 32 A | 32 A | 656 A |
| 3RV2431-4EA10 | 32 A | 1.054 kg | 32 A | 32 A | 656 A |
| 3RV2431-4DA10-Z X95 | 25 A | 1.066 kg | 25 A | 25 A | 512 A |
| 3RV2431-4DA10 | 25 A | 1.066 kg | 25 A | 25 A | 512 A |
| 3RV2431-4BA10 | 20 A | 1.063 kg | 20 A | 20 A | 410 A |

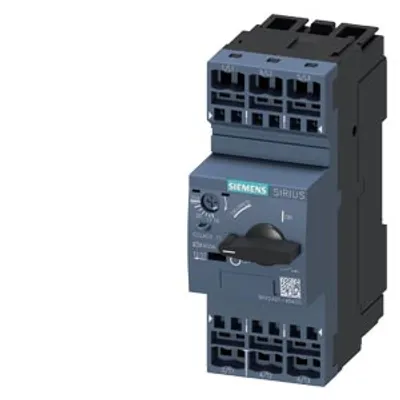

| 3RV2421-4DA20 | 25 A | 404.6 g | 25 A | 25 A | 400 A |
| 3RV2811-0CD10 | 0.25 A | 396.08 g | 0.25 A | 0.25 A | 5.2 A |
| 3RV2811-0BD10 | 0.2 A | 0.406 kg | 0.2 A | 0.2 A | 4.2 A |
| 3RV2811-0AD10 | 0.16 A | 418.66 g | 0.16 A | 0.16 A | 3.3 A |
| 3RV2742-5QD10 | 70 A | 2.226 kg | 70 A | — | 910 A |

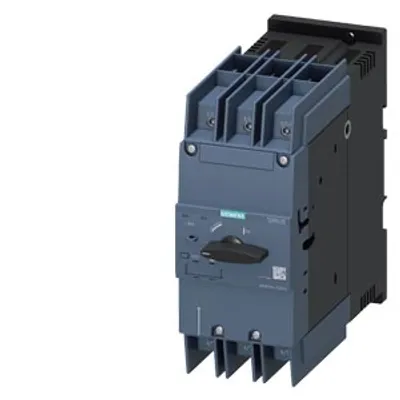

| 3RV2742-5LD10 | 60 A | 2.198 kg | 60 A | — | 780 A |
| 3RV2742-5JD10 | 50 A | 2.199 kg | 50 A | — | 650 A |
| 3RV2742-5HD10 | 45 A | 2.2 kg | 45 A | — | 585 A |
Common to all listed parts
| product designation | Circuit breaker |
| product type designation | 3RV2 |
| Product equipment of circuit breaker for motor protection complete unit with protection device | Yes |
| product function disconnector functionality | Yes |
| product extension auxiliary switch | Yes |
| type of calculation of power loss current-dependent | quadratic |
| maximum permissible voltage for protective separation — in networks with ungrounded star point between main and auxiliary circuit | 400 V |
| maximum permissible voltage for protective separation — in networks with grounded star point between main and auxiliary circuit | 400 V |
