SIRIUS 3RV2 motor starter protectors Parts
Browse Subcategories
Compare SIRIUS 3RV2 motor starter protectors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | continuous current rated value | Net Weight | operational current rated value | operational current — at AC-3 at 400 V rated value | response value current of instantaneous short-circuit trip unit |
|---|---|---|---|---|---|
| 3RV2311-1GC20 | 6.3 A | 344.6 g | 6.3 A | 6.3 A | 82 A |

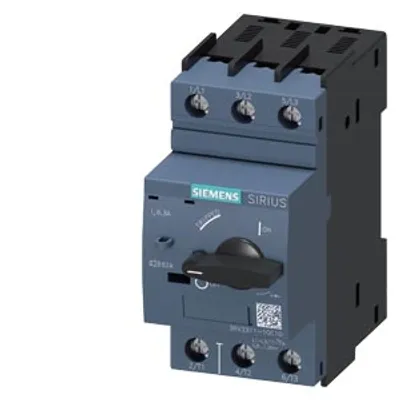

| 3RV2311-1GC10 | 6.3 A | 322.6 g | 6.3 A | 6.3 A | 82 A |
| 3RV2311-1FC20 | 5 A | 344.6 g | 5 A | 5 A | 65 A |
| 3RV2011-1GA25-Z X95 | 6.3 A | 362.6 g | 6.3 A | 6.3 A | 82 A |
| 3RV2011-1GA25-Z W97 | 6.3 A | 362.6 g | 6.3 A | 6.3 A | 82 A |
| 3RV2011-1GA25-Z W96 | 6.3 A | 362.6 g | 6.3 A | 6.3 A | 82 A |
| 3RV2011-1GA25 | 6.3 A | 362.6 g | 6.3 A | 6.3 A | 82 A |
| 3RV2011-1GA20-Z X95 | 6.3 A | 347.6 g | 6.3 A | 6.3 A | 82 A |
| 3RV2011-1GA20-Z W97 | 6.3 A | 347.6 g | 6.3 A | 6.3 A | 82 A |
| 3RV2011-1FA10-0BA0 | 5 A | 0.324 kg | 5 A | — | 65 A |
| 3RV2011-1FA10-Z X95 | 5 A | 325.6 g | 5 A | — | 65 A |
| 3RV2011-1FA10-Z W97 | 5 A | 325.6 g | 5 A | — | 65 A |
| 3RV2011-1FA10-Z W96 | 5 A | 325.6 g | 5 A | — | 65 A |
| 3RV2011-1FA10 | 5 A | 325.6 g | 5 A | — | 65 A |

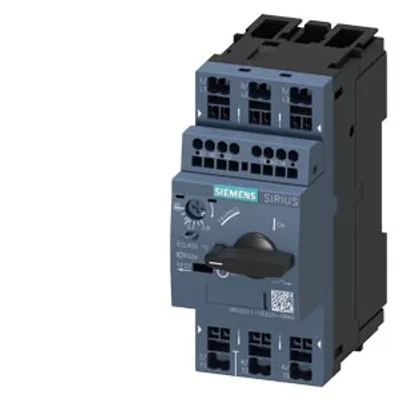

| 3RV2011-1EA25-0BA0 | 4 A | 354.6 g | 4 A | 4 A | 52 A |
| 3RV2021-4AA15-Z X95 | 16 A | 354.18 g | 16 A | 16 A | 208 A |

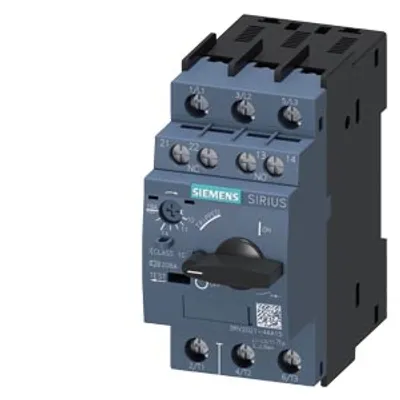

| 3RV2021-4AA15-Z W97 | 16 A | 354.18 g | 16 A | 16 A | 208 A |
| 3RV2021-4AA15 | 16 A | 354.18 g | 16 A | 16 A | 208 A |
| 3RV2021-4AA10-0DA0 | 16 A | 338.6 g | 16 A | — | 208 A |
| 3RV2021-4AA10-Z X95 | 16 A | 338.6 g | 16 A | — | 208 A |
| 3RV2021-4AA10-Z W97 | 16 A | 338.6 g | 16 A | — | 208 A |

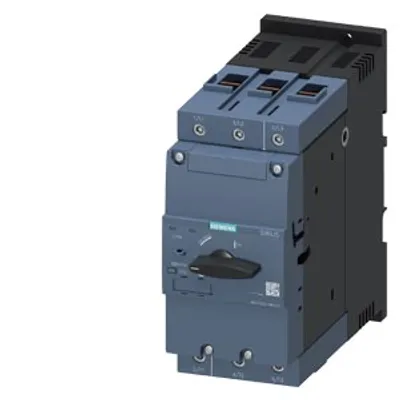

| 3RV2342-4KC10 | 75 A | 2.169 kg | 75 A | 75 A | 975 A |
| 3RV2342-4JC10 | 63 A | 2.151 kg | 63 A | 63 A | 819 A |
| 3RV2342-4HC10 | 50 A | 2.143 kg | 50 A | 50 A | 650 A |
Common to all listed parts
| Product equipment of circuit breaker for motor protection complete unit with protection device | Yes |
| product function disconnector functionality | Yes |
| product extension auxiliary switch | Yes |
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity during operation | 10 ... 95 % |
| number of poles for main current circuit | 3 |
