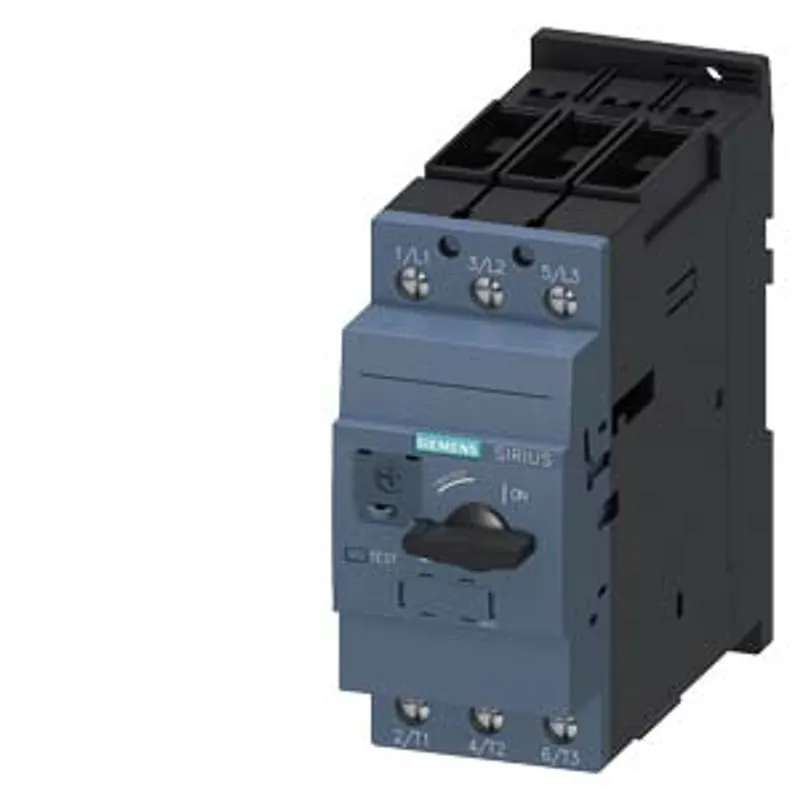

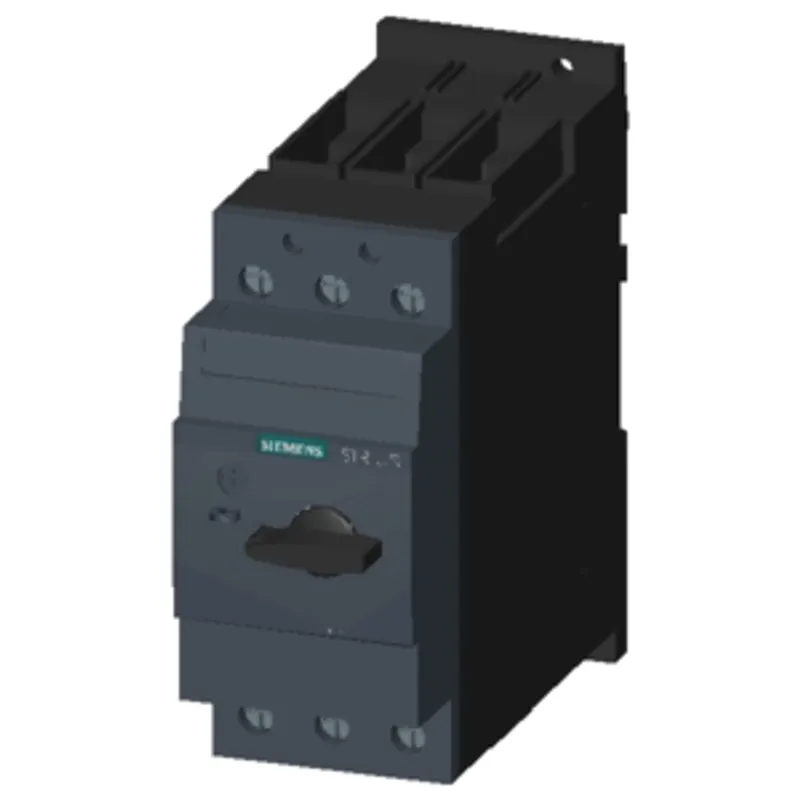

What is the Siemens 3RV2431-4EA10-0BA0?

special type circuit breaker size S2 for transformer protection A-release 22...32 A short-circuit release 656 A screw terminal standard switching capacity ambient temperature -50 °C 250 switching cycles

Specifications

General

product brand name	SIRIUS
product designation	Circuit breaker
design of the product	For transformer protection
product type designation	3RV2

General technical data

Product equipment of circuit breaker for motor protection complete unit with protection device	Yes
size of the circuit-breaker	S2
size of contactor can be combined company-specific	S2
product function disconnector functionality	Yes
product extension auxiliary switch	Yes
power loss [W] for rated value of the current — at AC in hot operating state	18 W
power loss [W] for rated value of the current — at AC in hot operating state per pole	6 W
type of calculation of power loss current-dependent	quadratic
insulation voltage with degree of pollution 3 at AC rated value	690 V
surge voltage resistance rated value	6 kV
maximum permissible voltage for protective separation — in networks with ungrounded star point between main and auxiliary circuit	400 V
maximum permissible voltage for protective separation — in networks with grounded star point between main and auxiliary circuit	400 V
protection class IP — on the front according to IEC 60529	IP20
protection class IP — on the front	IP20
protection class IP — of the terminal	IP00
shock resistance according to IEC 60068-2-27	25 g / 11 ms Sinus
mechanical service life (operating cycles) — of the main contacts typical	250
mechanical service life (operating cycles) — of auxiliary contacts typical	250
electrical endurance (operating cycles) typical	250
reference code according to IEC 81346-2	Q
continuous current rated value	32 A
Substance Prohibitance (day/month/year)	10/15/2014
SVHC substance name	Lead CAS-No. 7439-92-1
Net Weight	1.042 kg

Ambient conditions

installation altitude at height above sea level maximum	2 000 m
ambient temperature — during operation	-50 ... +60 °C
ambient temperature — during storage	-50 ... +80 °C
ambient temperature — during transport	-50 ... +80 °C
temperature compensation	-20 ... +60 °C
relative humidity during operation	10 ... 95 %

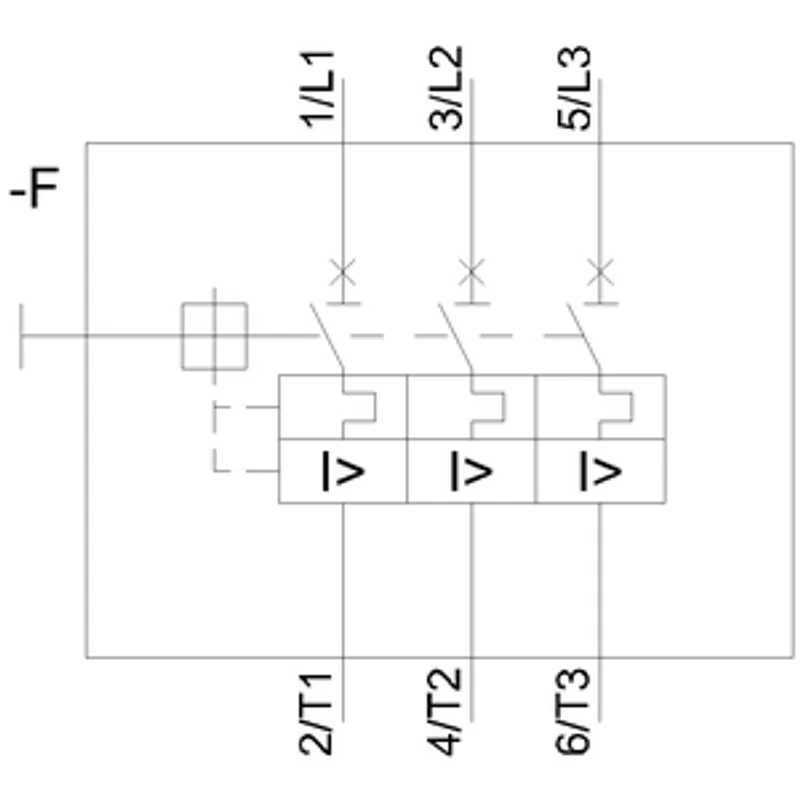

Main circuit

number of poles for main current circuit	3
adjustable current response value current of the current-dependent overload release	22 ... 32 A
type of voltage for main current circuit	AC
operating voltage — rated value	690 V
operating voltage — rated value	20 ... 690 V
operating voltage — at AC-3 rated value maximum	690 V
operating frequency rated value	50 ... 60 Hz
operational current rated value	32 A
operational current — at AC-3 at 400 V rated value	32 A
operating power — at AC-3 — at 230 V rated value	7.5 kW
operating power — at AC-3 — at 400 V rated value	15 kW
operating power — at AC-3 — at 500 V rated value	18.5 kW
operating power — at AC-3 — at 690 V rated value	30 kW
operating frequency — at AC-3 maximum	15 1/h

Auxiliary circuit

type of voltage for auxiliary and control circuit	AC/DC
number of NC contacts for auxiliary contacts	0
number of NO contacts for auxiliary contacts	0
number of CO contacts for auxiliary contacts	0

Protective and monitoring functions

product function — ground fault detection	No
product function — phase failure detection	Yes
trip class	CLASS 10
design of the overload release	thermal
protection function thermal overload protection (ANSI 49)	Yes
maximum short-circuit current breaking capacity (Icu) — at AC at 240 V rated value	50 kA
maximum short-circuit current breaking capacity (Icu) — at AC at 400 V rated value	50 kA
maximum short-circuit current breaking capacity (Icu) — at AC at 500 V rated value	10 kA
maximum short-circuit current breaking capacity (Icu) — at AC at 690 V rated value	4 kA
operating short-circuit current breaking capacity (Ics) at AC — at 240 V rated value	25 kA
operating short-circuit current breaking capacity (Ics) at AC — at 400 V rated value	25 kA
operating short-circuit current breaking capacity (Ics) at AC — at 500 V rated value	5 kA
operating short-circuit current breaking capacity (Ics) at AC — at 690 V rated value	2 kA
response value current of instantaneous short-circuit trip unit	656 A

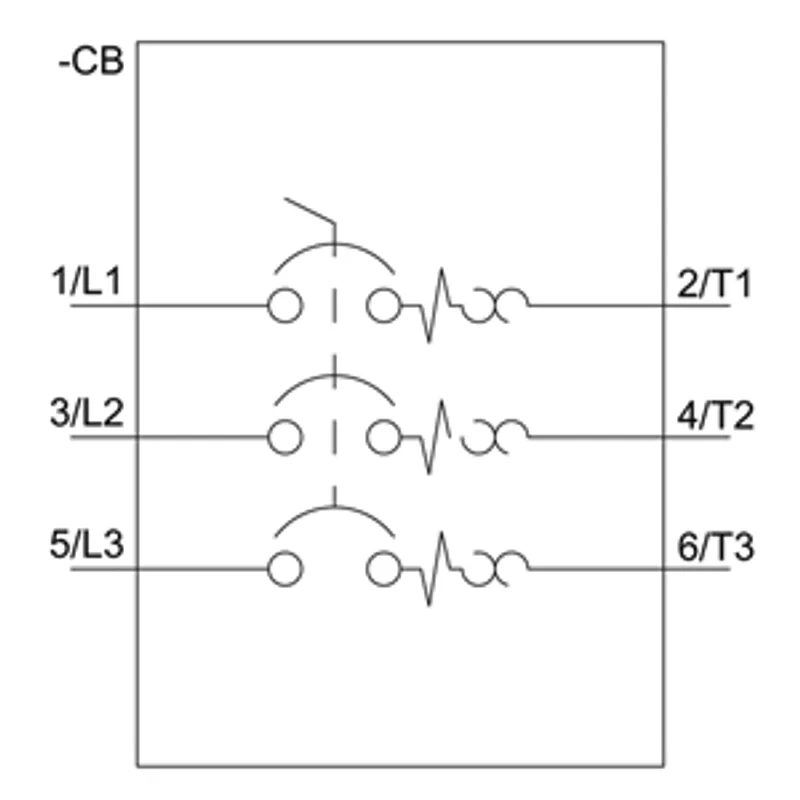

Short-circuit protection

product function short circuit protection	Yes
design of the short-circuit trip	magnetic

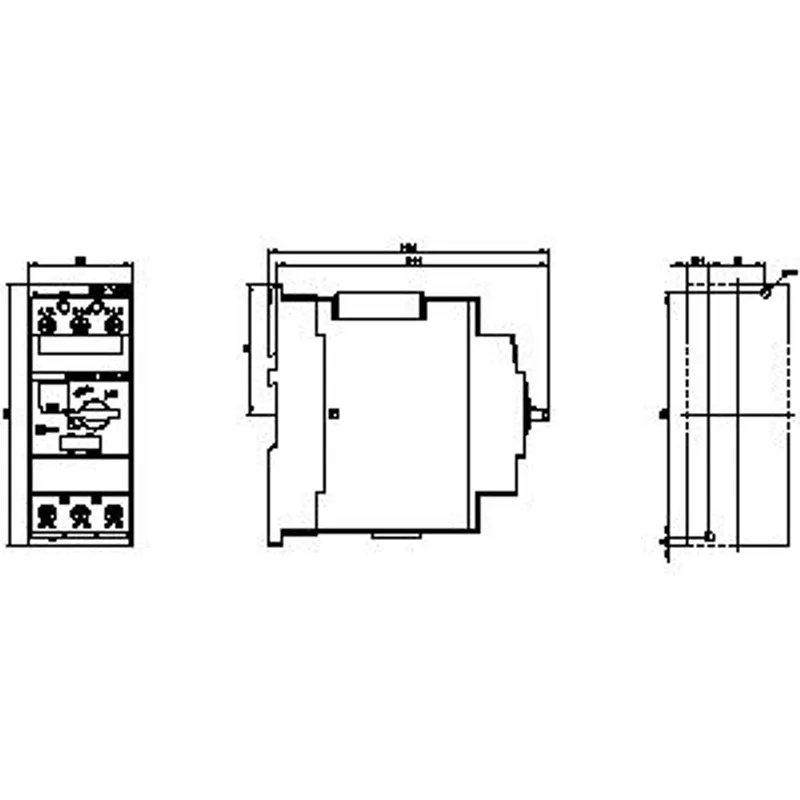

Installation/ mounting/ dimensions

mounting position	any
fastening method	screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting method of circuit breaker for Transformer protection, Generator protection and system protection optional standard bar mounting	Yes
height	140 mm
width	55 mm
depth	149 mm
required spacing — with side-by-side mounting — forwards	0 mm
required spacing — with side-by-side mounting — backwards	0 mm
required spacing — with side-by-side mounting — upwards	50 mm
required spacing — with side-by-side mounting — downwards	50 mm
required spacing — with side-by-side mounting — at the side	0 mm
required spacing — for grounded parts — forwards	0 mm
required spacing — for grounded parts — backwards	0 mm
required spacing — for grounded parts — upwards	50 mm
required spacing — for grounded parts — at the side	10 mm
required spacing — for grounded parts — downwards	50 mm
required spacing — for live parts — forwards	0 mm
required spacing — for live parts — backwards	0 mm
required spacing — for live parts — upwards	50 mm
required spacing — for live parts — downwards	50 mm
required spacing — for live parts — at the side	10 mm
required spacing — for grounded parts at 400 V — downwards	50 mm
required spacing — for grounded parts at 400 V — upwards	50 mm
required spacing — for grounded parts at 400 V — at the side	10 mm
required spacing — for live parts at 400 V — downwards	50 mm
required spacing — for live parts at 400 V — upwards	50 mm
required spacing — for live parts at 400 V — at the side	10 mm
required spacing — for grounded parts at 500 V — downwards	50 mm
required spacing — for grounded parts at 500 V — upwards	50 mm
required spacing — for grounded parts at 500 V — at the side	10 mm
required spacing — for live parts at 500 V — downwards	50 mm
required spacing — for live parts at 500 V — upwards	50 mm
required spacing — for live parts at 500 V — at the side	10 mm
required spacing — for grounded parts at 690 V — downwards	50 mm
required spacing — for grounded parts at 690 V — upwards	50 mm
required spacing — for grounded parts at 690 V — backwards	0 mm
required spacing — for grounded parts at 690 V — at the side	10 mm
required spacing — for grounded parts at 690 V — forwards	0 mm
required spacing — for live parts at 690 V — downwards	50 mm
required spacing — for live parts at 690 V — upwards	50 mm
required spacing — for live parts at 690 V — backwards	0 mm
required spacing — for live parts at 690 V — at the side	10 mm
required spacing — for live parts at 690 V — forwards	0 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuit	No
type of electrical connection — for main current circuit	screw-type terminals
arrangement of electrical connectors for main current circuit	Top and bottom
type of connectable conductor cross-sections — for main contacts — solid or stranded	2x (1 ... 25 mm²), 1x (1 ... 35 mm²)
type of connectable conductor cross-sections — for main contacts — finely stranded with core end processing	2x (1 ... 16 mm²), 1x (1 ... 25 mm²)
connectable conductor cross-section for main contacts — solid or stranded	1 ... 35 mm²
connectable conductor cross-section for main contacts — finely stranded with core end processing	1 ... 25 mm²
tightening torque — for main contacts with screw-type terminals	3 ... 4.5 N·m
design of screwdriver shaft	Diameter 5 to 6 mm
size of the screwdriver tip	Pozidriv size 2
design of the thread of the connection screw — for main contacts	M6
T1 value — for proof test interval or service life according to IEC 61508	10 a
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front

Display

display version for switching status

Handle

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing	12.8 kg
global warming potential [CO2 eq] / during sales	0.477 kg
global warming potential [CO2 eq] / during operation	230 kg
global warming potential [CO2 eq] / after end of life	-3.4 kg
global warming potential [CO2 eq] / total	239.877 kg
