SIRIUS 3RV2 motor starter protectors Parts
Browse Subcategories
Compare SIRIUS 3RV2 motor starter protectors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | continuous current rated value | Net Weight | adjustable current response value current of the current-dependent overload release | operational current rated value | response value current of instantaneous short-circuit trip unit |
|---|---|---|---|---|---|
| 3RV2131-4BA10 | 20 A | 1.087 kg | 14 ... 20 A | 20 A | 260 A |
| 3RV2121-4NA10 | 28 A | 417.58 g | 23 ... 28 A | 28 A | 364 A |
| 3RV2121-4EA10 | 32 A | 418.58 g | 27 ... 32 A | 32 A | 400 A |
| 3RV2121-4DA10 | 25 A | 408.58 g | 18 ... 25 A | 25 A | 325 A |
| 3RV2121-4CA10 | 22 A | 407.58 g | 16 ... 22 A | 22 A | 286 A |
| 3RV2121-4BA10 | 20 A | 0.398 kg | 13 ... 20 A | 20 A | 260 A |
| 3RV2121-4AA10 | 16 A | 0.402 kg | 10 ... 16 A | 16 A | 208 A |
| 3RV2011-0HA20-Z W97 | 0.8 A | 271.6 g | 0.55 ... 0.8 A | 0.8 A | 10 A |

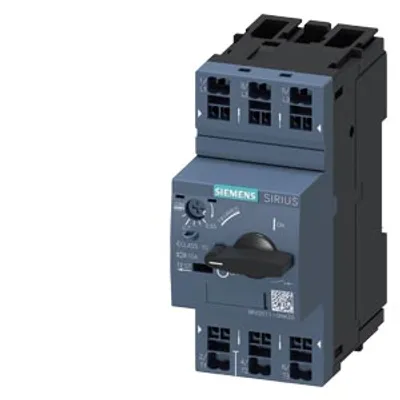

| 3RV2011-0HA20-Z W96 | 0.8 A | 271.6 g | 0.55 ... 0.8 A | 0.8 A | 10 A |
| 3RV2011-0HA20 | 0.8 A | 271.6 g | 0.55 ... 0.8 A | 0.8 A | 10 A |
| 3RV2011-0FA20 | 0.5 A | 273.6 g | 0.35 ... 0.5 A | 0.5 A | 6.5 A |
| 3RV2011-0FA15-Z X95 | 0.5 A | 271.18 g | 0.35 ... 0.5 A | 0.5 A | 6.5 A |
| 3RV2011-0FA15-Z W97 | 0.5 A | 271.18 g | 0.35 ... 0.5 A | 0.5 A | 6.5 A |
| 3RV2011-0FA15 | 0.5 A | 271.18 g | 0.35 ... 0.5 A | 0.5 A | 6.5 A |
| 3RV2011-0FA10-Z X95 | 0.5 A | 255.6 g | 0.35 ... 0.5 A | 0.5 A | 6.5 A |
| 3RV2011-0FA10-Z W97 | 0.5 A | 255.6 g | 0.35 ... 0.5 A | 0.5 A | 6.5 A |

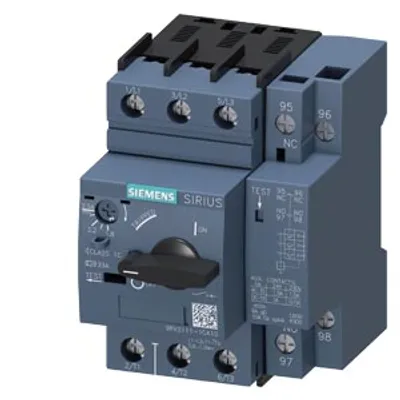

| 3RV2111-1CA10 | 2.5 A | 384.58 g | 1.8 ... 2.5 A | 2.5 A | 33 A |
| 3RV2111-1BA10 | 2 A | 387.58 g | 1.4 ... 2 A | 2 A | 26 A |
| 3RV2111-1AA10 | 1.6 A | 385.58 g | 1.1 ... 1.6 A | 1.6 A | 21 A |
| 3RV2111-0KA10 | 1.25 A | 387.58 g | 0.9 ... 1.25 A | 1.25 A | 16 A |

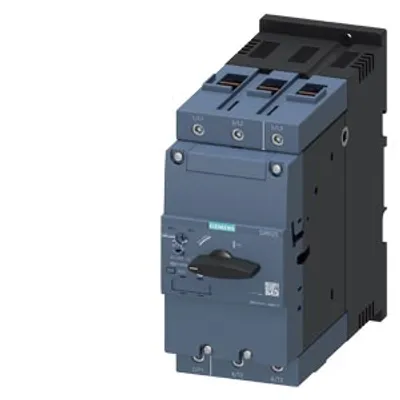

| 3RV2041-4MA10 | 100 A | 2.205 kg | 80 ... 100 A | 100 A | 1 300 A |
| 3RV2041-4KA15 | 75 A | 2.193 kg | 57 ... 75 A | 75 A | 975 A |
| 3RV2041-4KA10-0DA0 | 75 A | 2.184 kg | 57 ... 75 A | 75 A | 975 A |
| 3RV2041-4KA10 | 75 A | 2.181 kg | 57 ... 75 A | 75 A | 975 A |
Common to all listed parts
| Product equipment of circuit breaker for motor protection complete unit with protection device | Yes |
| product function disconnector functionality | Yes |
| product extension auxiliary switch | Yes |
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| temperature compensation | -20 ... +60 °C |
| relative humidity during operation | 10 ... 95 % |
