SIRIUS 3RV2 motor starter protectors Parts
Browse Subcategories
Compare SIRIUS 3RV2 motor starter protectors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | continuous current rated value | Net Weight | adjustable current response value current of the current-dependent overload release | operational current rated value | response value current of instantaneous short-circuit trip unit |
|---|---|---|---|---|---|
| 3RV2142-4FA10 | 40 A | 2.194 kg | 28 ... 40 A | 40 A | 520 A |

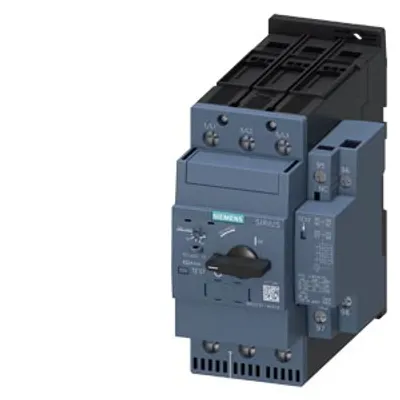

| 3RV2131-4XA10 | 59 A | 1.199 kg | 49 ... 59 A | 59 A | 845 A |
| 3RV2131-4WA10 | 52 A | 1.172 kg | 42 ... 52 A | 52 A | 741 A |
| 3RV2131-4VA10 | 45 A | 1.076 kg | 35 ... 45 A | 45 A | 650 A |
| 3RV2131-4UA10 | 40 A | 1.081 kg | 32 ... 40 A | 40 A | 585 A |

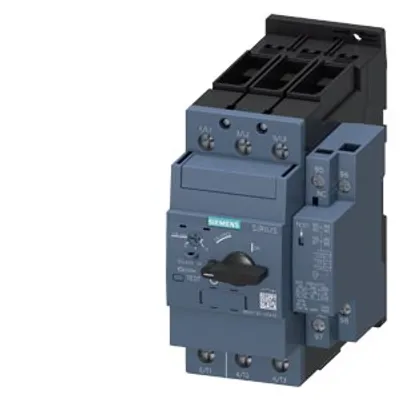

| 3RV2131-4TA10 | 17 A | 1.094 kg | 12 ... 17 A | 17 A | 260 A |
| 3RV2011-0GA15-Z W97 | 0.63 A | 269.18 g | 0.45 ... 0.63 A | 0.63 A | 8.2 A |
| 3RV2011-0GA15 | 0.63 A | 269.18 g | 0.45 ... 0.63 A | 0.63 A | 8.2 A |
| 3RV2011-0GA10-Z X95 | 0.63 A | 255.6 g | 0.45 ... 0.63 A | 0.63 A | 8.2 A |
| 3RV2011-0GA10-Z W97 | 0.63 A | 255.6 g | 0.45 ... 0.63 A | 0.63 A | 8.2 A |
| 3RV2011-0GA10-Z W96 | 0.63 A | 255.6 g | 0.45 ... 0.63 A | 0.63 A | 8.2 A |
| 3RV2011-0GA10 | 0.63 A | 255.6 g | 0.45 ... 0.63 A | 0.63 A | 8.2 A |
| 3RV2021-4CA10-Z X95 | 22 A | 335.6 g | 16 ... 22 A | 22 A | 286 A |
| 3RV2021-4CA10-Z W97 | 22 A | 335.6 g | 16 ... 22 A | 22 A | 286 A |
| 3RV2021-4CA10-Z W96 | 22 A | 335.6 g | 16 ... 22 A | 22 A | 286 A |
| 3RV2411-1BA20 | 2 A | 341.6 g | 1.4 ... 2 A | 2 A | 42 A |
| 3RV2411-0DA15 | 0.32 A | 270.18 g | 0.22 ... 0.32 A | 0.32 A | 6.5 A |
| 3RV2411-0DA10 | 0.32 A | 255.6 g | 0.22 ... 0.32 A | 0.32 A | 6.5 A |
| 3RV2411-0CA20 | 0.25 A | 274.6 g | 0.18 ... 0.25 A | 0.25 A | 5.2 A |
| 3RV2411-0CA15 | 0.25 A | 270.18 g | 0.18 ... 0.25 A | 0.25 A | 5.2 A |

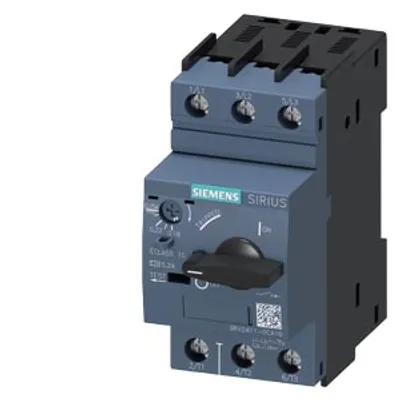

| 3RV2411-0CA10 | 0.25 A | 262.6 g | 0.18 ... 0.25 A | 0.25 A | 5.2 A |
| 3RV2411-0BA20 | 0.2 A | 0.275 kg | 0.14 ... 0.2 A | 0.2 A | 4.2 A |
| 3RV2411-0BA15 | 0.2 A | 0.268 kg | 0.14 ... 0.2 A | 0.2 A | 4.2 A |
| 3RV2021-1EA10-Z W96 | 4 A | 328.6 g | 2.8 ... 4 A | 4 A | 52 A |
Common to all listed parts
| Product equipment of circuit breaker for motor protection complete unit with protection device | Yes |
| product function disconnector functionality | Yes |
| product extension auxiliary switch | Yes |
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| temperature compensation | -20 ... +60 °C |
| relative humidity during operation | 10 ... 95 % |
