Bosch Rexroth 3842504714

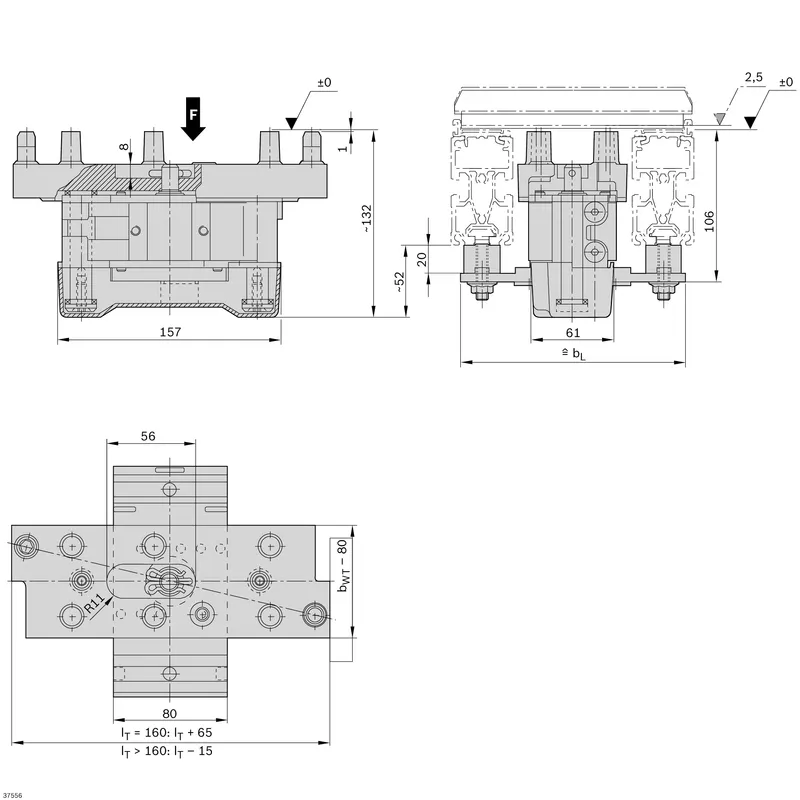

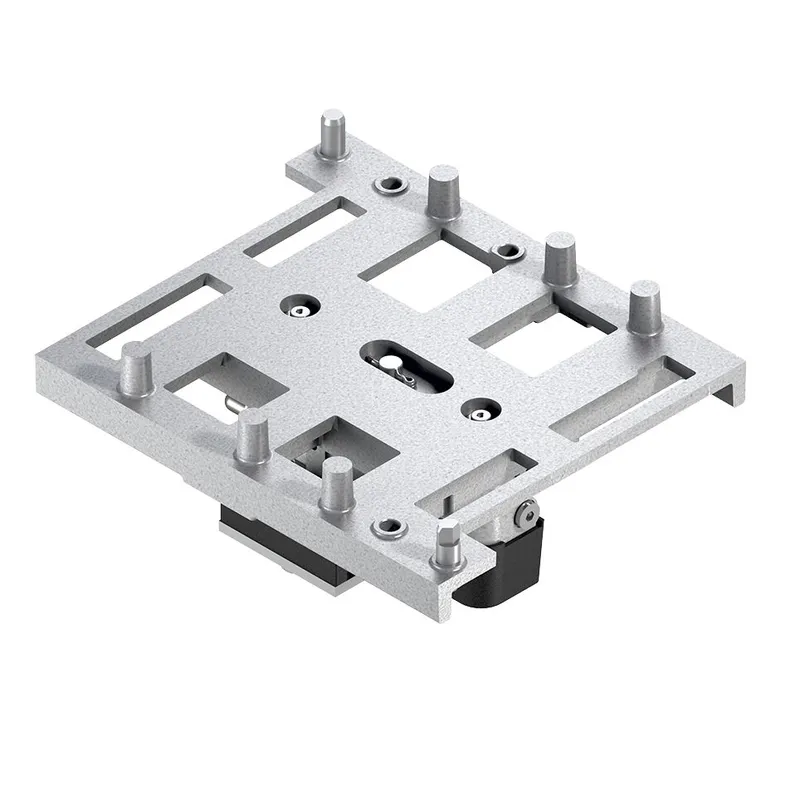

POSITIONING UNIT PE 2 LT160*B320

MPN: 3842504714
Category: Positioning units TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842504714?

PE 2 positioning unit, 320 x 160

For positioning a workpiece pallet in a manual/automatic processing station

For high repetition accuracy requirements up to ±0.1 mm

Can be combined with all WT 2 and WT 2/F workpiece pallets up to 400 x 400 mm

The sizes 160 x 160 mm to 240 x 400 mm can only be combined with WT 2/LS in the LS version. All other sizes (320 x 160 mm to 400 x 400 mm) can be combined with WT 2/LS without restrictions

Specifications

ESD	Yes
Thread size	G1/8”
required compressed air connection [pmax] [bar]	6
Track width in direction of transport [b] [mm]	320
Length in direction of transport [lT] [mm]	160
Scope of delivery	Incl. fastening material
Delivery information	Fully assembled
Notice	Can be combined with WT 2/LS, no special LS version required
required compressed air connection [pmin] [bar]	4
Workpiece pallet total weight [mG] [kg]	30
Repetition accuracy	±0,1
Permissible vertical process force [N]	300
Lift of WT over conveyor medium [h0]	2,5
Required accessories	Stop gate VE 2/...
Recommended accessories	Position sensing kit for PE 2
Weight [kg]	5.08
