POSITIONING UNIT PE 2/XP BG1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Positioning units TS 2plus |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842242350 be shipped?
3842242350 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842242350 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842242350 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842242350, subject to availability and destination.

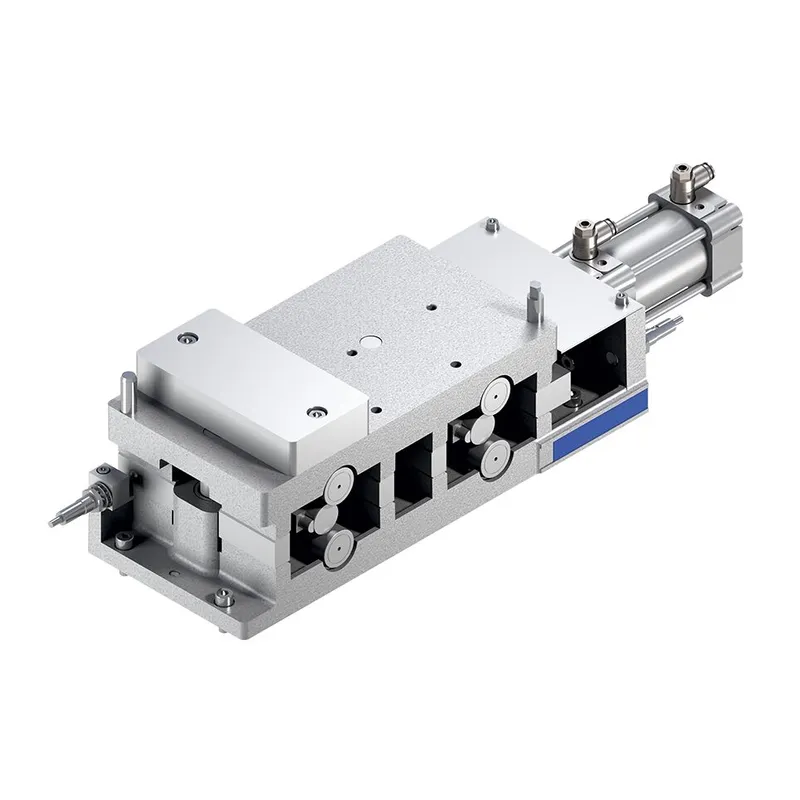

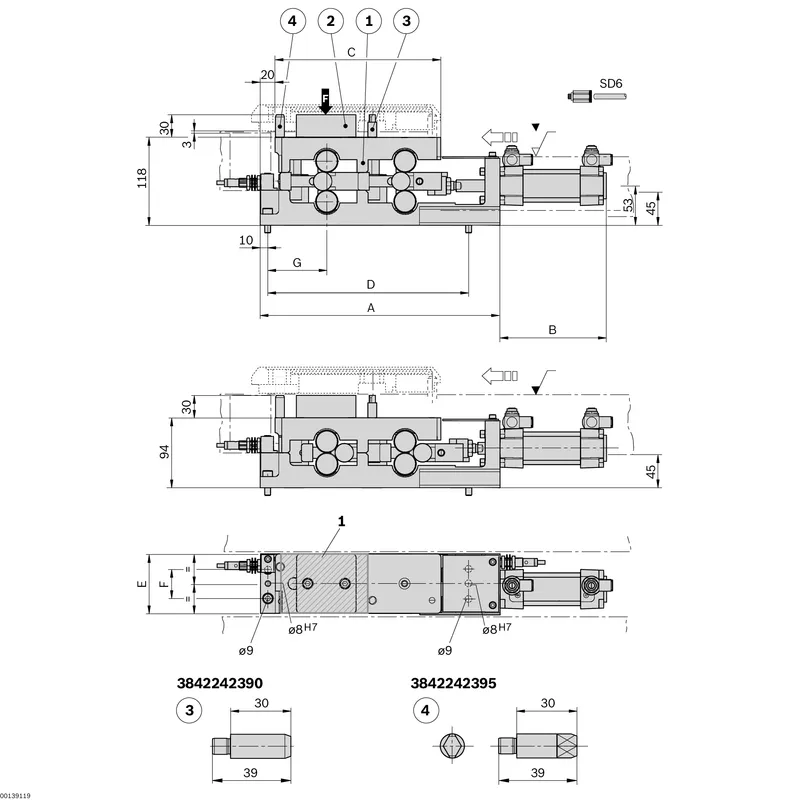

PE 2/XP BG1 positioning unit Positions a workpiece pallet in a processing station with especially high vertical process force requirements (100 kN/60 kN), such as those needed for press-fit or riveting work Mounting in force cells, positive force introduction WT lift above transportation level, approx. 3 mm Can be combined with WT 2 workpiece pallets
Specifications
Specifications
| ESD | Yes |
| Delivery information | Fully assembled |
| Workpiece pallet width [bWT] [mm] | 160 |
| Workpiece pallet total weight [mG] [kg] | 20 |
| Repetition accuracy | ±0,05 |
| Permissible vertical process force [N] | 60 |
| Lift of WT over conveyor medium [h0] | 3 |
| Length in direction of transport [lT] [mm] | 160 |
| Required accessories | Anvil plate for 320 x 240 mm workpiece pallet; Anvil plate for standard sizes from 160 x 160 mm to 320 x 240 mm; Positioning pins, round and flat-sided h = 30 mm for standard anvil plate h = 21 mm for special designs; Stop gate VE 2/…; 2x M12x70 and M12x67 sensor with rated sensing range S<sub>N</sub> = 4 mm, can be installed flush |
| Weight [kg] | 12.15 |
