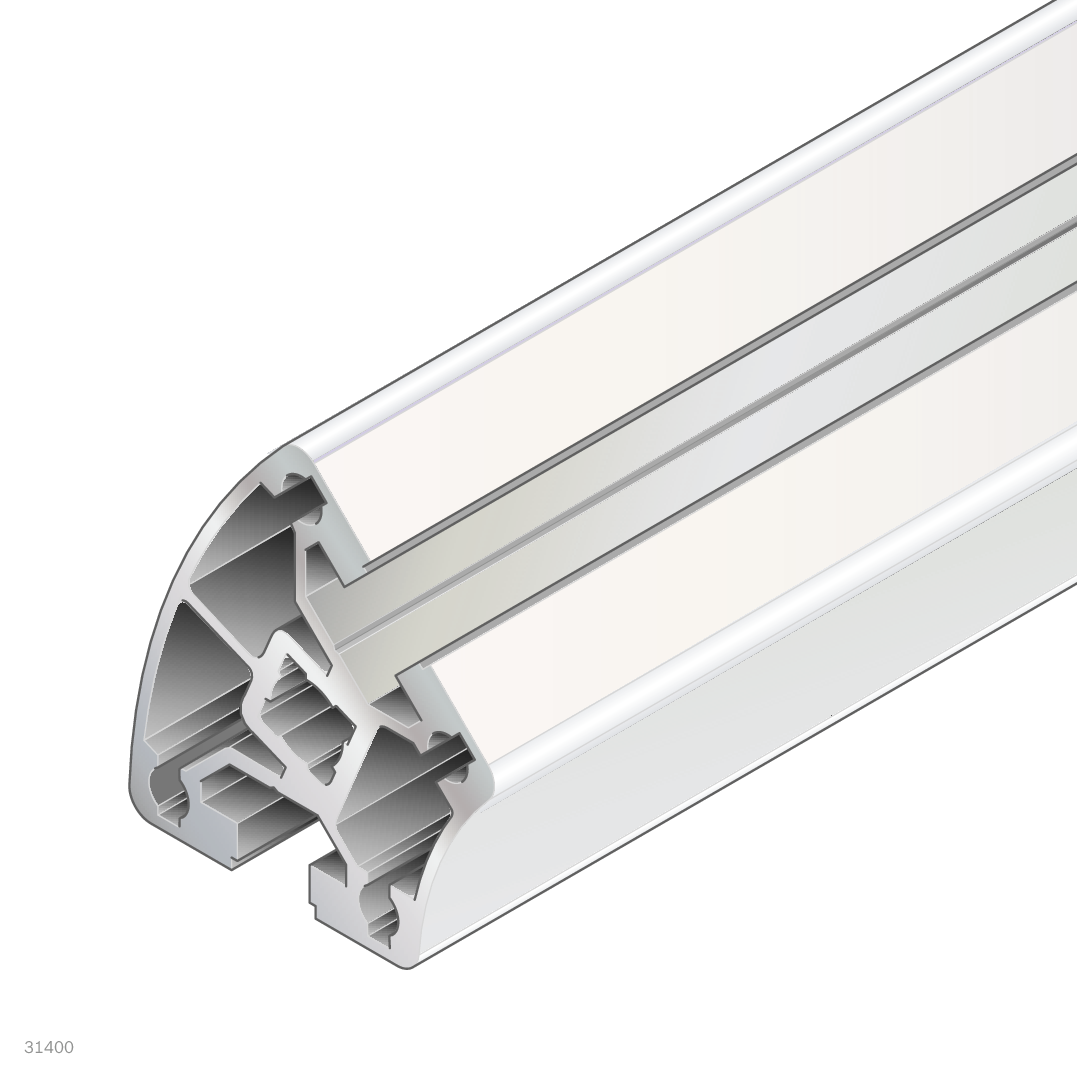

Bosch Rexroth 3842993726
STRUT PROFILE 40X45GRD Q&E
- MPN
- 3842993726
- Category
- Strut profile
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842993726?
Strut profile 40x45° Q&E
Minimum profile lengths for profile finishing: see table
Specifications
Specifications
| Condition on delivery | Profile finishing |
| Modular dimension [mm] | 40 |
| Profile slot | 10 |
| Cross-section | 40x45° |
| Open slots | 2.0 |
| Profile type | 45 degrees |
| ESD | Yes |
| Dimensions | 40x40 |
| Color | Natural |
| Length max [L max] [mm] | 6070 |
| Length min [L min] [mm] | 50 |
| Packaging unit | 1 |
| Mass [m] [kg] | 1.8 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 9.9 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 16.6 |
| Profile surface [A] [cm²] | 6.8 |
| Moment of resistance in the x-direction [Wx] [cm³] | 5 |
| Moment of resistance in the y-direction [Wy] [cm³] | 8.3 |
| Torsional moment of inertia [It] [cm⁴] | 4.2 |
| Moment of torsion resistance [Wt] [cm³] | 3.7 |
| Material | Aluminum, anodized |
| Standard profile finishing [L max] [mm] | 6000 |
| Standard profile finishing | M12 |
| Standard profile finishing minimum length | Observe minimum length |
| Recommended accessories | Cover cap 40x45°, black; Cover cap 40x45°, signal gray |
| Weight [kg] | 0 |
3842993726: frequently asked questions
When can 3842993726 be shipped?
3842993726 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842993726 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842993726 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842993726, subject to availability and destination.
