Bosch Rexroth 3842992403

STRUT PROFILE 45X45L 2N

MPN: 3842992403
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842992403?

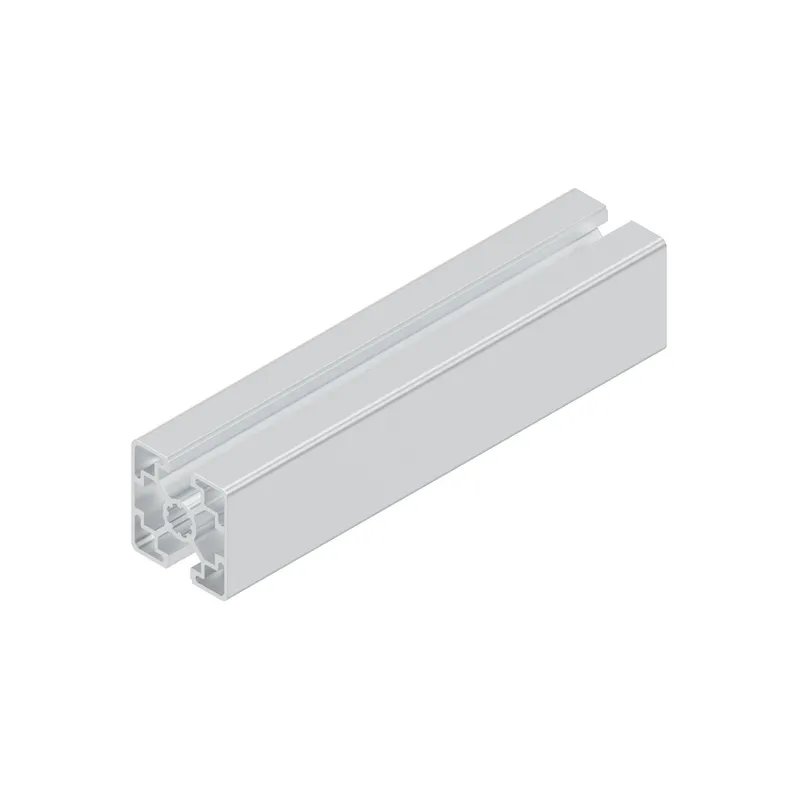

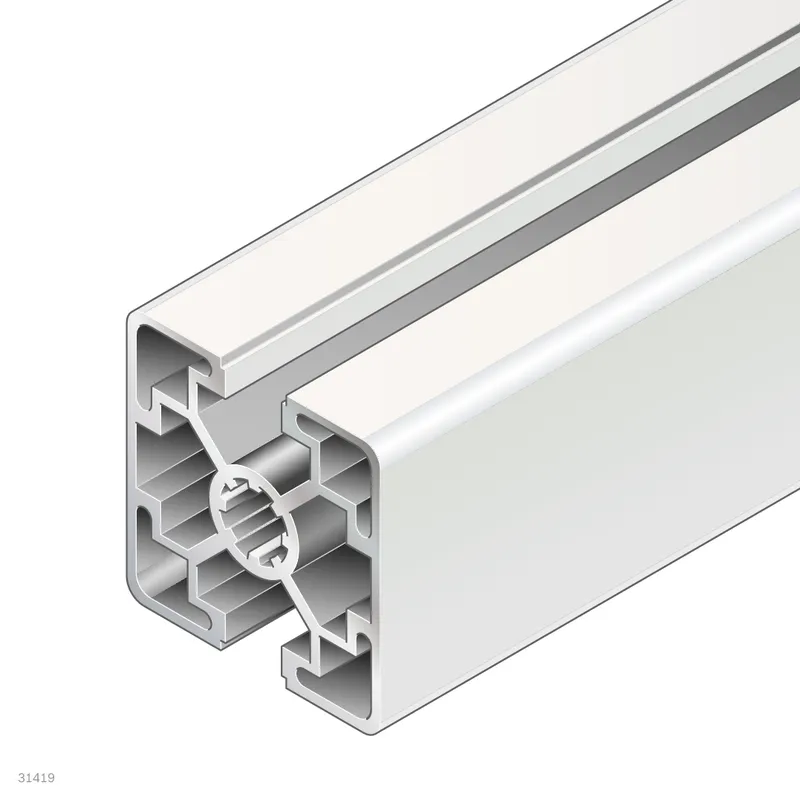

Strut profile 45x45L 2N

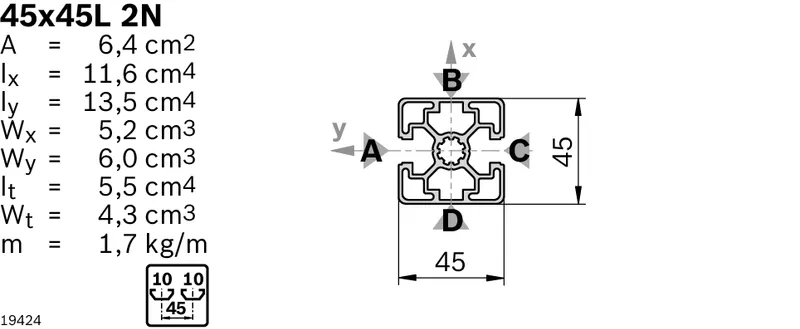

Specifications

Condition on delivery	Variable length
Cross-section	45x45L 2N
Modular dimension [mm]	45
Profile slot	10
Dimensions	45x45
Open slots	2.0
Profile type	2N
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Mass [m] [kg]	1.7
Area moment of inertia in x-direction [lx] [cm⁴]	11.6
Area moment of inertia in y-direction [ly] [cm⁴]	13.5
Profile surface [A] [cm²]	6.4
Moment of resistance in the x-direction [Wx] [cm³]	5.2
Moment of resistance in the y-direction [Wy] [cm³]	6
Torsional moment of inertia [It] [cm⁴]	5.5
Moment of torsion resistance [Wt] [cm³]	4.3
Material	Aluminum, anodized
Recommended accessories	Cap with hole 45x45, black; Cover cap 45x45, black; Cover cap 45x45, signal gray; Cover cap with hole 45x45, signal gray
Weight [kg]	0
