Bosch Rexroth 3842557233

STRUT PROFILE 45X45L 2NVS L=6170

MPN: 3842557233
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

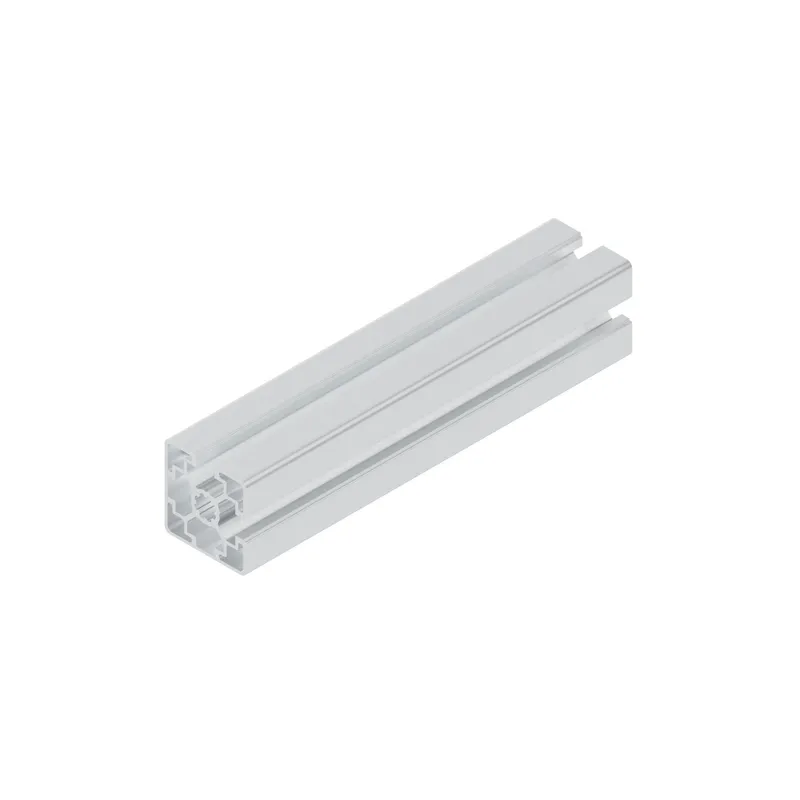

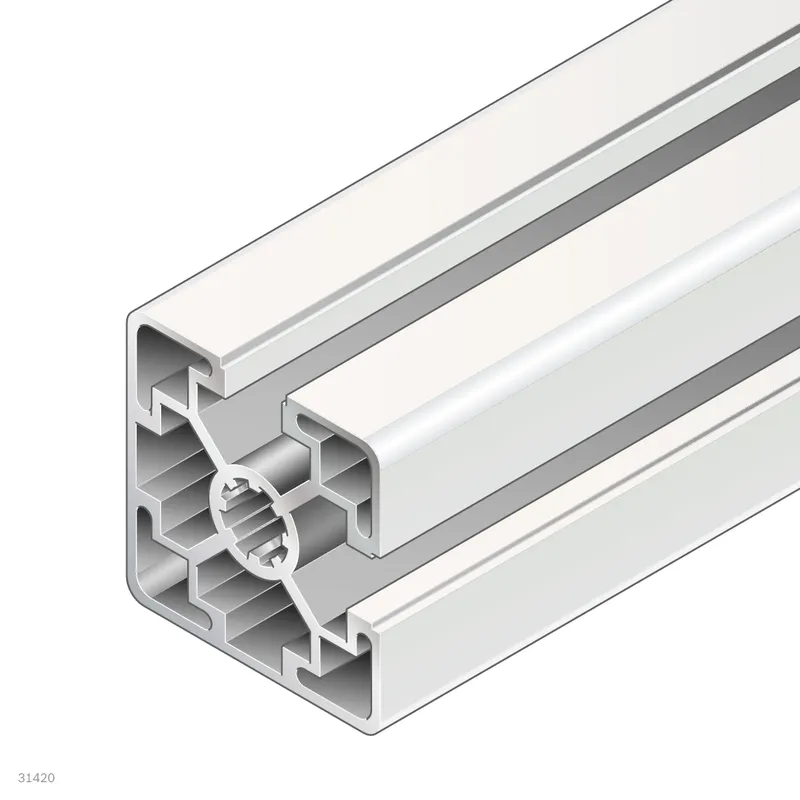

What is the Bosch Rexroth 3842557233?

Strut profile 45x45L 2NVS

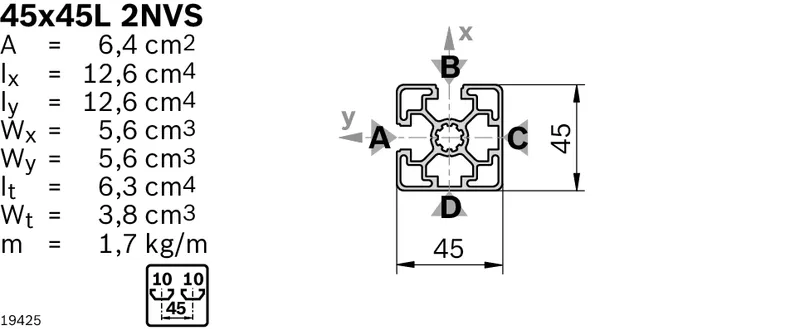

Specifications

Condition on delivery	Single rod in standard length
Cross-section	45x45L 2NVS
Modular dimension [mm]	45
Profile slot	10
Open slots	2.0
Profile type	2NVS
Dimensions	45x45
Color	Natural
Packaging unit	1
Mass [m] [kg]	1.7
Area moment of inertia in x-direction [lx] [cm⁴]	12.6
Area moment of inertia in y-direction [ly] [cm⁴]	12.6
Profile surface [A] [cm²]	6.4
Moment of resistance in the x-direction [Wx] [cm³]	5.6
Moment of resistance in the y-direction [Wy] [cm³]	5.6
Torsional moment of inertia [It] [cm⁴]	6.3
Moment of torsion resistance [Wt] [cm³]	3.8
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cap with hole 45x45, black; Cover cap 45x45, black; Cover cap 45x45, signal gray; Cover cap with hole 45x45, signal gray
Weight [kg]	10.6

3842557233: frequently asked questions

When can 3842557233 be shipped?

3842557233 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842557233 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842557233 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842557233, subject to availability and destination.
