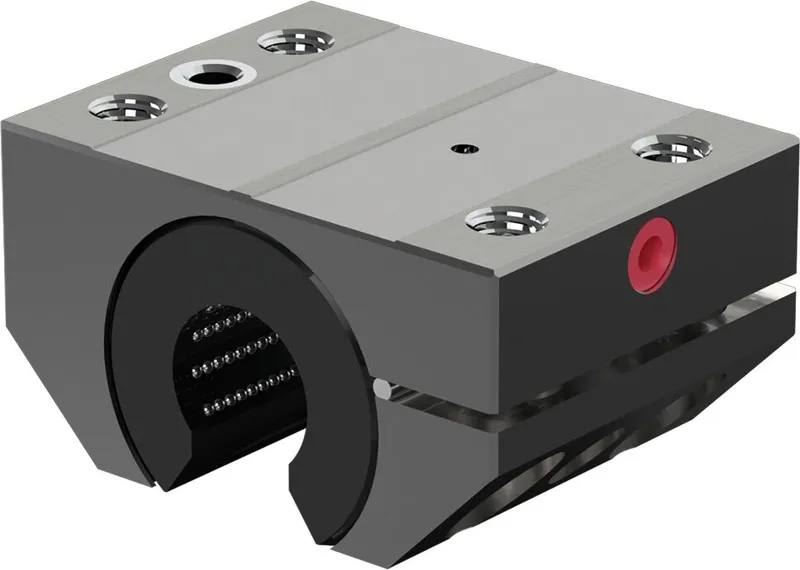

What is the Bosch Rexroth R161360000?

Linear set (steel)

With radial LB, compact, with side opening

Shaft diameter d = 60

Fully sealed

Version: Standard

Hardened and machined bearing pedestal made of rolling bearing steel

Ball retainer made of reinforced PA

Balls made of rolling bearing steel

Two retaining rings

Fully sealed (with integrated wiper seals and longitudinal seals)

Specifications

Specifications

Shaft diameter d [mm]60.0
Format of linear bushingsOE - Open, adjustable
SeriesRadial compact set
TypeLinear bushing
Dynamic load capacity C [N]29500.0
Note: dynamic load capacity CThe stated load capacities apply for the main direction of loading ρ = 0°.
Maximum acceleration rate amax [m/s²]50.0
Maximum permissible linear speed vmax [m/s]2.0
Radial clearanceComes with an h5 shaft (lower limit) and set to zero-clearance before delivery
Permissible ambient temperature (min. ... max.)-20 °C ... +100 °C
Friction coefficient μ0.001 ... 0.002
Note: friction coefficient μFriction coefficients of unsealed radial linear bushings when lubricated with oil.
Weight [kg]12.53
Static load capacity C0 [N]34100.0
Note: static load capacity C0The stated load capacities apply for the main direction of loading ρ = 0°.
Breakaway force [N]48
Product informationPlease ask for delivery time!

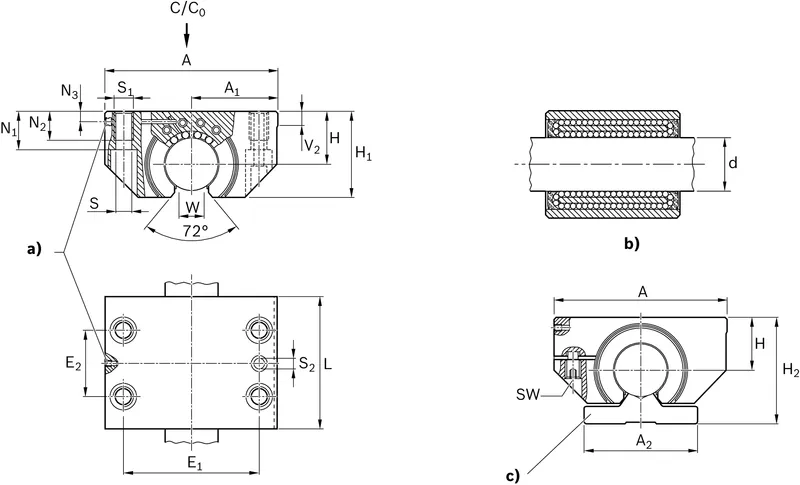

Dimension A (profiled rail systems) [mm]190
Dimension A1 (profiled rail systems) [mm]95
Dimension A1 tolerance [mm]±0.008
Dimension A2 (profiled rail systems) [mm]130
Dimension E1 [mm]150
Dimension E2 [mm]75
Dimension H [mm]60.0
Dimension H1 (profiled rail systems) [mm]97
Dimension L [mm]150
Dimension N1 (profiled rail systems) [mm]42
Dimension N2 (profiled rail systems) [mm]32
Dimension N3 (profiled rail systems) [mm]13
Dimension S [mm]22
Dimension S2 [mm]13.7
Dimension SW [mm]10
Dimension V2 [mm]16
Dimension W [mm]29
