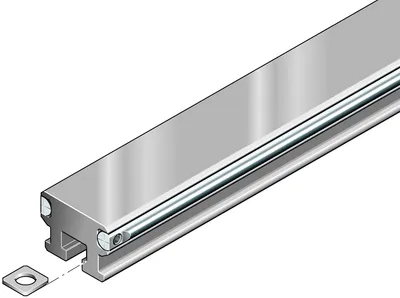

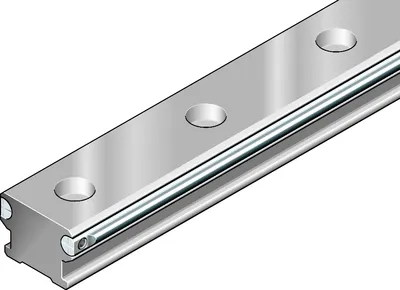

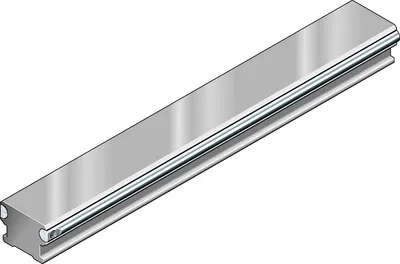

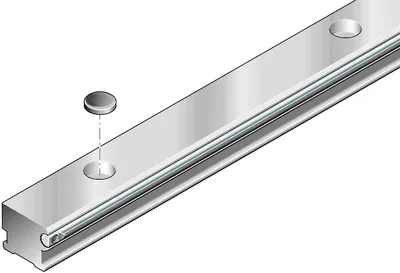

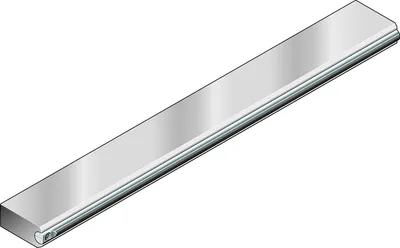

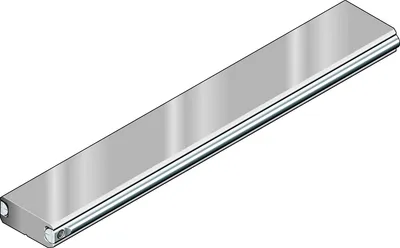

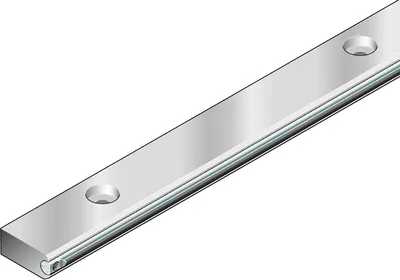

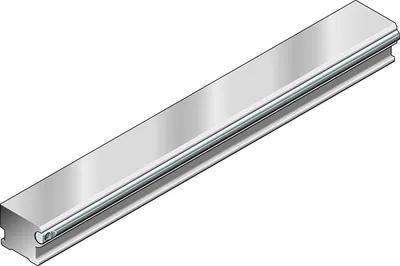

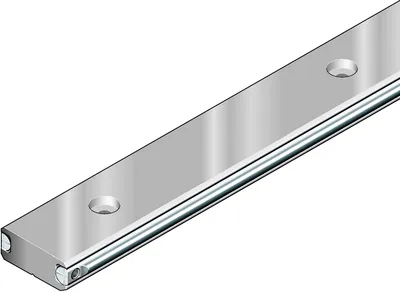

Cam roller guide rails Parts
Compare Cam roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Mass m (kg/m) [kg/m] | Dimension 2nd grade area moment, y-axis ly [mm⁴] | Dimension 2nd grade area moment, z-axis lz [mm⁴] | Dimension section modulus, y-axis Wy [mm³] | Dimension section modulus, z-axis Wz [mm³] |
|---|---|---|---|---|---|
| R192123231 | 1.6 | 14551 | 19272 | 1399 | 1357 |
| R192203231 | 1.6 | 12295 | 18666 | 1079 | 1315 |
| R192503231 | 1.3 | 13182 | 14724 | 1255 | 1115 |
| R192603231 | 0.8 | 1913 | 8841 | 383 | 665 |
| R192403231 | 1.1 | 2163 | 11412 | 433 | 804 |
| R192103231 | 1.6 | 14551 | 19272 | 1399 | 1357 |
| R192513231 | 1.3 | 13182 | 14724 | 1255 | 1115 |
| R192613231 | 0.8 | 1913 | 8841 | 383 | 665 |
| R192413231 | 1.1 | 2163 | 11412 | 433 | 804 |
| R192113231 | 1.6 | 14551 | 19272 | 1399 | 1357 |
| R192202531 | 0.95 | 4155 | 6191 | 513 | 590 |
| R192102531 | 1 | 4738 | 6432 | 623 | 613 |
| R192112531 | 1 | 4738 | 6432 | 623 | 613 |
| R192301931 | 1.1 | 8604 | 42000 | 782 | 2545 |
| R192101931 | 0.6 | 2060 | 3090 | 343 | 364 |
| R192311931 | 1.1 | 8604 | 42000 | 782 | 2545 |
| R192111931 | 0.6 | 2060 | 3090 | 343 | 364 |
Common to all listed parts
| Version | Cam roller guide |
| Note: maximum length Lmax | Guide tracks up to 3500 mm are made of one-piece precision steel shafts. |
| Operating temperature (min. … max.) | -20 °C ... +80 °C |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n• T‒ 4 mm |
| Maximum operating temperature [°C] | +80 |
| Minimum operating temperature [°C] | -20 |
| Dimension L [mm] | 3500 |
