Bosch Rexroth R192301931

CAM ROLLER RAIL 20-0 U &

MPN: R192301931
Category: Cam roller guide rails

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

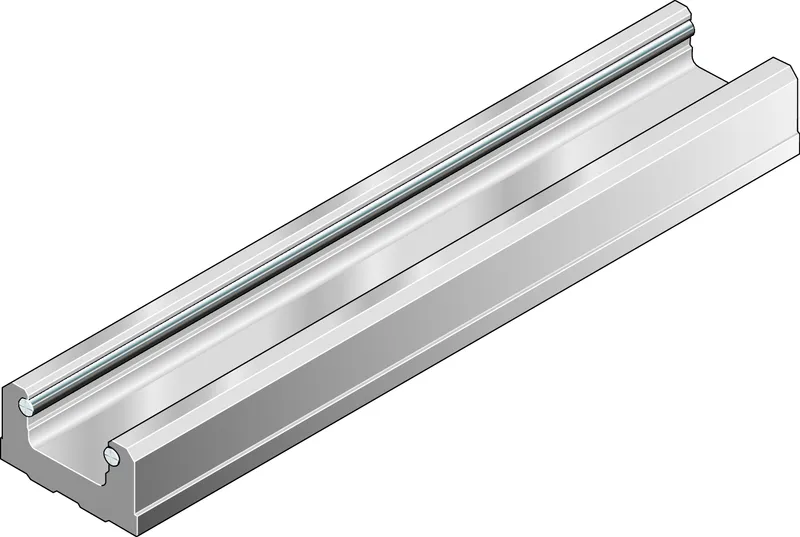

What is the Bosch Rexroth R192301931?

The cam roller guide rail is characterized by the following product features:

Size 20

Format UNH: Width = U-type, length = standard, height = high

Guide rails made of aluminum with secured shafts made of corrosion-resistant steel

Fastener 00: Without

Cover 00: Without cover

No bores

Number of partial sections: one-piece

Rail in standard version

For mounting from above

With shafts made of corrosion-resistant steel according to DIN EN ISO 683-17 / EN 10088

Specifications

Version	Cam roller guide
Nominal size [mm]	20
Material (profiled rail systems)	Aluminum profile and corrosion-resistant steel shafts
Guide rail mounting	For bolting from above
Note: maximum length Lmax	Guide tracks up to 3500 mm are made of one-piece precision steel shafts.
Operating temperature (min. … max.)	-20 °C ... +80 °C
Mass m (kg/m) [kg/m]	1.1
Weight [kg]	0
Recommended rail length (formula)	L = n• T‒ 4 mm
Maximum operating temperature [°C]	+80
Minimum operating temperature [°C]	-20
Pitch T guide rail [mm]	62.5

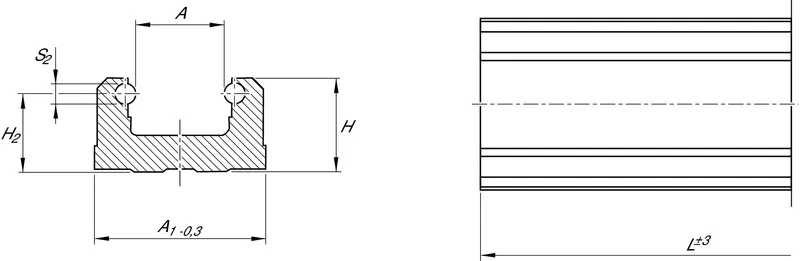

Dimension A (profiled rail systems) [mm]	17
Dimension A1 (profiled rail systems) [mm]	33
Dimension D [mm]	9.4
Dimension 2nd grade area moment, y-axis ly [mm⁴]	8604
Dimension 2nd grade area moment, z-axis lz [mm⁴]	42000
Dimension H [mm]	18.0
Dimension H1 (profiled rail systems) [mm]	3.4
Dimension H2 (profiled rail systems) [mm]	15
Dimension L [mm]	3500
Dimension S1 (profiled rail systems) [mm]	4
Dimension S2 [mm]	6
Dimension S2 (profiled rail systems)	6 mm
Dimension T [mm]	62.5
Dimension T1 min [mm]	13
Dimension T1 s (profiled rail systems) [mm]	29.25
Dimension section modulus, y-axis Wy [mm³]	782
Dimension section modulus, z-axis Wz [mm³]	2545
Footnote Dimension L	Up to 3500 mm, the guideways are made from one-piece precision steel shafts
