CAM ROLLER RAIL 25-0 N &
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cam roller guide rails |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R192202531 be shipped?
R192202531 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R192202531 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R192202531 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R192202531, subject to availability and destination.

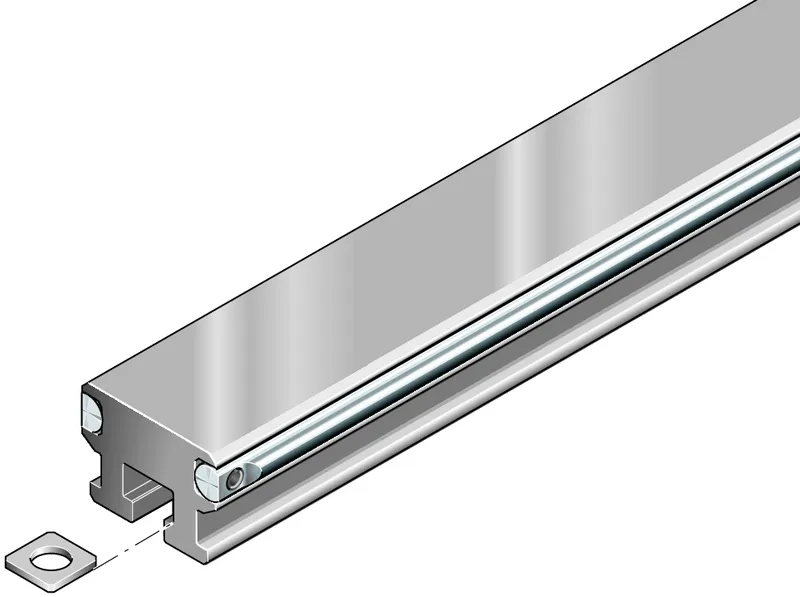

The cam roller guide rail is characterized by the following product features:
Size 25
Format SNT: Width = slimline, length = standard, height = T-slot
Guide rails made of aluminum with secured shafts made of corrosion-resistant steel
Fastener MB: Bolting from below
Cover 00: Without cover
No bores
Number of partial sections: one-piece
Rail in standard version
For mounting from above
The washers are also included (number is determined by the hole spacing T)
With secured shafts made of corrosion-resistant steel according to DIN EN ISO 683-17 / EN 10088
Specifications
Specifications
| Version | Cam roller guide |
| Nominal size [mm] | 25 |
| Material (profiled rail systems) | Aluminum profile and corrosion-resistant steel shafts |
| Guide rail mounting | For bolting from below |
| Note: maximum length Lmax | Guide tracks up to 3500 mm are made of one-piece precision steel shafts. |
| Operating temperature (min. … max.) | -20 °C ... +80 °C |
| Mass m (kg/m) [kg/m] | 0.95 |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n• T‒ 4 mm |
| Maximum operating temperature [°C] | +80 |
| Minimum operating temperature [°C] | -20 |
| Pitch T guide rail [mm] | 62.5 |

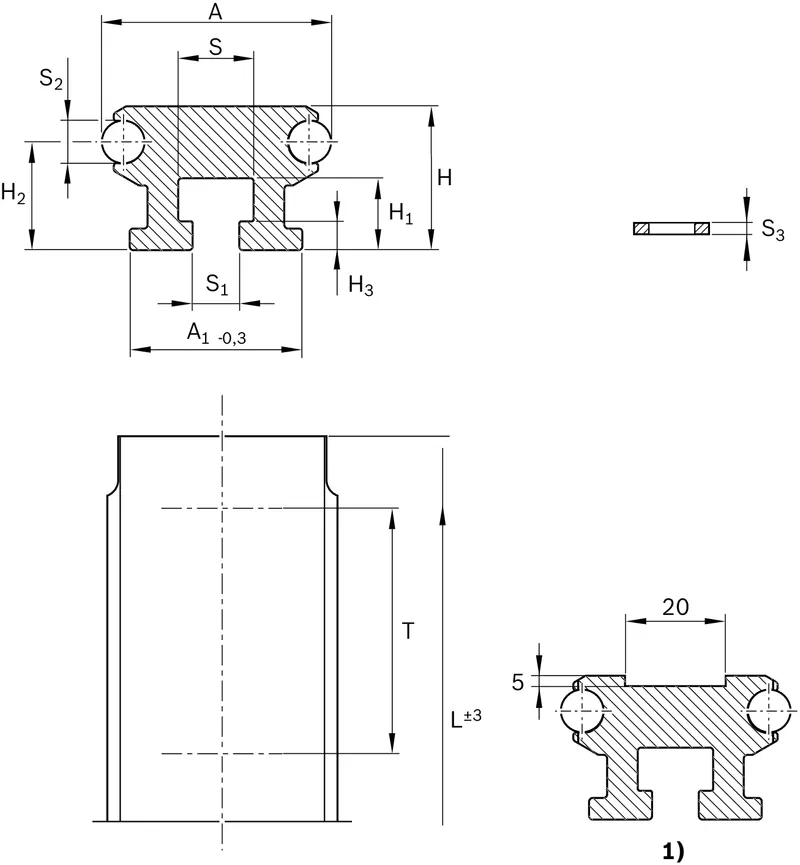

| Dimension A (profiled rail systems) [mm] | 25 |
| Dimension A1 (profiled rail systems) [mm] | 21 |
| Dimension 2nd grade area moment, y-axis ly [mm⁴] | 4155 |
| Dimension 2nd grade area moment, z-axis lz [mm⁴] | 6191 |
| Dimension H [mm] | 15.0 |
| Dimension H1 (profiled rail systems) [mm] | 8 |
| Dimension H2 (profiled rail systems) [mm] | 10.6 |
| Dimension L [mm] | 3500 |
| Dimension S [mm] | 8.2 |
| Dimension S1 (profiled rail systems) [mm] | 5.5 |
| Dimension S2 [mm] | 6 |
| Dimension S3 [mm] | 1 |
| Dimension T [mm] | 62.5 |
| Dimension section modulus, y-axis Wy [mm³] | 513 |
| Dimension section modulus, z-axis Wz [mm³] | 590 |
| Footnote Dimension L | Up to 3500 mm, the guideways are made from one-piece precision steel shafts |
| Note of Dimension T | T = maximum distance of the fastening screws |
More Bosch Rexroth parts
Available on requestCAM ROLLER RAIL 52 &

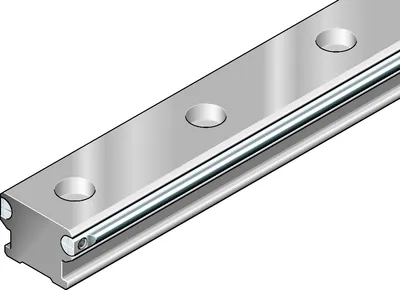

Available on requestCAM ROLLER RAIL 32-2 &
Available on requestCAM ROLLER RAIL 52-2 &
Available on requestCAM ROLLER RAIL 52-4 &

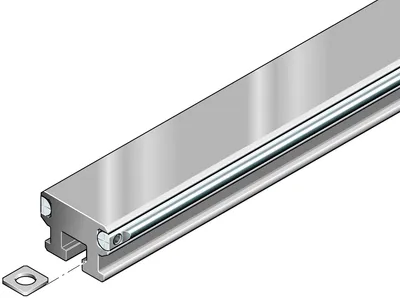

Available on requestCAM ROLLER RAIL 32-0 N &
Available on requestCAM ROLLER RAIL 52-0 N &

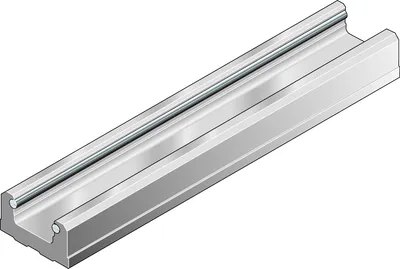

Available on requestCAM ROLLER RAIL 20-0 U &

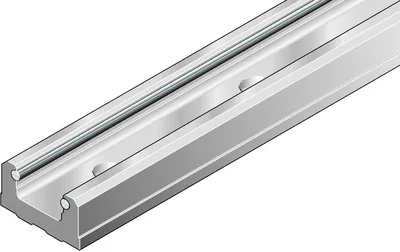

Available on requestCAM ROLLER RAIL 20 U &
