Bosch Rexroth R192203231

CAM ROLLER RAIL 32-0 N &

MPN: R192203231
Category: Cam roller guide rails

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

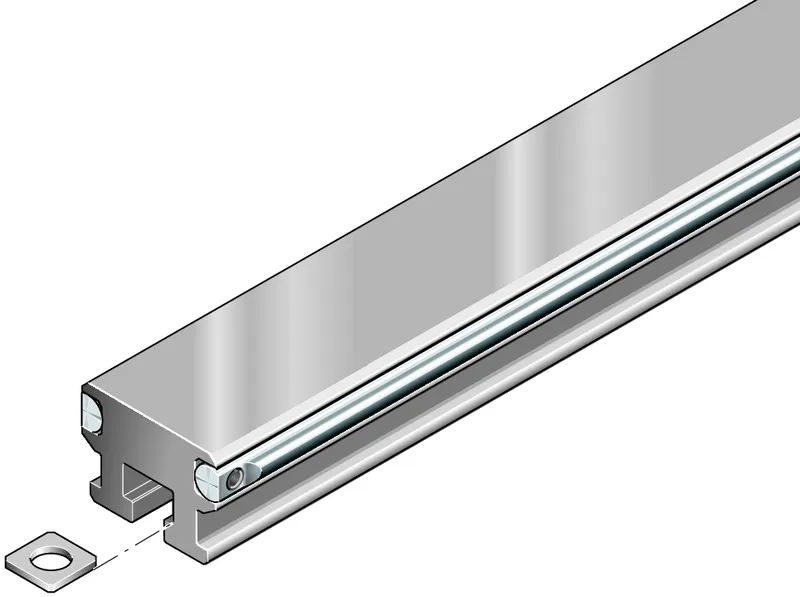

What is the Bosch Rexroth R192203231?

The cam roller guide rail is characterized by the following product features:

Size 32

Format SNT: Width = slimline, length = standard, height = T-slot

Guide rails made of aluminum with secured shafts made of corrosion-resistant steel

Fastener MB: Bolting from below

Cover 00: Without cover

No bores

Number of partial sections: one-piece

Rail in standard version

For mounting from above

The washers are also included (number is determined by the hole spacing T)

With secured shafts made of corrosion-resistant steel according to DIN EN ISO 683-17 / EN 10088

Specifications

Version	Cam roller guide
Nominal size [mm]	32
Material (profiled rail systems)	Aluminum profile and corrosion-resistant steel shafts
Guide rail mounting	For bolting from below
Note: maximum length Lmax	Guide tracks up to 3500 mm are made of one-piece precision steel shafts.
Operating temperature (min. … max.)	-20 °C ... +80 °C
Mass m (kg/m) [kg/m]	1.6
Weight [kg]	0
Recommended rail length (formula)	L = n• T‒ 4 mm
Maximum operating temperature [°C]	+80
Minimum operating temperature [°C]	-20
Pitch T guide rail [mm]	125

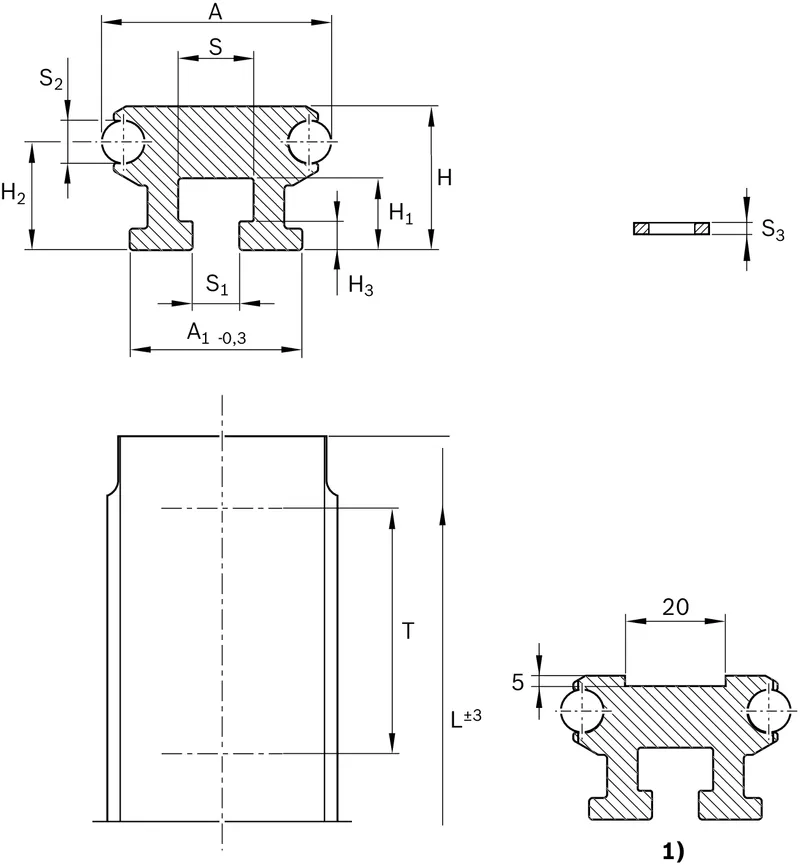

Dimension A (profiled rail systems) [mm]	32
Dimension A1 (profiled rail systems) [mm]	24
Dimension 2nd grade area moment, y-axis ly [mm⁴]	12295
Dimension 2nd grade area moment, z-axis lz [mm⁴]	18666
Dimension H [mm]	20.0
Dimension H1 (profiled rail systems) [mm]	10
Dimension H2 (profiled rail systems) [mm]	15
Dimension L [mm]	3500
Dimension S [mm]	10.5
Dimension S1 (profiled rail systems) [mm]	6.5
Dimension S2 [mm]	6
Dimension S3 [mm]	1.6
Dimension T [mm]	125
Dimension section modulus, y-axis Wy [mm³]	1079
Dimension section modulus, z-axis Wz [mm³]	1315
Footnote Dimension L	Up to 3500 mm, the guideways are made from one-piece precision steel shafts
Note of Dimension T	T = maximum distance of the fastening screws
