CAM ROLLER RAIL 25 &

Name: Bosch Rexroth R192112531 – CAM ROLLER RAIL 25 &
Brand: Bosch Rexroth
SKU: R192112531

MPN: R192112531 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Cam roller guide rails
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R192112531 be shipped?

R192112531 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R192112531 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R192112531 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R192112531, subject to availability and destination.

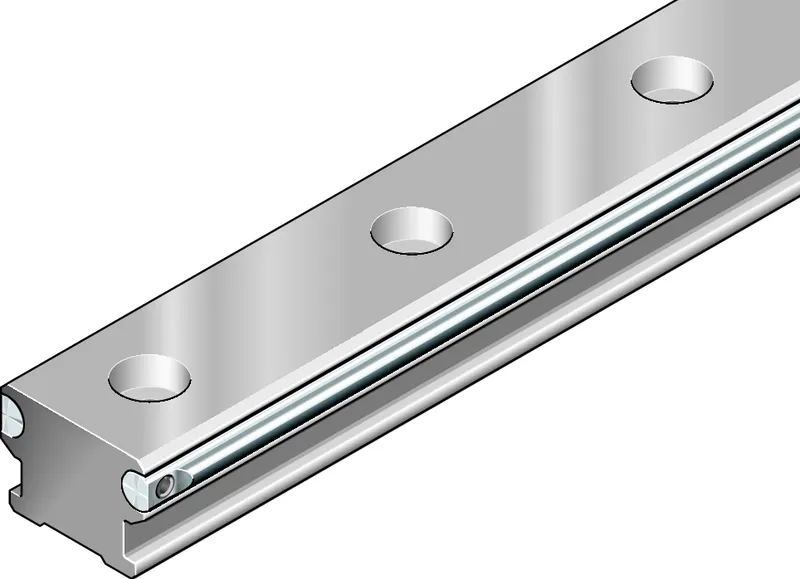

The cam roller guide rail is characterized by the following product features:

Size 25

Format SNS: Width = slimline, length = normal, height = standard

Guide rails made of aluminum with secured shafts made of corrosion-resistant steel

Fastener MA: Bolting from above

Cover 00: Without cover

Standard number of bores

Number of partial sections: one-piece

Rail in standard version

For mounting from above

Optional mounting hole plugs

With secured shafts made of corrosion-resistant steel according to DIN EN ISO 683-17 / EN 10088

Rail body made of aluminum (anodized)

Secured guide tracks made of corrosion-resistant precision steel shafts

Specifications

Version	Cam roller guide
Nominal size [mm]	25
Material (profiled rail systems)	Aluminum profile and corrosion-resistant steel shafts
Guide rail mounting	For bolting from above
Note: maximum length Lmax	Guide tracks up to 3500 mm are made of one-piece precision steel shafts.
Operating temperature (min. … max.)	-20 °C ... +80 °C
Mass m (kg/m) [kg/m]	1
Weight [kg]	0
Recommended rail length (formula)	L = n• T‒ 4 mm
Maximum operating temperature [°C]	+80
Minimum operating temperature [°C]	-20
Pitch T guide rail [mm]	62.5

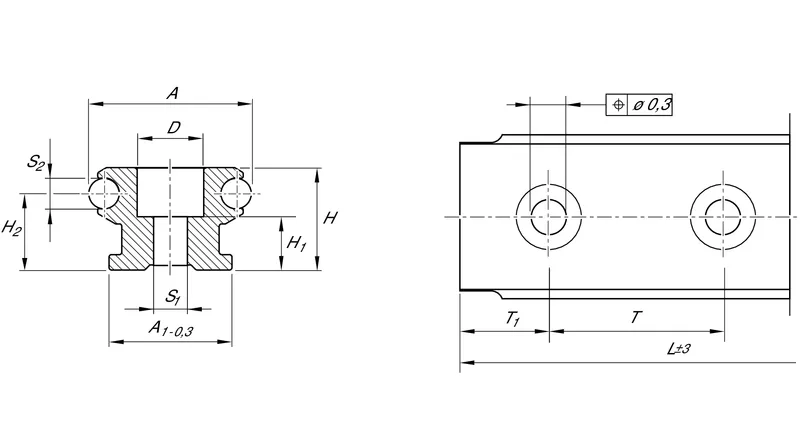

Dimension A (profiled rail systems) [mm]	25
Dimension A1 (profiled rail systems) [mm]	21
Dimension D [mm]	9.4
Dimension 2nd grade area moment, y-axis ly [mm⁴]	4738
Dimension 2nd grade area moment, z-axis lz [mm⁴]	6432
Dimension H [mm]	15.0
Dimension H1 (profiled rail systems) [mm]	6
Dimension H2 (profiled rail systems) [mm]	10.6
Dimension L [mm]	3500
Dimension S1 (profiled rail systems) [mm]	5.5
Dimension S2 [mm]	6
Dimension T [mm]	62.5
Dimension T1 min [mm]	13
Dimension T1 s (profiled rail systems) [mm]	29.25
Dimension section modulus, y-axis Wy [mm³]	623
Dimension section modulus, z-axis Wz [mm³]	613
Footnote Dimension L	Up to 3500 mm, the guideways are made from one-piece precision steel shafts
